Открытый узел

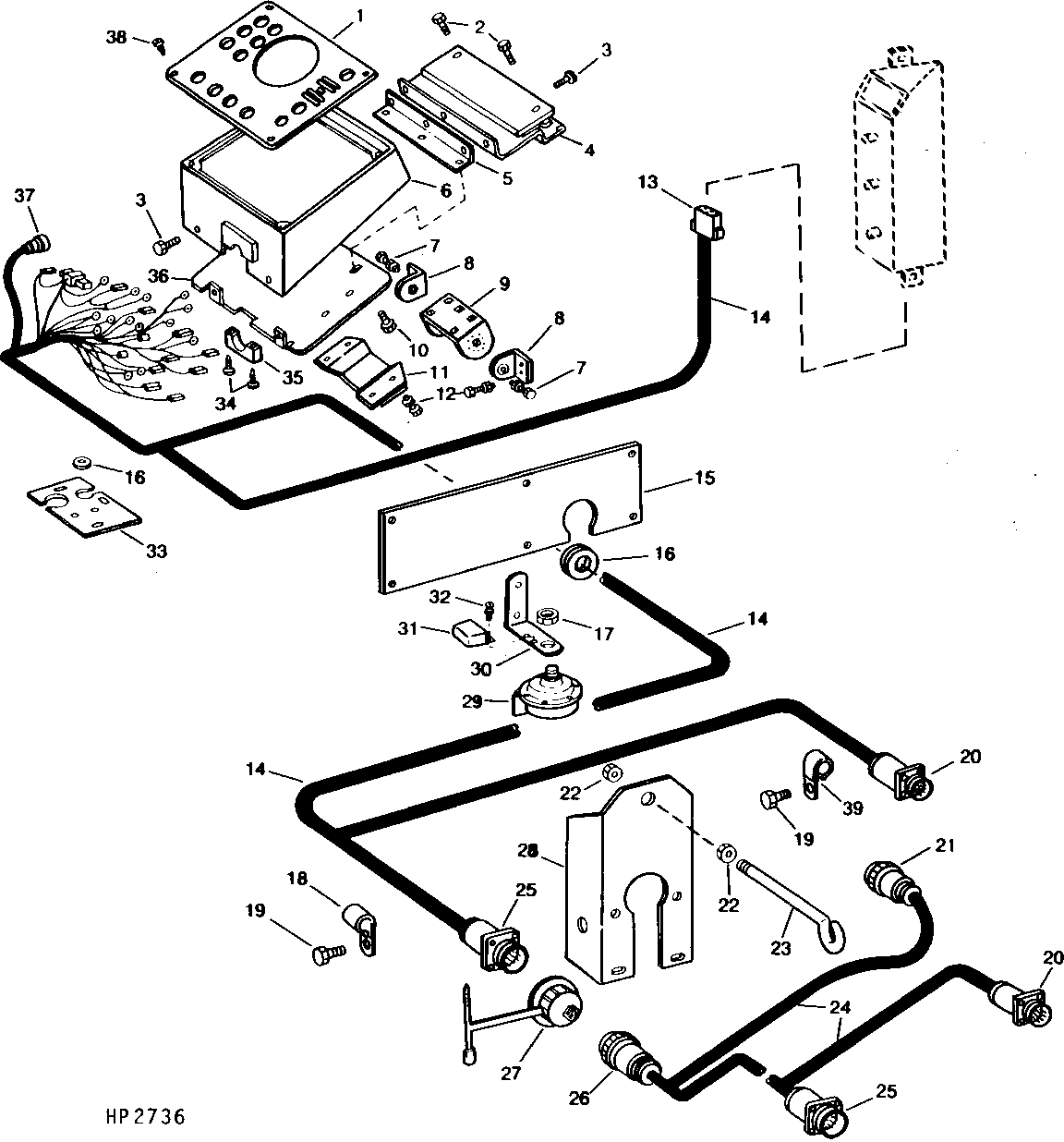

Control Box Housing, Mounting Brackets and Harness (Dial-A-Matic) (600001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H115156	1	Plate	-
2	R54057	2	Screw	-
3	37H148	5	Screw	1/4" X 5/8"
4	AR87457	1	Adapter Fitting	(SOUND-GARD CAB)
5	R67211	1	Bracket	-
6	H99925	1	Housing	-
7	19H1936	2	Cap Screw	3/8" X 3/4"
7	12H310	2	Lock Washer	3/8"
7	AR41950	1	NUT	-
8	R41879	2	BRACKET	(PRE-SOUND-GARD CABS, 1968-1971)
9	R41880	1	BRACKET	(PRE-SOUND-GARD-CABS, 1968-1971)
10	37H148	2	Screw	1/4" X 5/8"
11	R67215	1	PLATE	(4-WHEEL DRIVE - 8430, 8440, 8630 AND 8640)
12	14H786	8	Nut	1/4"
12	12H297	8	Lock Washer	1/4"
12	19H1227	8	Cap Screw	1/4" X 1/2"
13	H118420	1	Socket	-
13	R77469	2	Elec. Connector Terminal	(PKG. OF 5)
14	AH112736	1	Wiring Harness	-
15	H115317	1	Cover	-
16	H80627	2	Grommet	-
17	R11278	1	Nut	-
18	AH89557	1	Clip	-
19	H29322	2	Screw	-
20	H118428	2	Electrical Connector Assy	7 HOLES
20	RE11156	1	Elec. Connector Terminal	(PKG. OF 3)
21	RE11157	1	Elec. Connector Terminal	(PKG. OF 3)
21	R77458	1	Elec.Connect Locking Device	-
21	H118421	1	Elec. Connector Terminal	7 HOLES
22	14H812	2	NUT	3/8"
23	H101317	1	Eyebolt	-
24	AH112737	1	Wiring Harness	-
25	R77456	2	Elec. Connector Terminal	37 HOLES
25	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
26	R77457	1	Elec. Connector Terminal	37 HOLES
26	R77458	1	Elec.Connect Locking Device	-
26	R77465	1	Elec. Connector Terminal	(PKG. OF 50)
27	A32905	2	Cap	-
28	H101161	1	Bracket	-
29	AT39043	1	High Note Horn	-
30	H94337	1	Bracket	-
31	AH62341	1	RELAY	-
32	19H1227	2	Cap Screw	1/4" X 1/2"
32	12H302	2	Lock Washer	1/4"
32	14H786	2	Nut	1/4"
33	H96678	1	Plate	-
34	A36895	2	Screw	-
35	R67452	1	Cover	-
36	R67210	1	Base	-
37	H118422	1	Elec. Connector Terminal	9 HOLES
37	R77460	1	Elec.Connect Locking Device	RETAINER
37	R77465	1	Elec. Connector Terminal	(PKG. OF 50)
38	37H153	4	Screw	0.190" X 3/8"
39	AH90990	1	Clip	-

Control Box Housing, Mounting Brackets and Harness (Dial-A-Matic) (600001 - )

Нет текстового описания
