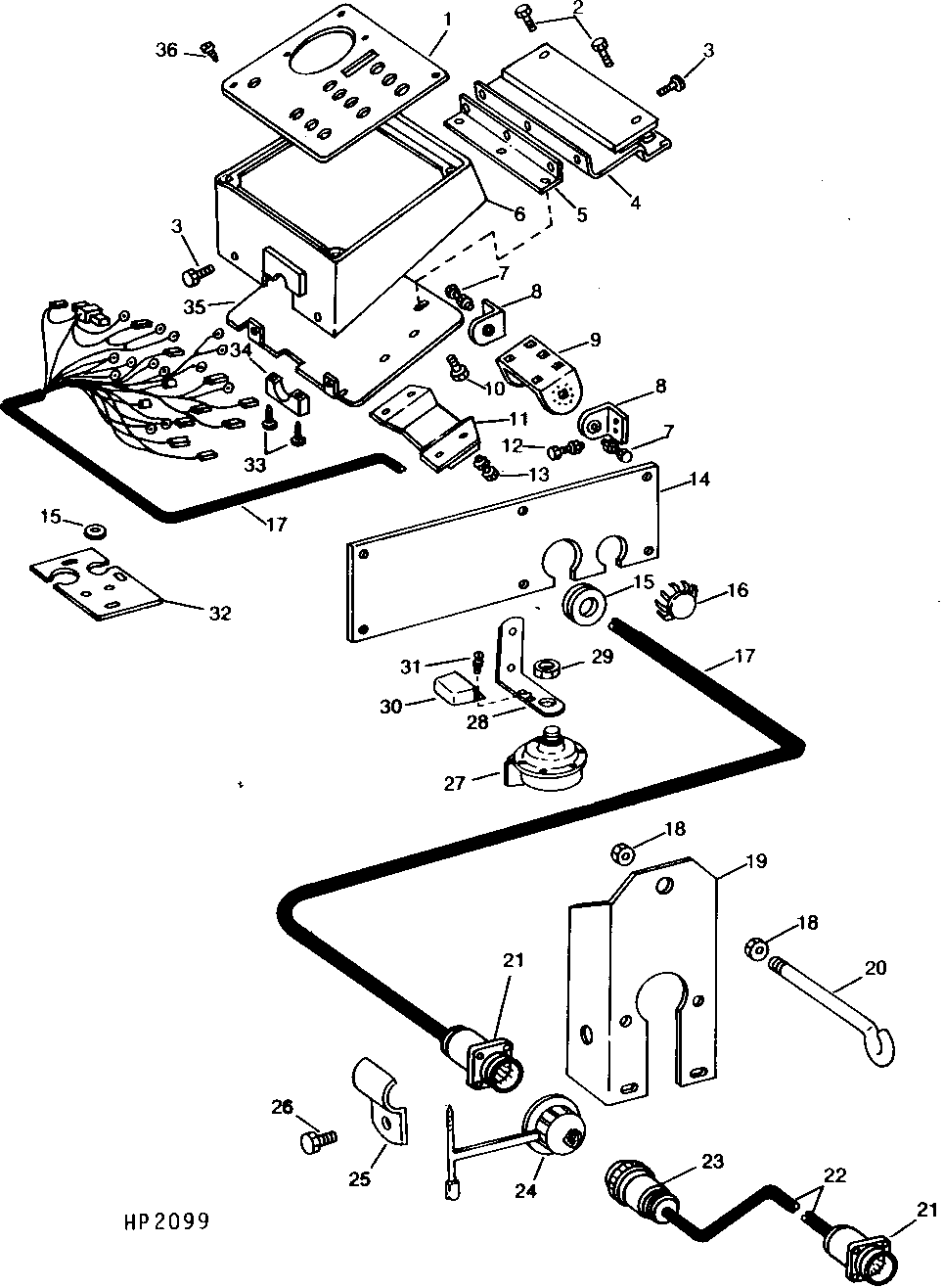

CONTROL BOX HOUSING, MOUNTING BRACKETS, AND HARNESS ( - 600000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H102597	1	Plate	-
2	R54057	2	Screw	-
3	37H148	5	Screw	1/4" X 5/8"
4	AR87457	1	Adapter Fitting	(SOUND GARD CAB)
5	R67211	1	Bracket	-
6	H99925	1	Housing	-
7	19H1936	2	Cap Screw	3/8" X 3/4"
7	12H310	2	Lock Washer	3/8"
7	AR41950	1	NUT	-
8	R41879	2	BRACKET	(PRE-SOUND GARD CABS--1968-1971)
9	R41880	1	BRACKET	(PRE-SOUND GARD CABS--1968-1971)
10	37H148	2	Screw	1/4" X 5/8"
11	R67215	1	PLATE	(4 WHEEL DRIVE-8430, 8440, 8630, 8640)
12	19H1227	4	Cap Screw	1/4" X 1/2"
12	14H786	4	Nut	1/4"
12	12H297	4	Lock Washer	1/4"
13	19H1227	4	Cap Screw	1/4" X 1/2"
13	12H297	4	Lock Washer	1/4"
13	14H786	4	Nut	1/4"
14	H96604	1	COVER	-
15	H80627	1	Grommet	-
16	M42230	1	PLUG	-
17	AH102689	1	Wiring Harness	-
18	14H812	2	NUT	3/8"
19	H101161	1	Bracket	-
20	H101317	1	Eyebolt	-
21	H118425	2	Electrical Connector Assy	22 HOLES
21	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
21	RE11156	1	Elec. Connector Terminal	(PKG. OF 3)
22	AH102690	1	Wiring Harness	(4 WHEEL DRIVE-8430, 8440, 8630, 8640)
23	H118427	1	Electrical Connector Assy	22 HOLES
23	R77458	1	Elec.Connect Locking Device	-
23	R77465	1	Elec. Connector Terminal	(PKG. OF 50)
23	RE11157	1	Elec. Connector Terminal	(PKG. OF 3)
24	A32905	1	Cap	-
25	R41465	1	Clamp	-
26	H29322	1	Screw	-
27	AT39043	1	High Note Horn	(LOW NOTE)
28	H94337	1	Bracket	-
29	R11278	1	Nut	-
30	AH62341	1	RELAY	-
31	19H1227	2	Cap Screw	1/4" X 1/2"
31	12H302	2	Lock Washer	1/4"
31	14H786	2	Nut	1/4"
32	H96678	1	Plate	-
33	A36895	1	Screw	SELF-TAPPING
34	R67452	1	Cover	-
35	R67210	1	Base	-
36	37H153	4	Screw	0.190" X 3/8"

CONTROL BOX HOUSING, MOUNTING BRACKETS, AND HARNESS ( - 600000)
