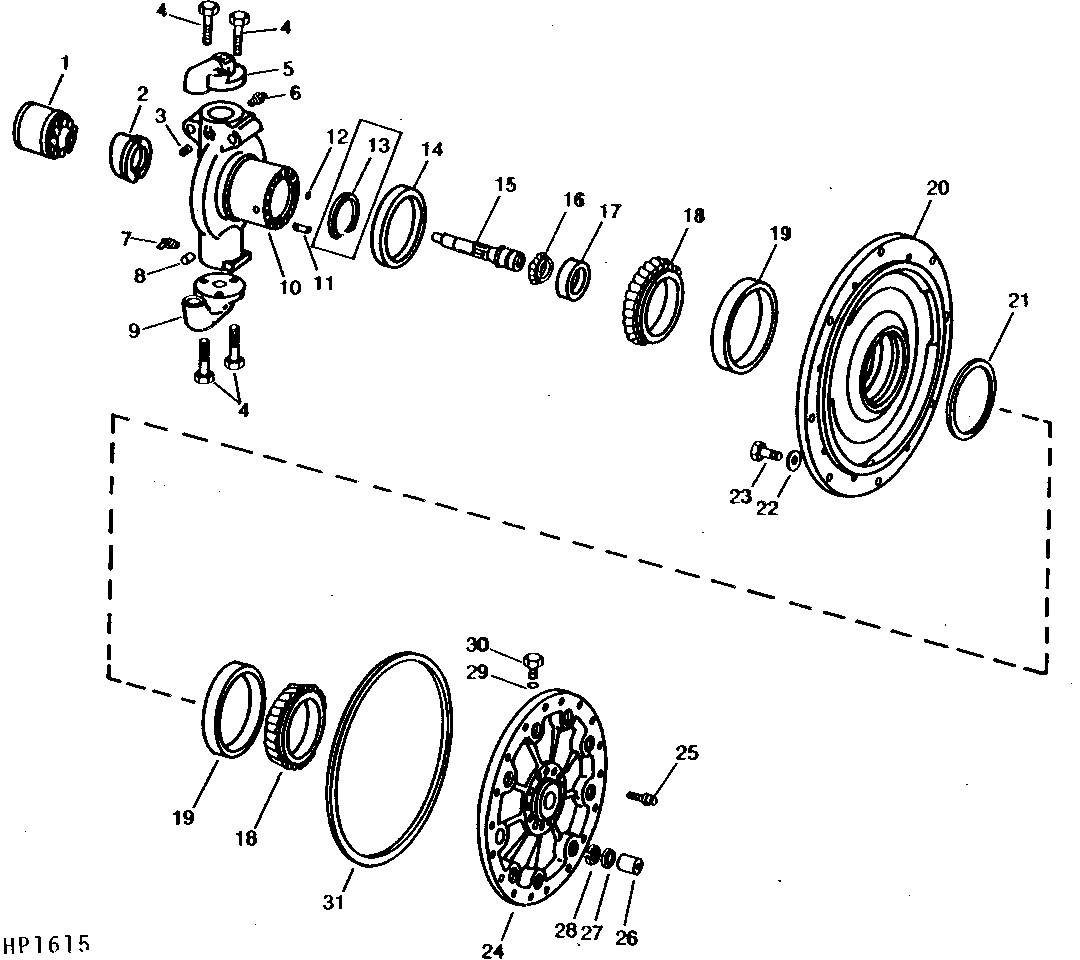

Wheel Hub, Motor and Housing, 4WD Planetary Gearing

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR73212	1	CYLINDER BLOCK	-
2	R42817	1	SWASH PLATE	-
2	R68180	1	SWASH PLATE	-
3	15H558	1	Pipe Plug	1/8"
4	19H1732	2	Cap Screw	3/8" X 1-1/4"
4	19H1726	4	Cap Screw	3/8" X 2-1/4"
5	R42885	2	COVER	(LOWER RH AND UPPER LH)
6	JD7759	1	Lubrication Fitting	1/8", STRAIGHT
7	JD7781	1	Lubrication Fitting	90°, 1/8"
8	R42881	1	Dowel Pin	-
8	R68177	1	DOWEL PIN	-
9	R42886	2	COVER	(LOWER LH AND UPPER RH)
10	AR86538	1	HOUSING	(MARKED R66649), (INCLUDES (2) R66650, (2) AR86539, (2) R36666 AND R42881)
10	AR97599	1	HOUSING	WITH PINS AND BUSHINGS
10	AR88452	1	Housing	(SUB AR97599)
11	R36666	2	DOWEL PIN	-
11	R65500	2	DOWEL PIN	-
12	R27490	1	O-Ring	(KIT AR63930)
13	R45569	1	Snap Ring	-
14	AR77224	1	SEAL	-
15	R42735	1	SHAFT	-
16	JD9029	1	Bearing Cone	-
17	JD7403	1	Bearing Cup	-
18	JD9028	2	BEARING CONE	-
19	JD8292	2	BEARING CUP	-
20	R41958	1	HUB	-
21	R42765	1	Shim	0.08 MM (0.003"), (STEEL)
21	R48811	1	Shim	0.13 MM (0.005") , (STEEL)
21	R42766	1	Shim	0.25 MM (0.010"), (STEEL)
22	R42729	8	Washer	-
23	19H1800	8	Cap Screw	3/8" X 1-1/2"
24	AR44376	1	HOUSING	PLANET BRAKE PISTON, WITH TUBE
24	AR88453	1	HOUSING	PLANET BRAKE PISTON, WITH TUBE
25	R42969	12	SCREW	-
25	R67904	13	SCREW	-
26	R42927	9	PISTON	-
27	R73101	9	Washer	(KIT AR63930)
27	R29354	9	O-Ring	-
28	R42763	9	O-RING	(KIT AR63930)
29	R26287	1	O-Ring	(KIT AR63929 AND AR63930)
30	R31631	1	DRAIN PLUG	-
31	R42877	1	PACKING	(KIT AR63930)
..	AR63929	1	Cylinder	SEAL REPAIR, PIVOT PIN
..	AR63930	1	Bracket	SEAL REPAIR, BRAKE PISTON

Wheel Hub, Motor and Housing, 4WD Planetary Gearing
