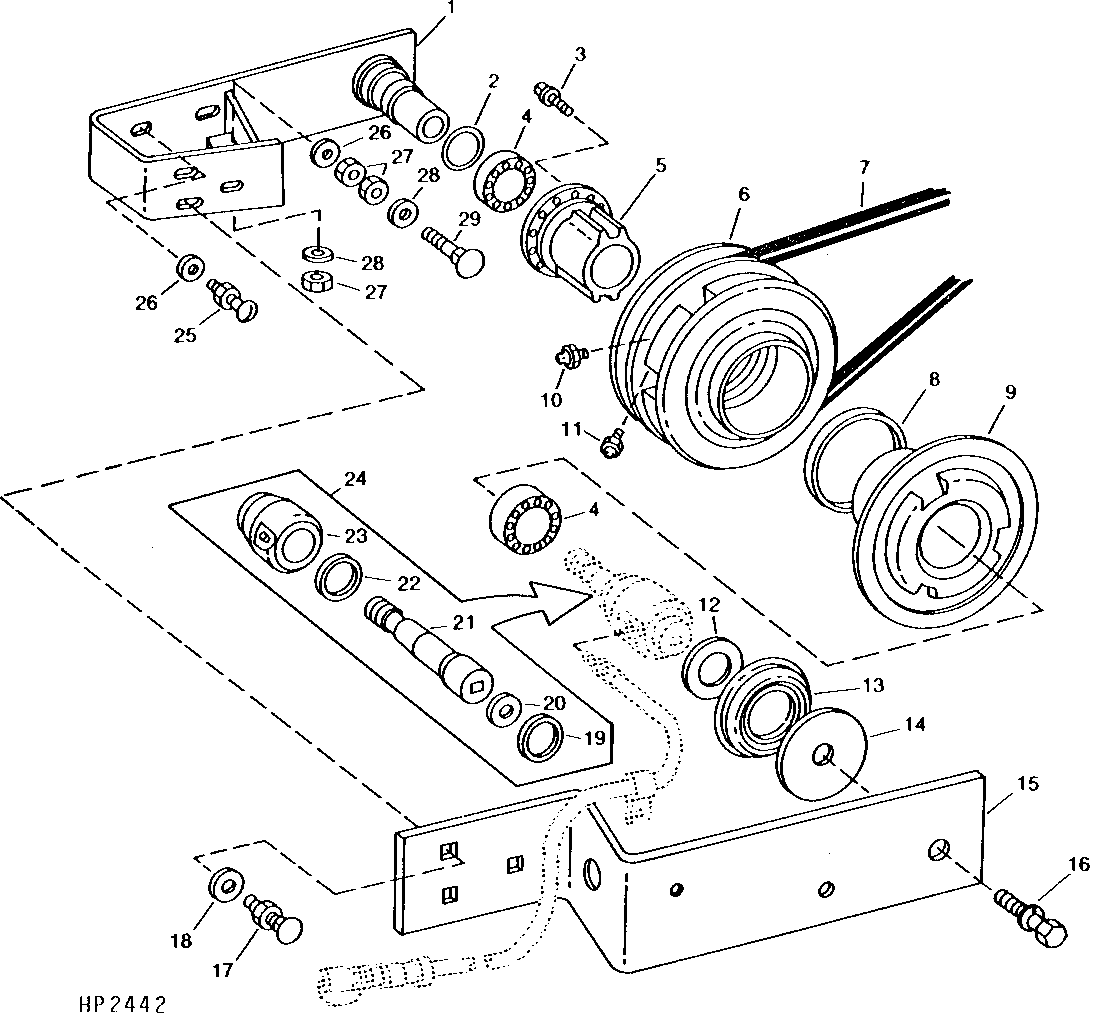

VARIABLE DRIVE UPPER COUNTERSHAFT, SHEAVES, AND SUPPORTS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH96092	1	Support	-
2	R31378	1	O-Ring	-
3	19H1905	6	Cap Screw	5/16" X 1"
3	12H303	6	Lock Washer	5/16"
4	JD10018	2	Ball Bearing	-
5	H97378	1	Hub	INNER
6	H97407	1	Pulley	INNER
7	H23927	1	V-Belt	-
8	AH94854	1	Seal	(SUB AH136497)
8	AH136497	1	Seal	-
9	H97377	1	Pulley	OUTER
10	JD7797	1	Lubrication Fitting	STRAIGHT
11	JD7813	1	Lubrication Fitting	-
12	H101448	1	Washer	NYLON
13	H93084	1	Boot	(SUB H201042)
13	H201042	1	Boot	-
14	H98409	1	Washer	-
15	H93027	1	Strap	OUTER
15	H118438	1	Strap	-
16	19H1721	1	CAP SCREW	1/2" X 1-1/2", (USE WITH AH96091 OR AH171845)
16	19M7793	1	Screw	M16 X 40, (USE WITH AH154960, AH169302 OR AH211577)
16	12H301	1	Lock Washer	1/2", (USE WITH AH96091 OR AH171845)
17	03H1557	3	Bolt	3/8" X 1-1/4"
17	N10215	3	Lock Nut	-
18	24H1682	3	Washer	13/32" X 7/8" X 0.120"
19	H100247	1	Seal	(SUB AH171185)
20	24H1342	1	Washer	17/32" X 1-1/4" X 0.036"
21	H100244	1	Piston	(USE WITH AH96091 OR AH154960)
22	H100246	1	Seal	(SUB AH209763)
23	H100245	1	Hydraulic Cylinder Barrel	(USE WITH AH96091 OR AH154960)
24	AH211577	1	Hydraulic Cylinder	(SUB FOR AH96091, AH154960, AH171845 OR AH169302), (ALSO ORDER 19M7793)
25	03H1731	2	Bolt	1/2" X 1-1/2"
25	A11455	2	NUT	-
26	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
27	14H821	3	Nut	5/8"
28	24H1368	3	Washer	21/32" X 1-5/16" X 0.090"
29	03H2308	1	Bolt	5/8" X 3-1/4"
..	AH171185	1	Hydraulic Cylinder Kit	-
