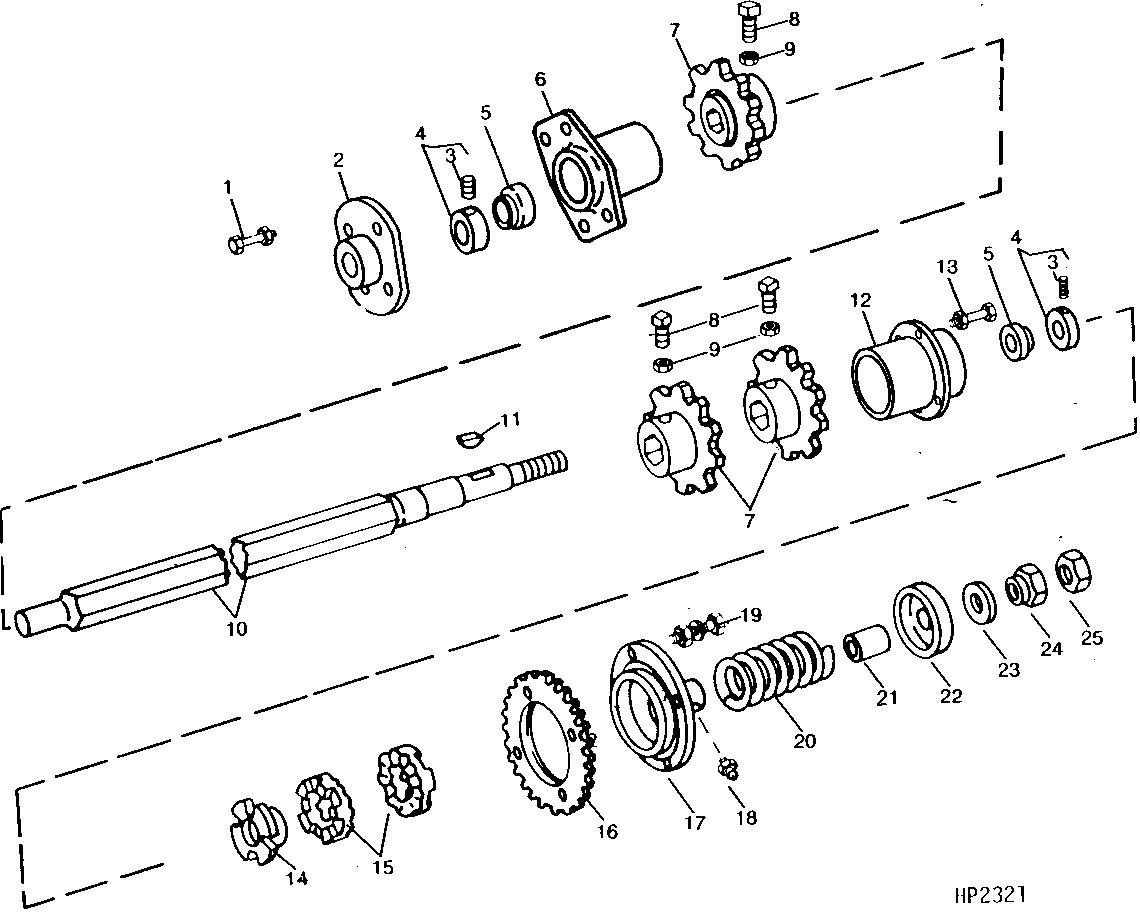

Upper Shaft and Sprockets, Regular Variable Drive ( - 556300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H301	4	Lock Washer	1/2"
1	H95783	4	Screw	12.700 X 44.450 mm (1/2" X 1-3/4")
1	14H1040	4	Nut	1/2"
2	H95784	1	Pivot	-
3	22H899	2	Set Screw	3/8" X 1/2"
4	JD8544	2	Bearing	WITH SET SCREW
5	JD9452	2	Ball Bearing	-
6	H96867	1	Housing	(SUB H102505)
6	H102505	1	Housing	(CORN, GRAIN, RICE, AND SOYBEAN)
7	H94166	3	Chain Sprocket	Z=10
8	H84158	4	Screw	3/8" X 1", SET, SQ. HD., CONE POINT
9	14H732	3	Nut	3/8"
10	H86089	1	Shaft	-
11	26H82	1	Shaft Key	1/4" X 7/8"
12	H95857	1	Housing	-
13	H100562	4	Screw	SOCKET
13	12H301	4	Lock Washer	1/2"
13	14H1040	4	Nut	1/2"
14	H85015	1	Hub	-
15	Z699H	2	SLIP CLUTCH	-
16	H93394	1	Chain Sprocket	Z=30, (LONG)
16	H80845	1	Chain Sprocket	Z=35, (VARIABLE DRIVE)
17	H93736	1	Hub	-
18	JD7788	1	Lubrication Fitting	(SUB JD7797, THIS APPLICATION)
18	JD7797	1	Lubrication Fitting	1/4", STRAIGHT
19	19H1732	4	Cap Screw	3/8" X 1-1/4", (VARIABLE DRIVE)
19	19H1800	4	Cap Screw	3/8" X 1-1/2", (LONG)
19	12H304	4	Lock Washer	3/8"
19	14H812	4	NUT	3/8"
20	H84390	1	Spring	-
20	H101244	1	Spring	-
21	M18105	1	Spacer	(SUB 28H1576, THIS APPLICATION)
21	28H1576	1	Bushing	0.824" X 1.050" X 7/8"
22	H22216	1	Round Retainer	-
23	J4489H	1	Washer	-
24	H105936	1	Nut	-
25	H83786	1	Nut	(SUB 14H793)
25	14H793	2	Nut	3/4"
25	14H793	1	Nut	3/4"

Upper Shaft and Sprockets, Regular Variable Drive ( - 556300)
