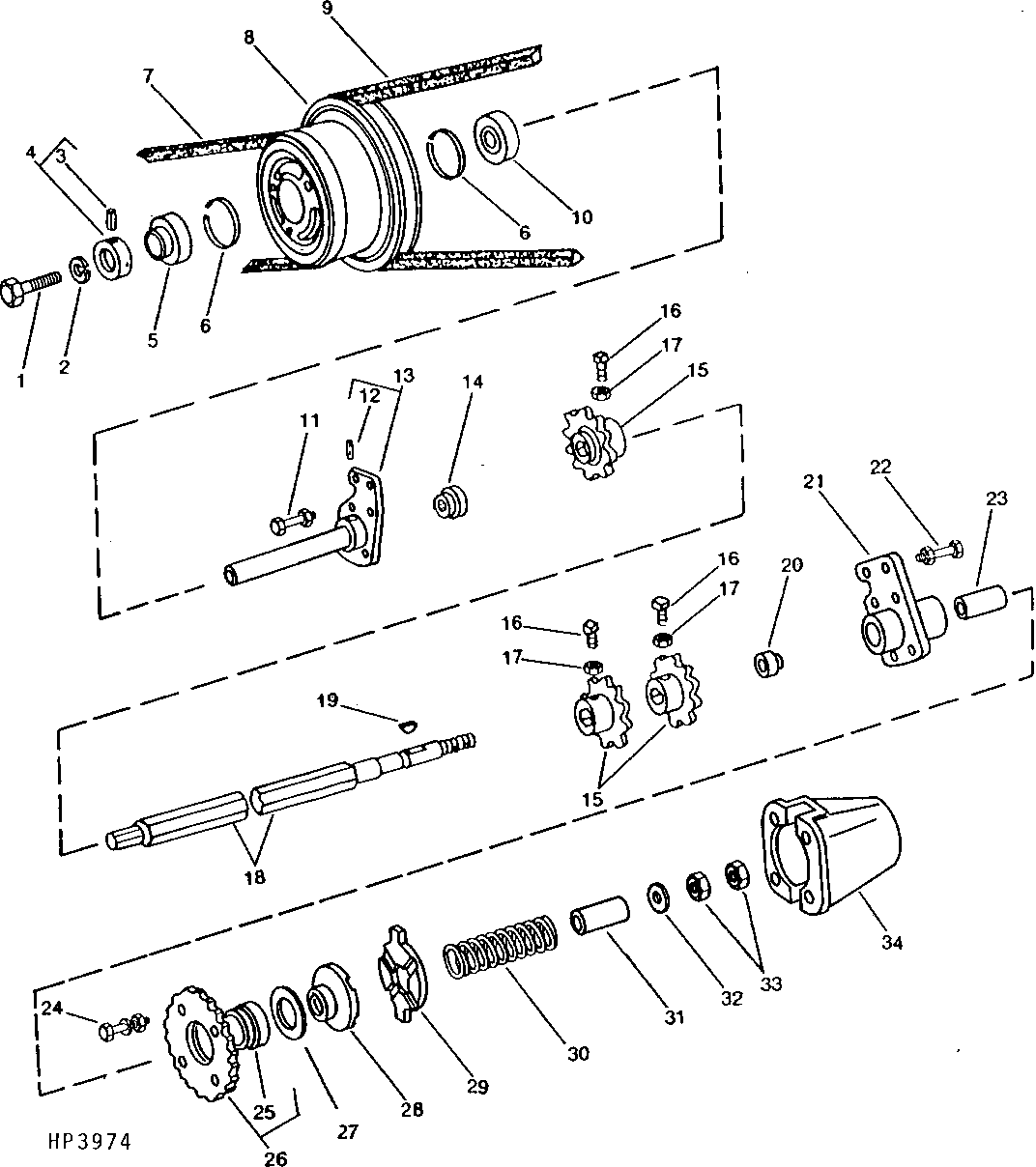

Upper Shaft and Sheaves, Fixed Drive W/ Reverser, Long Fixed Drive (556301 - ), Regular Fixed Drive (556301 - 615200)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1835	1	Cap Screw	3/4" X 1-1/2"
2	12H236	1	Lock Washer	3/4"
3	22H979	1	Set Screw	3/8" X 3/8"
4	JD8576	1	Eccentric Locking Collar	-
5	JD9356	1	Ball Bearing	-
6	P46874	2	Snap Ring	-
7	H97929	1	V-Belt	(LONG)
7	H111519	1	V-Belt	(REGULAR)
8	H97969	1	Pulley	243 MM (9-9/16") AND 348 MM (13-3/4") DIAS.
9	H23927	1	V-Belt	-
10	JD9301	1	Ball Bearing	-
11	T49269	2	Screw	12.700 X 51.054 mm (1/2" X 2.010")
11	14H1040	4	Nut	1/2"
11	12H301	4	Lock Washer	1/2"
11	H95783	2	Screw	12.700 X 44.450 mm (1/2" X 1-3/4")
12	34H321	1	Spring Pin	1/4" X 2-1/2"
13	AH111100	1	Shaft	-
14	JD9373	1	Ball Bearing	-
15	H94166	3	Chain Sprocket	-
15	H118583	3	Chain Sprocket	Z=10, (45 MM (1-3/4") HEX BORE)
16	H84158	6	Screw	-
16	H118776	6	Set Screw	-
17	14H732	6	Nut	3/8"
18	H113407	1	Shaft	-
19	26H103	1	Shaft Key	1/4" X 2-1/8"
20	JD10020	1	Ball Bearing	-
21	H106126	1	Housing	-
22	H95783	2	Screw	12.700 X 44.450 mm (1/2" X 1-3/4")
22	T49269	2	Screw	12.700 X 51.054 mm (1/2" X 2.010")
22	12H301	4	Lock Washer	1/2"
22	14H1040	4	Nut	1/2"
23	H108799	1	Spacer	-
24	14H1040	4	Nut	1/2"
24	12H301	4	Lock Washer	1/2"
24	19H1777	4	Cap Screw	1/2" X 1-3/4"
25	H105584	1	Bushing	-
26	AH104438	1	Chain Sprocket	Z=30
27	H99303	1	Washer	-
28	H105590	1	Hub	-
29	H101677	1	Jaw	-
30	H102497	1	Compression Spring	-
31	H105587	1	Spacer	-
32	24H1400	1	Washer	25/32" X 1-5/8" X 1/4"
33	14H794	2	Nut	3/4"
34	H102477	1	Housing	-

Upper Shaft and Sheaves, Fixed Drive W/ Reverser, Long Fixed Drive (556301 - ), Regular Fixed Drive (556301 - 615200)

Нет текстового описания
