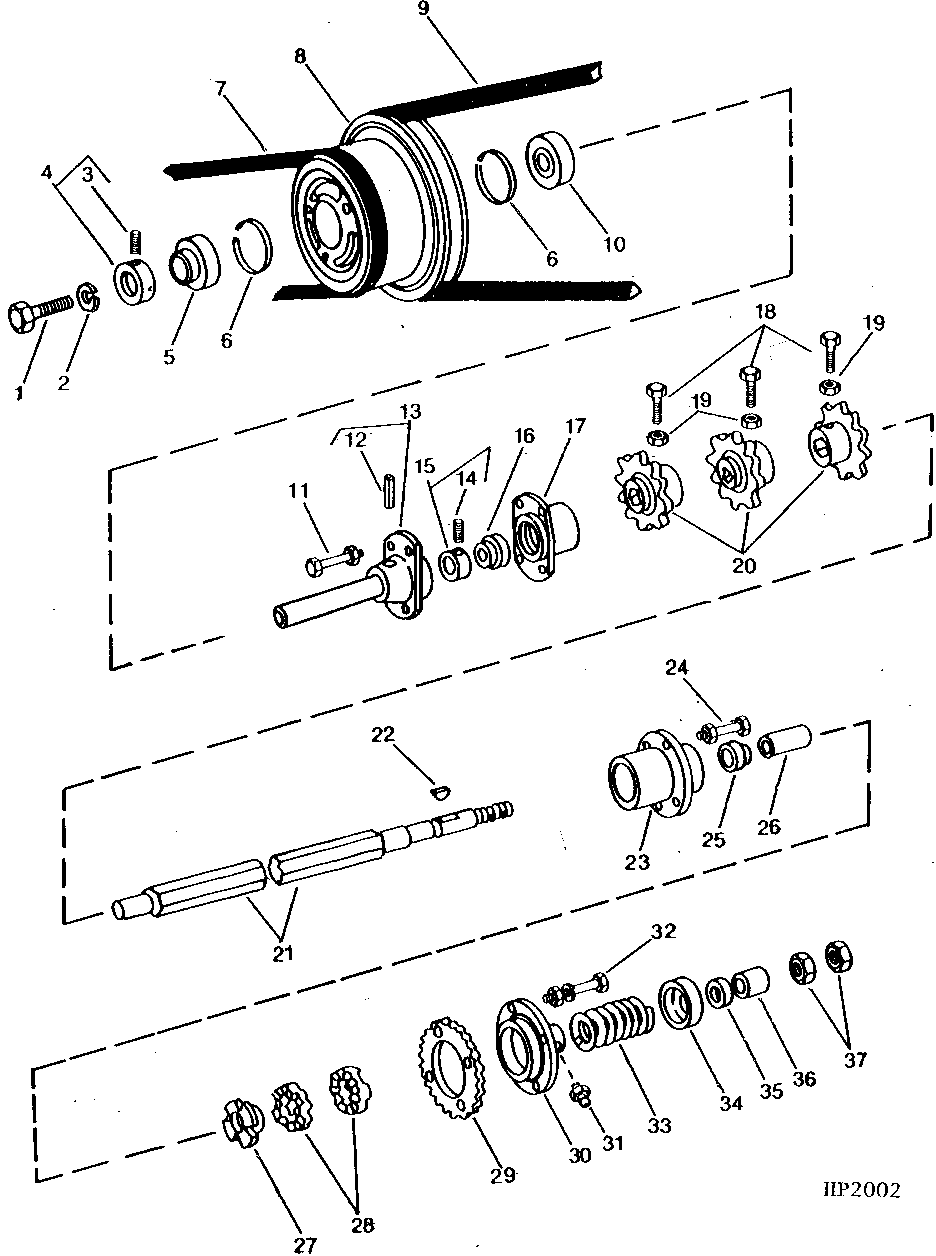

Upper Shaft and Sheaves, Fixed Drive W/ Reverser, Long Fixed Drive (409101 - 556300), Regular Fixed Drive (502551 - 556300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1835	1	Cap Screw	3/4" X 1-1/2"
2	12H236	1	Lock Washer	3/4"
3	22H979	1	Set Screw	3/8" X 3/8"
4	JD8576	1	Eccentric Locking Collar	-
5	JD9356	1	Ball Bearing	-
6	P46874	2	Snap Ring	-
7	H97929	1	V-Belt	(LONG)
7	H111519	1	V-Belt	(REGULAR)
8	H97969	1	Pulley	-
9	H23927	1	V-Belt	-
10	JD9301	1	Ball Bearing	-
11	14H1040	4	Nut	1/2"
11	12H301	4	Lock Washer	1/2"
11	H95783	4	Screw	12.700 X 44.450 mm (1/2" X 1-3/4")
12	34H321	1	Spring Pin	1/4" X 2-1/2"
13	AH94706	1	Support	-
14	22H899	1	Set Screw	3/8" X 1/2"
15	JD8544	1	Bearing	-
16	JD9452	1	Ball Bearing	-
17	H102505	1	Housing	-
18	H84158	3	Screw	-
19	14H732	3	Nut	3/8"
20	H94166	3	Chain Sprocket	Z=10
21	H86089	1	Shaft	-
22	26H82	1	Shaft Key	1/4" X 7/8"
23	H95857	1	Housing	-
24	H100562	4	Screw	-
24	12H301	4	Lock Washer	1/2"
24	14H1040	4	Nut	1/2"
25	JD9452	1	Ball Bearing	-
26	H99033	1	Bushing	(SUB H108799)
26	H108799	1	Spacer	-
27	H85015	1	Hub	-
28	Z699H	2	SLIP CLUTCH	-
29	H93394	1	Chain Sprocket	Z=30
30	H93736	1	Hub	-
31	JD7797	1	Lubrication Fitting	-
31	JD7788	1	Lubrication Fitting	(SUB JD7797, THIS APPLICATION)
32	19H1732	4	Cap Screw	3/8" X 1-1/4"
32	12H304	4	Lock Washer	3/8"
32	14H812	4	NUT	3/8"
33	H101244	1	Spring	-
34	H22216	1	Round Retainer	-
35	J4489H	1	Washer	-
36	M18105	1	Spacer	(SUB 28H1578, THIS APPLICATION)
36	28H1576	1	Bushing	0.824" X 1.050" X 7/8"
37	14H793	2	Nut	3/4"
37	14H793	1	Nut	3/4"
37	H105936	1	Nut	-

Upper Shaft and Sheaves, Fixed Drive W/ Reverser, Long Fixed Drive (409101 - 556300), Regular Fixed Drive (502551 - 556300)
