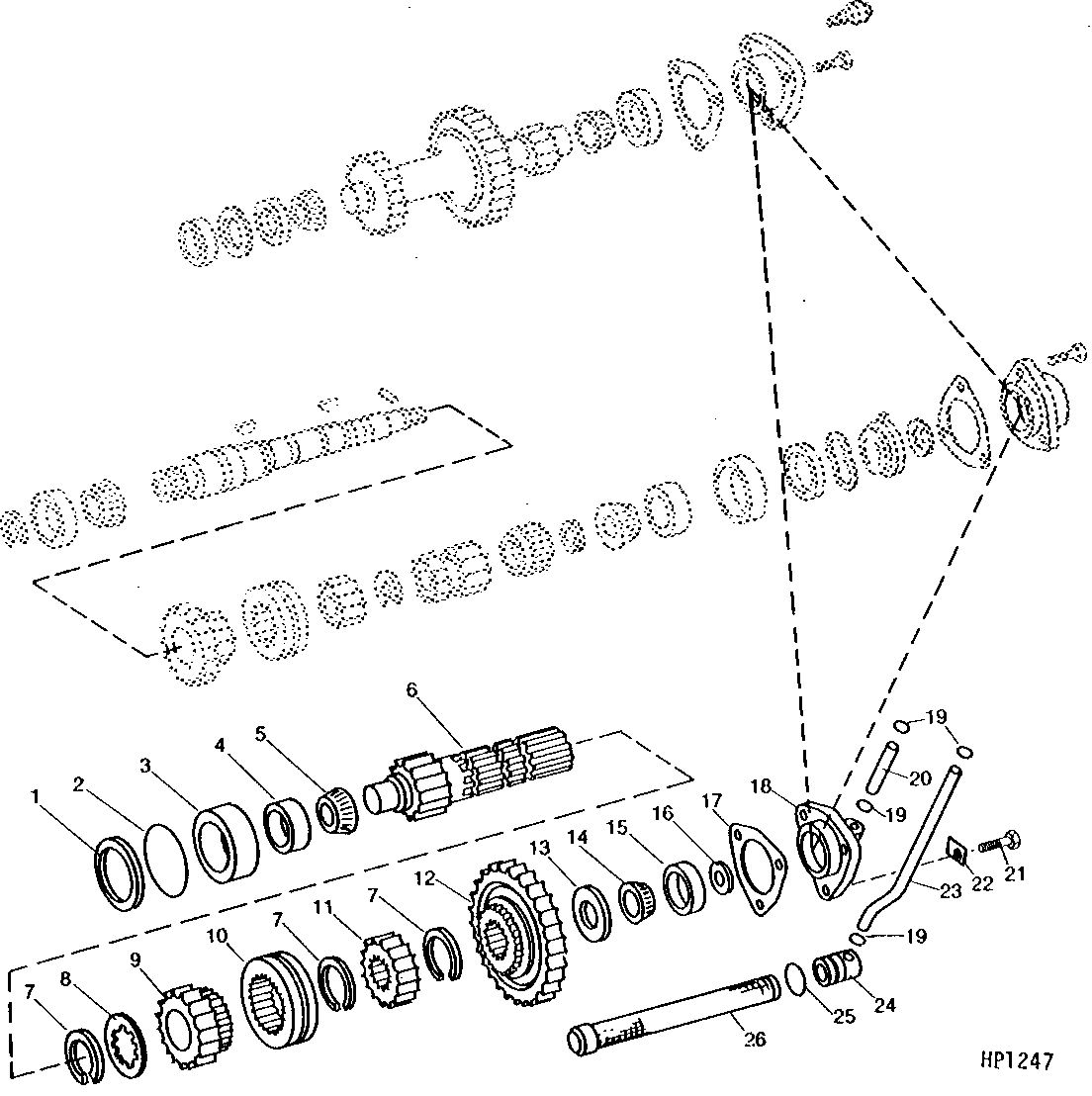

TRANSMISSION PINION SHAFT, GEARS, AND BEARINGS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H93764	1	Snap Ring	-
2	R11120	1	O-Ring	-
3	H93763	1	Exhaust Cap	LH
4	JD8257	1	Bearing Cup	-
5	JD8947	1	Bearing Cone	-
6	H99823	1	Shaft	Z=18
6	H105336	1	Shaft	Z=22, (PLANETARY FINAL DRIVE)
7	R26265	3	Snap Ring	-
8	R26253	1	THRUST WASHER	(SUB H103167, THIS APPLICATION)
8	H103167	1	Washer	-
9	H105207	1	Gear	THIRD AND FOURTH
9	H75194	1	Gear	THIRD AND FOURTH, (SUB H105207 AND H103167)
10	H80998	1	Shift Collar	-
11	R33510	1	GEAR	DRIVE, SPLINED
12	AR87813	1	Gear	WITH BUSHING, (MARKED R67423)
13	H75359	1	Washer	-
14	JD8295	1	Bearing Cone	-
15	JD8267	1	Bearing Cup	-
16	R35166	1	SNAP RING	2.08 MM (0.082")
16	R40715	1	Snap Ring	2.39 MM (0.094")
16	R40714	1	SNAP RING	2.31 MM (0.091")
16	R40713	1	SNAP RING	2.24 MM (0.088")
16	R35165	1	Snap Ring	2.01 MM (0.079")
16	R35164	1	SNAP RING	1.93 MM (0.076")
16	R35167	1	SNAP RING	2.16 MM (0.085")
17	H77814	1	Shim	0.05 MM (0.002"), (PLASTIC)
17	H77815	1	Shim	0.076 MM (0.003"), (PLASTIC)
17	H77816	1	Shim	0.127 MM (0.005"), (ALUMINUM)
17	H77817	1	Shim	0.254 MM (0.010"), (ALUMINUM)
17	H77818	1	Shim	0.508 MM (0.020"), (ALUMINUM)
18	H77813	1	Cradle	-
19	R394R	4	O-Ring	-
20	H77805	1	Bushing	-
21	H78580	1	Cap Screw	-
21	19H1731	2	Cap Screw	3/8" X 1"
22	H77822	1	Clamp	OIL LINE
23	H77819	1	Line	-
24	H89310	1	Fitting	(SUB H77820)
24	H77820	1	Fitting	OIL LINE
25	A3606R	1	O-RING	-
26	AH76502	1	Strainer	-
