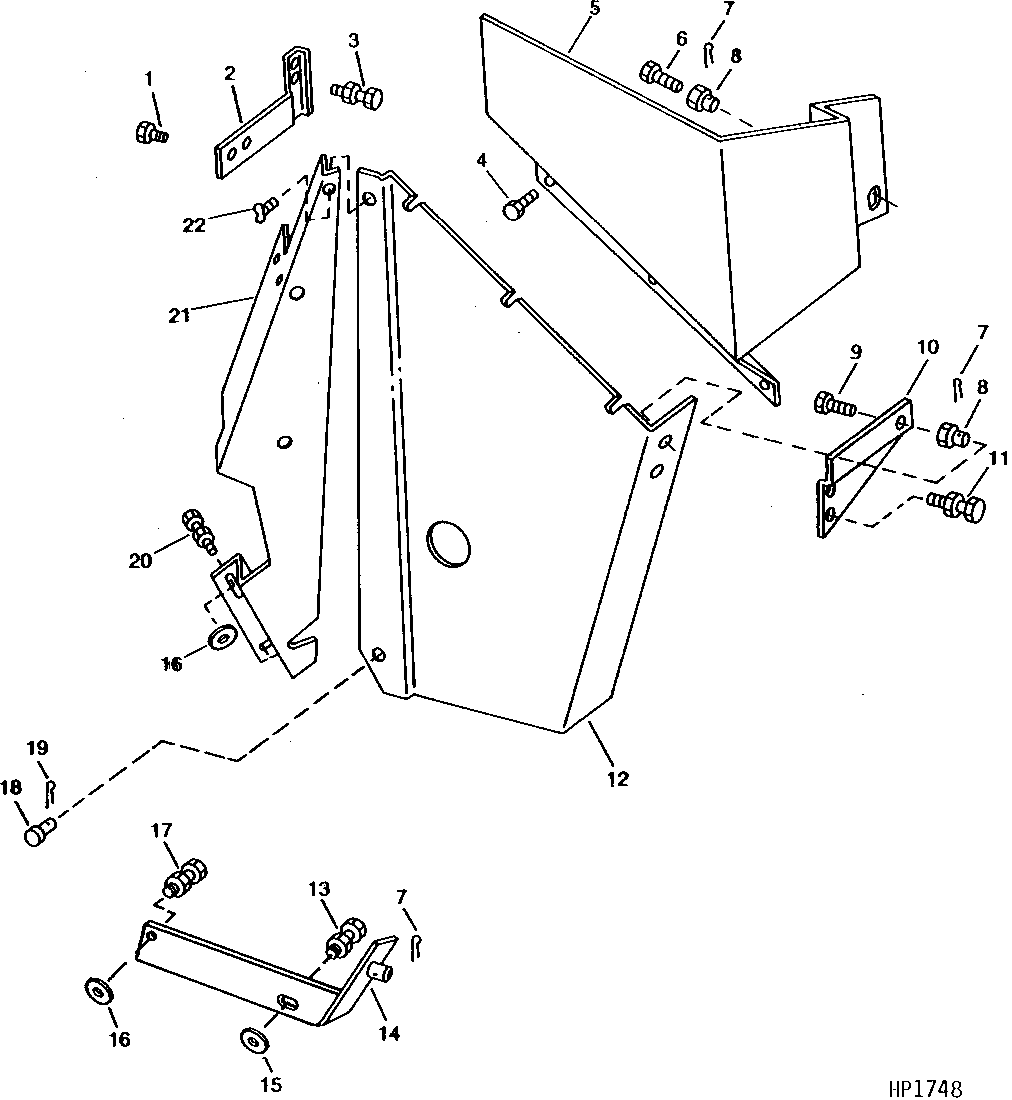

Transmission Drive Mud Shield, Eaton (556301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H77932	1	Screw	-
2	H94621	1	Bracket	-
3	19H1944	2	Cap Screw	3/8" X 2-3/4", (RASP-BAR CYLINDER)
3	19H2128	2	CAP SCREW	3/8" X 3", (SPIKE-TOOTH CYLINDER)
3	12H304	2	Lock Washer	3/8"
3	14H812	2	NUT	3/8"
4	H77932	3	Screw	SELF-LOCKING
5	AH100120	1	Shield	UPPER
6	19H1949	1	Cap Screw	5/16" X 2-1/2"
6	12H303	1	Lock Washer	5/16"
7	A3581R	3	Spring Locking Pin	-
8	H76989	2	Pin Fastener	-
9	19H1813	1	CAP SCREW	5/16" X 5/8"
9	12H303	1	Lock Washer	5/16"
10	H89981	1	Bracket	-
11	14H812	2	NUT	3/8"
11	19H1944	2	Cap Screw	3/8" X 2-3/4"
11	12H304	2	Lock Washer	3/8"
12	AH100119	1	Shield	LOWER
13	19H2335	2	Cap Screw	1/4" X 2-3/4"
13	12H302	2	Lock Washer	1/4"
13	14H786	2	Nut	1/4"
14	AH111371	1	Bracket	-
15	24H1287	1	Washer	9/32" X 5/8" X 0.065"
16	24H1305	2	Washer	13/32" X 13/16" X 0.065"
17	19H1731	1	Cap Screw	3/8" X 1"
17	14H812	1	NUT	3/8"
17	12H304	1	Lock Washer	3/8"
18	H624DA	1	PIN FASTENER	DRILLED
19	11H236	1	Cotter Pin	1/8" X 1"
20	19H1936	1	Cap Screw	3/8" X 3/4"
20	12H304	1	Lock Washer	3/8"
20	14H812	1	NUT	3/8"
21	AH100118	1	Shield	FRONT
22	H89616	1	Wing Screw	-

Transmission Drive Mud Shield, Eaton (556301 - )
