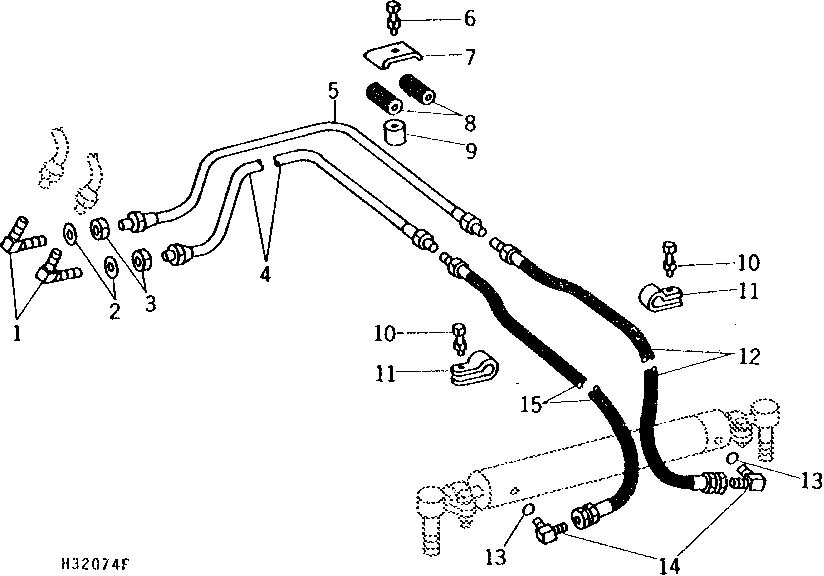

Steering Oil Lines and Hoses, Rear, Fixed and Adjustable Rear Axle ( - 458400)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H75413	2	Elbow Fitting	90°
2	24H1357	2	Washer	19/32" X 1-5/32" X 0.090"
3	14H832	2	Nut	9/16"
4	AH96491	1	Tube	LH
5	AH96490	1	Tube	RH
6	19H1849	1	Cap Screw	5/16" X 1-1/4"
6	12H303	1	Lock Washer	5/16"
6	14H785	1	Nut	5/16"
7	H83208	1	Clamp	(USE WITH 28H90)
8	H23932	2	Isolator	-
9	28H90	1	Bushing	0.364" X 0.540" X 7/16"
10	19H1919	2	Cap Screw	1/4" X 5/8"
10	14H786	2	Nut	1/4"
10	12H302	2	Lock Washer	1/4"
11	H77358	2	Clip	-
12	AH75507	1	Hydraulic Hose	6 MM X 610 MM (1/4" I.D. X 24") LONG, (FIXED REAR AXLE)
12	AH75510	1	Hydraulic Hose	6 MM X 914 MM (1/4" X 36") LONG, (ADJUSTABLE REAR AXLE)
13	R26448	2	O-Ring	-
14	AR26725	2	ELBOW FITTING	90°, (SUB AT35121)
14	AT35121	2	Elbow Fitting	90°
15	AH75508	1	Hydraulic Hose	6 MM X 711 MM (1/4" X 28") LONG, (NARROW FIXED REAR AXLE)
15	AH75509	1	Hydraulic Hose	6 MM X 813 MM (1/4" X 32") LONG, (WIDE FIXED REAR AXLE)
15	AH75511	1	Hydraulic Hose	6 MM X 1118 MM (1/4" X 44") LONG, (ADJUSTABLE REAR AXLE)

Steering Oil Lines and Hoses, Rear, Fixed and Adjustable Rear Axle ( - 458400)
