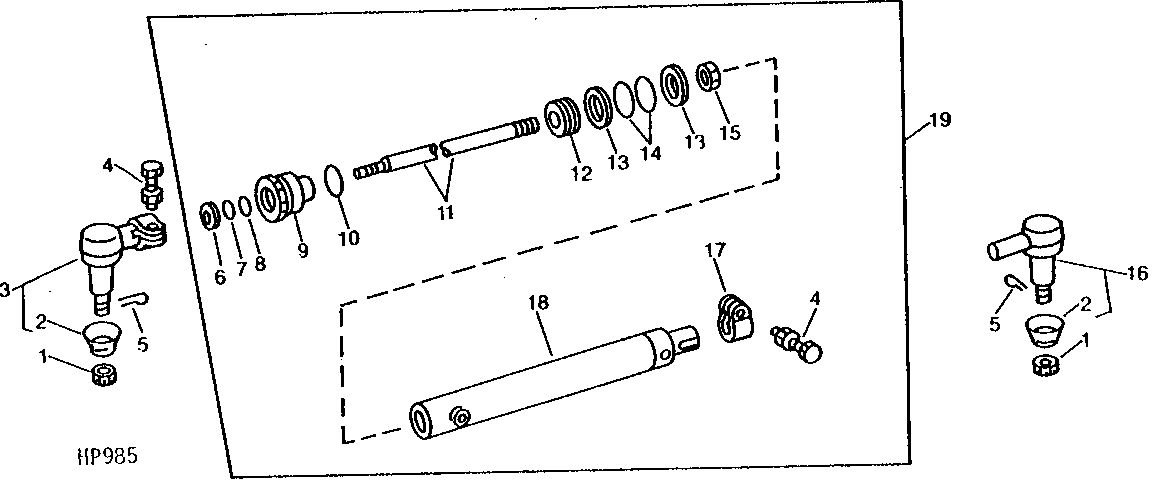

Steering Cylinder, Fixed and Adjustable Rear Axle

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H926	4	Nut	1/2"
2	H35664	2	BOOT	-
3	AH75396	1	TIE ROD END	(WITH SHIELD)
3	AH75396	2	TIE ROD END	(WITH SHIELD)
4	19H1765	2	Cap Screw	3/8" X 1-3/4"
4	14H812	2	NUT	3/8"
5	11H236	4	Cotter Pin	1/8" X 1"
6	-	1	Part 8	(KIT AH78770)
7	E42436	1	BACK-UP RING	(KIT AH78770)
8	B2762R	1	O-Ring	(KIT AH78770)
9	H80435	1	Bearing	-
10	R31378	1	O-Ring	(KIT AH78770)
11	H80434	1	HYDRAULIC CYLINDER ROD	-
12	H80436	1	Piston	-
13	-	2	Part 15	(KIT AH78770)
14	U15973	2	O-Ring	(KIT AH78770)
15	P42337	1	Lock Nut	-
16	AH75397	1	TIE ROD END	WITH SHIELD (USED WITH ADJUSTABLE REAR AXLE)
16	AH75397	2	TIE ROD END	WITH SHIELD (USED WITH ADJUSTABLE REAR AXLE)
16	AH75398	1	Ball Joint	WITH SHIELD (USED WITH WIDE FIXED REAR AXLE)
16	AH75399	1	Ball Joint	WITH SHIELD (USED WITH NARROW FIXED REAR AXLE)
17	M2300T	1	CLAMP	-
18	AH78771	1	HYDRAULIC CYLINDER BARREL	(SUB AH75400)
19	AH75400	2	HYDRAULIC CYLINDER	(SUB AN205969), (COMPLETE COMPONENT, LESS TIE ROD ENDS), (NEW COMPONENT)
19	AN205969	2	Hydraulic Cylinder	-
..	AH78770	1	Seal Kit	-
