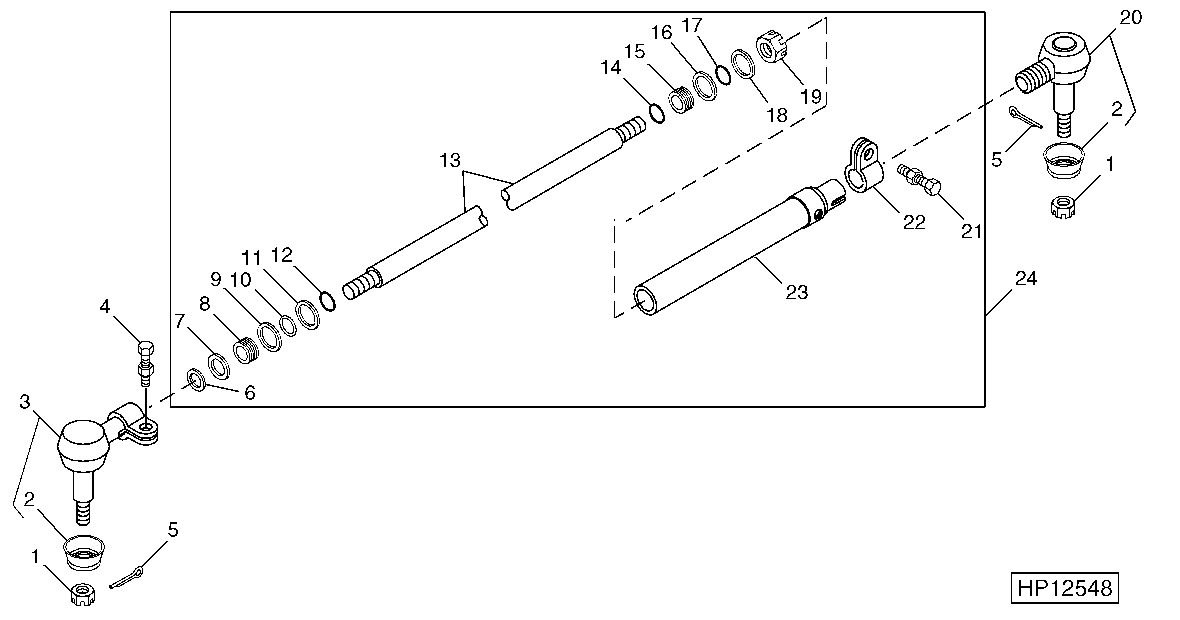

Steering Cylinder, 4WD and Heavy Duty Rear Axle

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H950	2	NUT	5/8"
2	R40589	2	COVER	-
3	AH94056	1	TIE ROD END	WITH SHIELD (USE WITH 4-WHEEL DRIVE-RH), (USE WITH HEAVY-DUTY REAR AXLE-LH)
3	AH97744	1	TIE ROD END	WITH SHIELD (USE WITH HEAVY-DUTY REAR AXLE-RH), (USE WITH 4-WHEEL DRIVE-LH)
4	19H1930	1	Cap Screw	1/2" X 2-1/2"
4	12H301	1	Lock Washer	1/2"
4	14H826	1	Nut	1/2"
5	11H236	2	Cotter Pin	1/8" X 1"
6	-	1	Part 9	(KIT AH101202)
7	AH87264	1	SEAL	(KIT AH101202)
8	H101433	1	GUIDE	(NO LONGER AVAILABLE)
9	-	1	Part 12	(KIT AH101202)
10	-	1	Part 13	(KIT AH101202)
11	-	1	Part 14	(KIT AH101202)
12	P50635	1	O-Ring	(KIT AH101202)
13	H101434	1	ROD	-
14	T74425	1	O-Ring	(KIT AH101202), (SUB FOR T42798)
15	H101432	1	PISTON	(NO LONGER AVAILABLE)
16	-	1	Part 19	(KIT AH101202)
17	U15973	1	O-Ring	(KIT AH101202)
18	-	1	Part 21	(KIT AH101202)
19	N33203	1	Lock Nut	-
20	AH94057	1	TIE ROD END	WITH SHIELD
21	19H1863	1	Cap Screw	5/8" X 3"
21	K40015	1	Lock Nut	-
22	AH101200	1	CLAMP	-
23	AH101201	1	HYDRAULIC CYLINDER BARREL	(SUB AH96566)
24	AH96566	1	CYLINDER	(SUB AN277313), (COMPLETE COMPONENT, LESS TIE ROD ENDS), (NEW COMPONENT)
24	AN277313	1	Hydraulic Cylinder	-
..	AH101202	1	Seal Kit	SEAL REPAIR

Steering Cylinder, 4WD and Heavy Duty Rear Axle
