Rear Axle Frame and Support, 4WD, Heavy Duty Fixed and Adjustable Axle

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH108402	1	Frame	-
1	AH96532	1	Frame	(SUB AH108402)
2	JD7759	1	Lubrication Fitting	1/8", STRAIGHT
3	19H1777	2	Cap Screw	1/2" X 1-3/4"
4	24H1850	2	Washer	17/32" X 1-1/4" X 0.180"
5	R36728	2	BUSHING	-
6	AH96446	2	PIN FASTENER	-
7	19H3400	4	Screw	3/4" X 5", (SUB 19H3415 WITH M3301T)
7	19H3415	6	Cap Screw	3/4" X 5-1/2", (SUB 19H3407)
7	19H3407	6	Cap Screw	3/4" X 5-1/2"
8	M3301T	6	Washer	(SUB T25922, THIS APPLICATION)
8	T25922	6	WASHER	-
9	H94184	1	Support	(SUB H109765)
9	H109765	1	SUPPORT	-
10	H92959	1	Hitch	-
11	19H1903	2	Cap Screw	1" X 3-1/2"
11	12H234	2	LOCK WASHER	1"
12	JD7781	1	Lubrication Fitting	90°
13	19H1765	12	Cap Screw	3/8" X 1-3/4"
13	12H304	12	Lock Washer	3/8"
13	14H812	12	NUT	3/8"
14	H87507	12	Bushing	-
15	19H1708	4	CAP SCREW	5/8" X 1-3/4"
15	12H294	4	Lock Washer	5/8"
15	14H1039	4	Nut	5/8"

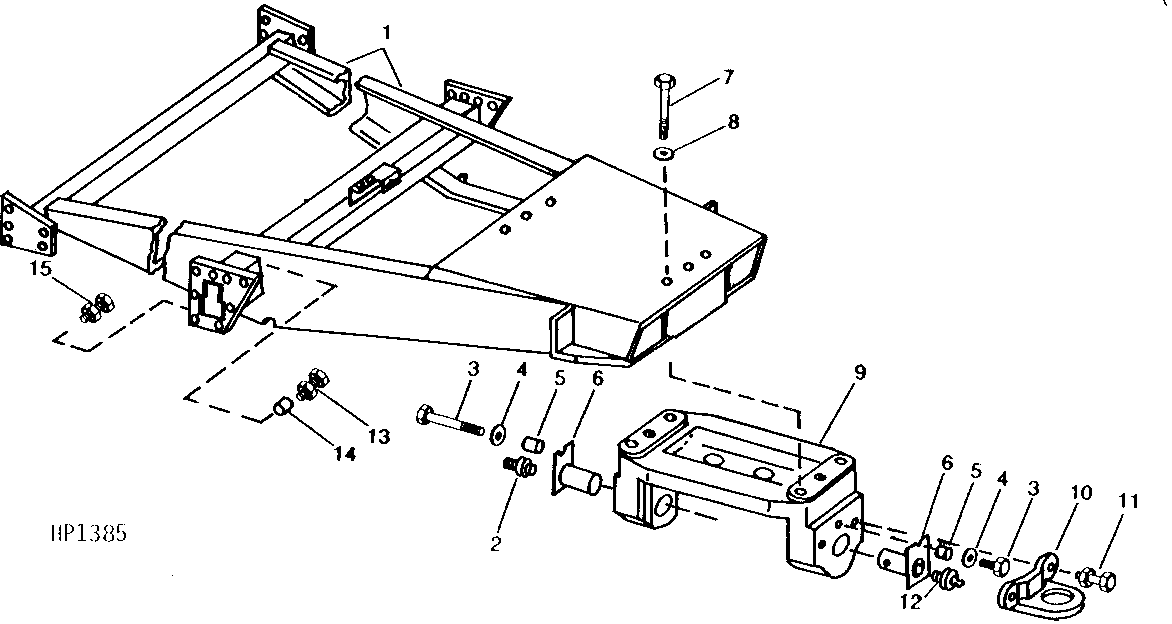

Rear Axle Frame and Support, 4WD, Heavy Duty Fixed and Adjustable Axle
