Открытый узел

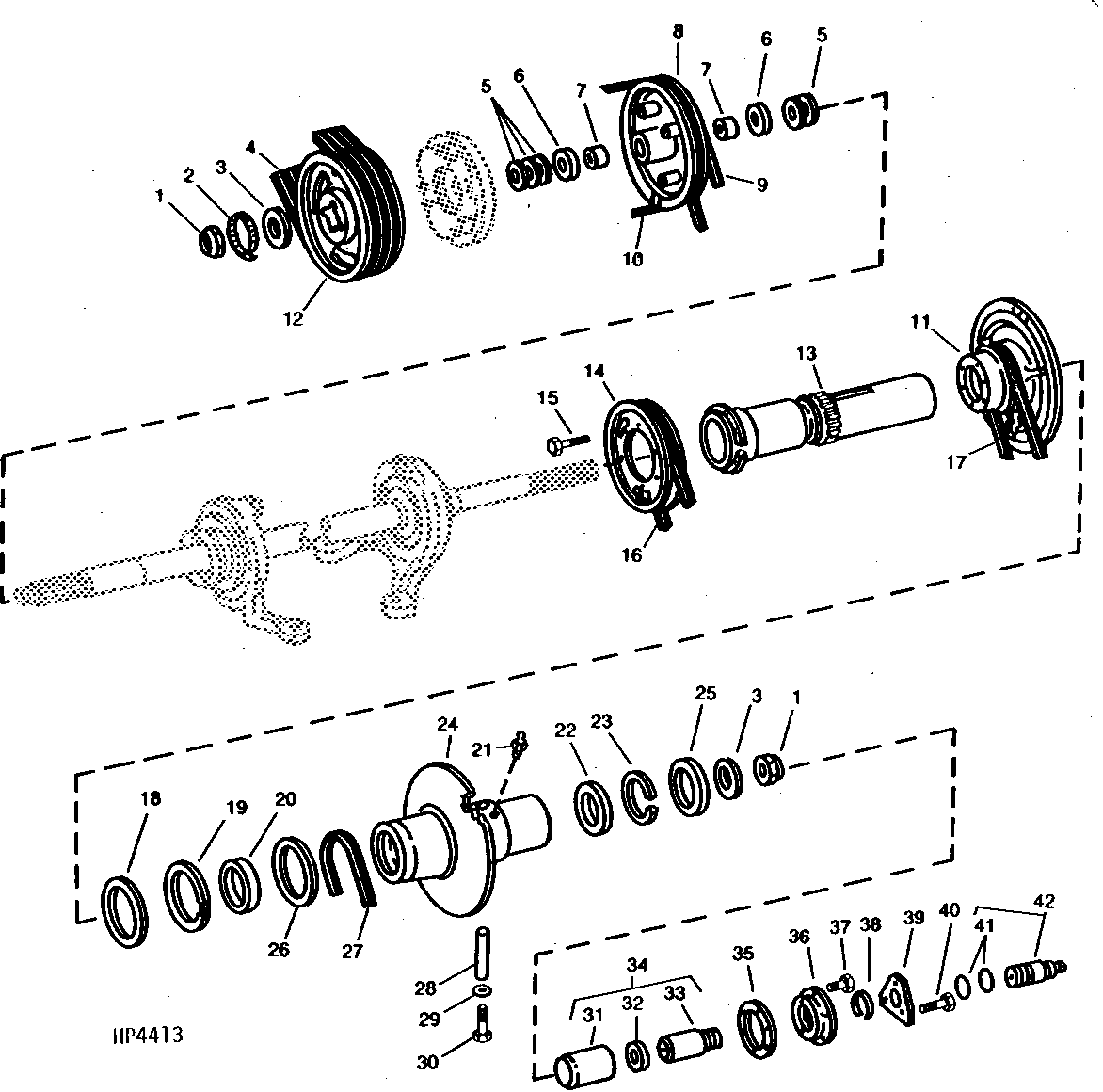

PRIMARY COUNTERSHAFT SHEAVES ( - 556300)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H82620	2	Lock Nut	-
2	H77698	1	Tie Band	-
3	24H1668	2	Washer	1-17/64" X 2-1/4" X 0.134"
4	H84425	1	V-Belt	(SUB H108175)
4	H108175	1	V-Belt	MULTI-GROOVE
5	H95481	5	Washer	(SUB 24H1577)
5	24H1577	5	Washer	1-25/32" X 2-7/8" X 0.036"
6	AH76193	2	Seal	-
7	H96996	2	Bushing	-
8	AH95961	1	Pulley	370 MM (14-5/8") DIA., (VARIABLE DRIVE FEEDER HOUSE AND REEL DRIVE)
8	AH96107	1	Pulley	229 MM (9") DIA., (REGULAR FIXED DRIVE FEEDER HOUSE AND REEL DRIVE)
8	AH95961	1	Pulley	370 MM (14-5/8") DIA., (REGULAR FIXED DRIVE FEEDER HOUSE AND REEL DRIVE)
8	AH96107	1	Pulley	229 MM (9") DIA., (LONG FIXED DRIVE FEEDER HOUSE AND REEL DRIVE)
8	AH95961	1	Pulley	370 MM (14-5/8") DIA., (LONG FIXED DRIVE FEEDER HOUSE AND REEL DRIVE)
9	H77683	1	V-Belt	(SUB H86275, THIS APPLICATION)
9	H86275	1	V-Belt	(REEL DRIVE)
10	H23927	1	V-Belt	(VARIABLE DRIVE FEEDER HOUSE)
10	H76030	1	V-Belt	(FIXED DRIVE FEEDER HOUSE)
11	H93627	1	Half Sheave	HALF, 413 MM (16-1/4") DIA.
12	H92684	1	Pulley	(SUB H107310)
12	H107310	1	Pulley	394 MM (15-1/2") DIA.
13	H93626	1	Housing	(SUB H102532 AND (2) H102533)
13	H102532	1	Housing	(SUB H110196)
13	H110196	1	Housing	(SUB H113744)
13	H113744	1	Housing	CYLINDER
14	H94268	1	Pulley	-
15	19H1800	6	Cap Screw	3/8" X 1-1/2"
15	12H304	6	Lock Washer	3/8"
16	H101436	1	V-Belt	(STRAW CHOPPER)
17	H81222	1	V-Belt	(SECONDARY COUNTERSHAFT DRIVE)
18	AH94853	1	Seal	-
19	H93631	1	Snap Ring	-
20	H93630	1	Bushing	-
21	JD7798	1	Lubrication Fitting	1/8", STRAIGHT, (SPECIAL)
22	H86011	1	SPACER	-
22	H113746	1	Bushing	-
23	P48691	1	Snap Ring	-
24	H93629	1	Sheave	412 MM (16-1/4") DIA.
24	H113745	1	Pulley	412 MM (16-1/4") DIA.
25	AH87141	1	Seal	-
26	H97714	1	Bumper	(SUB H110209)
26	H110209	1	Back-Up Ring	RUBBER (USE WITH SLOW SPEED CYLINDER DRIVE)
27	H113749	1	V-Belt	-
27	H161339	1	V-Belt	HEAVY DUTY
28	H96230	1	Pin	(SUB H102547)
28	H102547	1	Pin Fastener	-
29	24H1176	2	Washer	13/32" X 1-1/4" X 0.100"
30	19H1936	2	Cap Screw	3/8" X 3/4"
31	H97305	1	Hydraulic Cylinder Barrel	(SUB AH92615)
32	H97306	1	Seal	-
33	H97304	1	Piston	(SUB AH92615)
34	AH92615	1	Cylinder	VARIABLE SPEED (COMPLETE COMPONENT), (NEW COMPONENT)
35	H102533	1	Shim	(4 OR LESS USED)
36	H93385	1	Plate	-
37	19H1732	6	Cap Screw	3/8" X 1-1/4"
37	12H304	6	Lock Washer	3/8"
38	R26219	1	Snap Ring	-
39	H93386	1	Retainer	-
40	19H1900	3	Cap Screw	5/16" X 3/4"
40	12H303	3	Lock Washer	5/16"
41	32238	1	Packing	-
42	AH92255	1	Coupling	-

PRIMARY COUNTERSHAFT SHEAVES ( - 556300)
