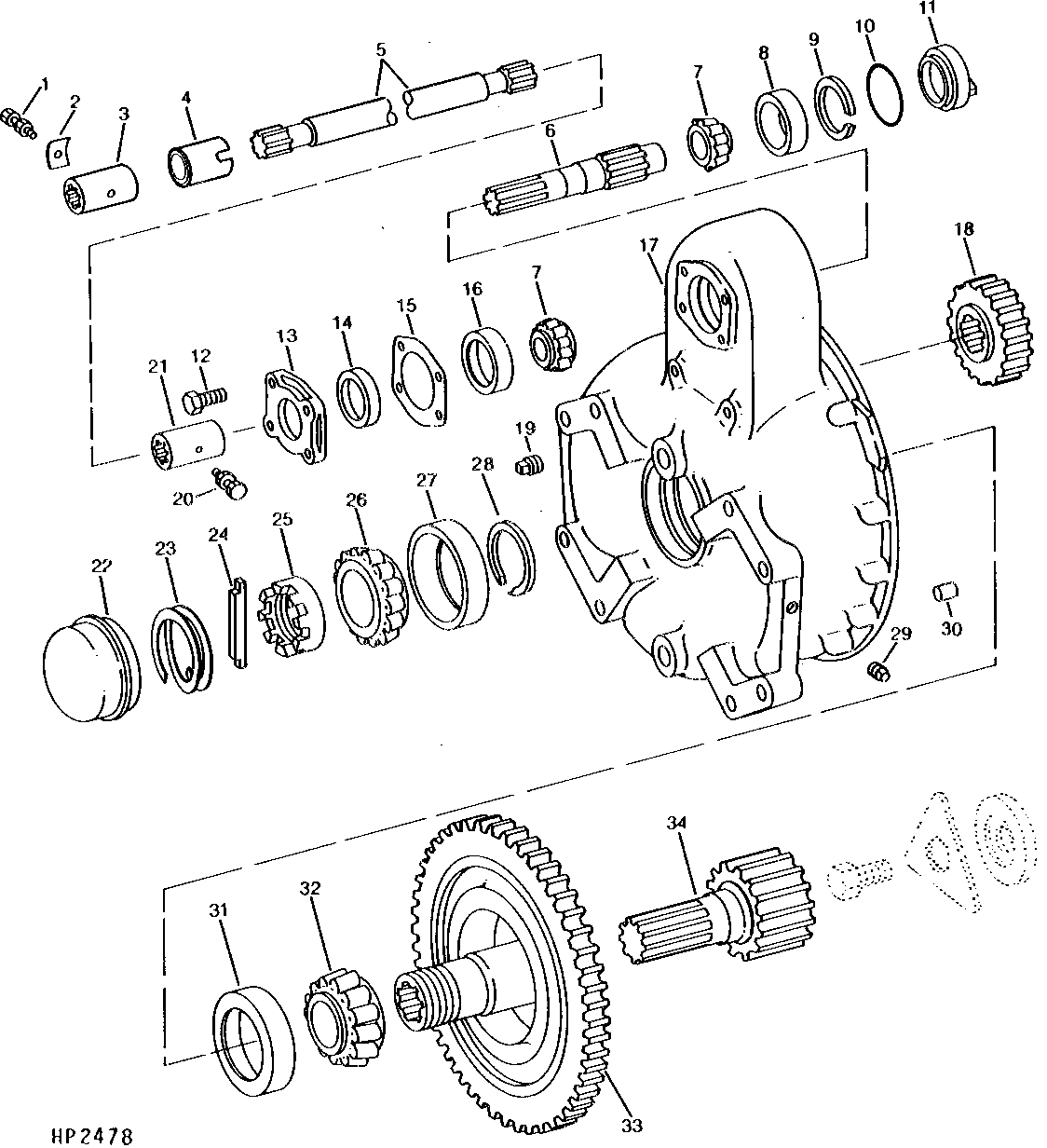

Planetary Final Drive Pinion Shaft, Inner Housing, Gears and Bearings

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H99923	1	Lock Nut	-
1	19H2023	1	CAP SCREW	3/8" X 3-1/4"
2	H102695	2	Washer	-
3	H106283	1	Splined Coupling	-
4	H106284	1	Spacer	-
5	H104544	1	Shaft	(SUB H123614)
5	H123614	1	Drive Shaft	DRIVE, RH
5	H104556	1	Shaft	DRIVE, LH
5	H123623	1	Drive Shaft	DRIVE, LH
6	H93674	1	Pinion Shaft	-
7	JD7222	2	Bearing Cone	-
8	JD7294	1	Bearing Cup	-
9	P45313	1	Snap Ring	-
10	U12331	1	O-Ring	-
11	H93675	1	Cap	-
12	19H1732	4	Cap Screw	3/8" X 1-1/4"
13	H93676	1	Bearing Housing W/O Bearing	-
14	AH81622	1	Seal	-
15	H75711	1	Shim	0.05 MM (0.002"), (SUB H75713), PLASTIC
15	H75712	1	Shim	0.076 MM (0.003"), PLASTIC, (SUB H75713)
15	H75713	1	Shim	0.127 MM (0.005"), PLASTIC
15	H75714	1	Shim	0.254 MM (0.010"), STEEL
15	H75715	1	Shim	0.508 MM (0.020"), STEEL
16	JD8285	1	Bearing Cup	-
17	H93510	1	Housing	-
18	H93667	1	Pinion	Z=26
19	H204931	1	Fitting	(SUB FOR P46369)
20	34H318	1	Spring Pin	1/4" X 1-7/8"
20	34H386	1	Spring Pin	1/4" X 2"
20	19H1944	1	Cap Screw	3/8" X 2-3/4", (USE WITH H106283)
20	H99923	1	Lock Nut	(USE WITH H106283)
21	H106340	1	Coupling	(SUB H106283)
21	H106283	1	Splined Coupling	-
22	H76441	1	Cap	-
23	P48703	1	Snap Ring	-
24	H93681	1	Key	-
25	H103538	1	Nut	-
26	JD9091	1	Bearing Cone	-
27	JD9146	1	Bearing Cup	-
28	R81R	1	SNAP RING	-
29	15H584	1	Pipe Plug	1/2"
30	R54380	2	Dowel Pin	-
31	JD9132	1	Bearing Cup	-
32	JD9075	1	Bearing Cone	-
33	AH92928	1	Gear	Z=75
34	H93670	1	Pinion	-

Planetary Final Drive Pinion Shaft, Inner Housing, Gears and Bearings
