Открытый узел

Operator's Platform Ladder and Handrail

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H106000	3	Plug	-
1	H62218	3	Plug	(SUB H106000)
2	H105999	1	Plug	-
2	T19408	1	Plug	-
3	AH93063	1	Handrail	(SUB AH113270)
3	AH113270	1	Handrail	-
4	19H1801	2	CAP SCREW	3/8" X 2"
4	12H304	2	Lock Washer	3/8"
5	H132032	1	Sheet	(BOLTED)
5	H132033	1	Sheet	(RICE), (BOLTED)
6	03H1774	12	Bolt	5/16" X 5/8"
6	A22698	12	Nut	(5/16")
7	AH108070	1	Ladder	(SUB AH113269)
7	AH113268	1	Ladder	(RICE), (BOLTED)
7	AH113268	1	Ladder	(RICE), (WELDED)
7	AH108072	1	Ladder	(RICE), (SUB AH113268)
7	AH99641	1	Ladder	(RICE), (SUB AH108072)
7	AH113269	1	Ladder	(BOLTED)
7	AH113269	1	Ladder	(WELDED)
7	AH92961	1	Ladder	(SUB AH108070)
8	11H218	2	Cotter Pin	3/16" X 1-1/2"
9	RV685A	1	Pin Fastener	-
10	N10214	2	Self-Locking Screw	-
11	AH93084	1	Pin Fastener	LH
12	AH93044	1	Platform	-
13	AH93083	1	Pin Fastener	RH
14	H93772	1	Pin Fastener	(SUB AH108226)
14	AH108226	1	Lock	-
15	H26275	1	PIN FASTENER	-
16	11H206	1	Cotter Pin	3/32" X 3/4"
17	P31827	1	SPRING	-
18	19H1801	1	CAP SCREW	3/8" X 2"
18	12H304	1	Lock Washer	3/8"
18	14H812	1	NUT	3/8"
19	B3675R	1	BUSHING	-
20	AH92450	1	Lever	-
21	19H1801	2	CAP SCREW	3/8" X 2"
21	14H812	2	NUT	3/8"
21	12H304	2	Lock Washer	3/8"
22	24H1237	2	Washer	25/64" X 7/8" X 0.060"
23	H96968	1	Eyebolt	-
24	AH90765	1	Spring	-
25	H77349	1	Pin Fastener	-
26	H76139	7	Screw	-
27	H102557	1	Reinforcement	-
28	-	1	Part 46	(CUT FROM T50819), (SUB T58056)
28	-	1	Part 47	(CUT FROM T58056)
29	AH138726	1	Kit	-

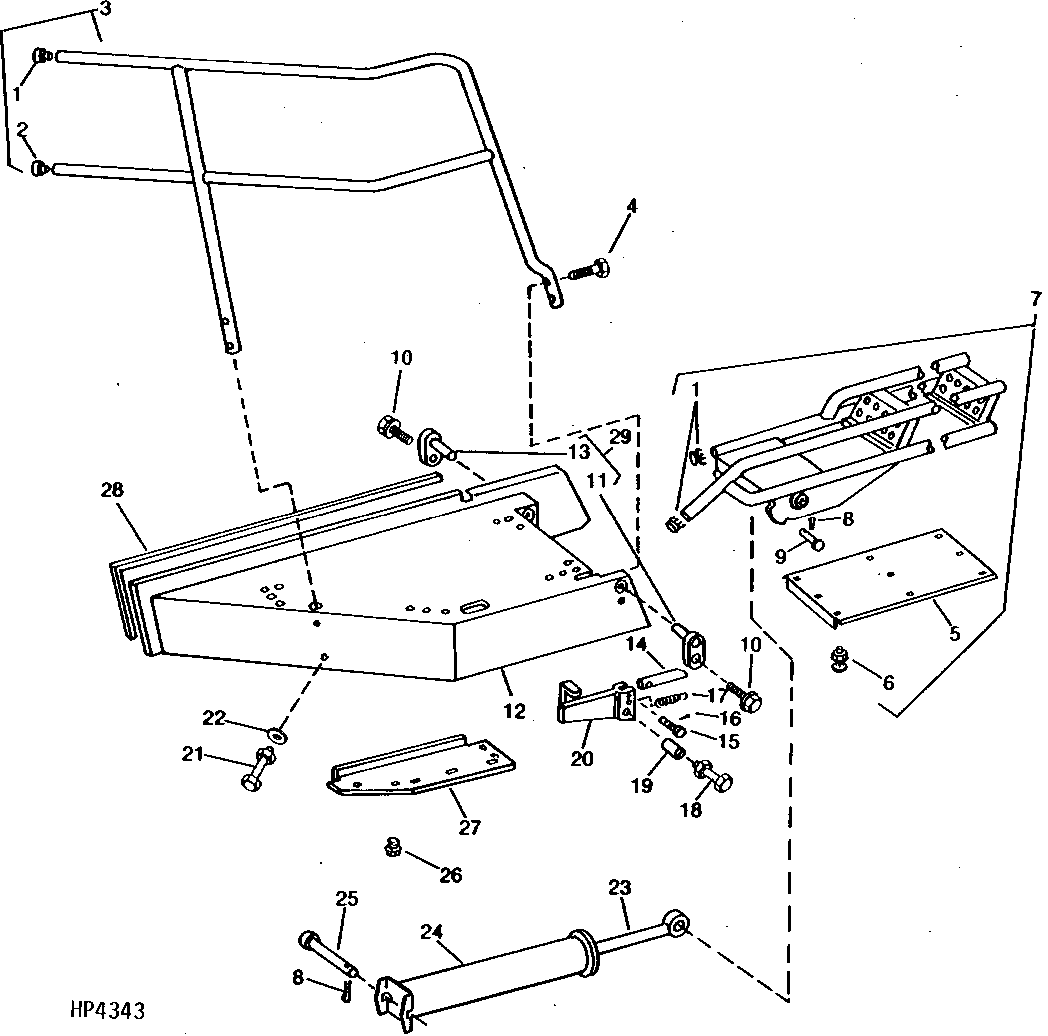

Operator's Platform Ladder and Handrail
