Operator's Platform Ladder and Handrail, Use W/ Tracks

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H106000	1	Plug	-
1	H62218	1	Plug	(SUB H106000)
2	H105999	1	Plug	-
2	T19408	1	Plug	-
3	AH92953	1	Handrail	FRONT, (SUB AH113271)
3	AH113271	1	Handrail	-
4	03H1560	2	BOLT	3/8" X 1-3/4"
4	12H304	2	Lock Washer	3/8"
4	14H812	2	NUT	3/8"
5	H81252	1	Bearing	-
6	H81246	1	Lock	-
7	22H844	1	SET SCREW	3/8" X 1/2"
8	N10215	1	Lock Nut	-
8	N10214	2	Self-Locking Screw	-
9	AH92954	1	Handrail	(SUB AH113692)
9	AH113692	1	Handrail	(REAR)
10	H84475	1	Strap	-
11	H82069	1	Support	-
12	H81253	1	Arm	-
13	24H1662	1	Washer	49/64" X 1-1/2" X 0.075"
14	H34753	1	Lock Nut	-
15	S2827M	1	Spring	-
16	JD7788	1	Lubrication Fitting	-
17	AH92952	1	Platform	-
18	12H304	2	Lock Washer	3/8"
18	14H812	2	NUT	3/8"
18	19H1801	2	CAP SCREW	3/8" X 2"
19	24H1237	7	Washer	25/64" X 7/8" X 0.060"
20	H79962	3	Roller	-
21	H97316	3	Dowel Pin	-
22	C3203E	1	Grip	-
23	AH90588	1	Ladder	(SUB AH108049)
23	AH108049	1	Ladder	-
24	26H22	1	Shaft Key	1/4" X 1"
25	H81342	1	Stop	-
26	03H1558	1	Bolt	3/8" X 1-1/2"
26	14H812	1	NUT	3/8"
26	12H304	1	Lock Washer	3/8"
27	19H1732	3	Cap Screw	3/8" X 1-1/4"
27	12H304	3	Lock Washer	3/8"
27	14H812	3	NUT	3/8"
28	H97317	1	Lever	-
29	19H1801	4	CAP SCREW	3/8" X 2"
29	12H304	4	Lock Washer	3/8"
29	14H812	4	NUT	3/8"
30	-	1	Part 46	1524 MM (60") LONG, (CUT FROM T50819), (SUB T58056)
30	-	1	Part 47	1524 MM (60") LONG, (CUT FROM T58056)

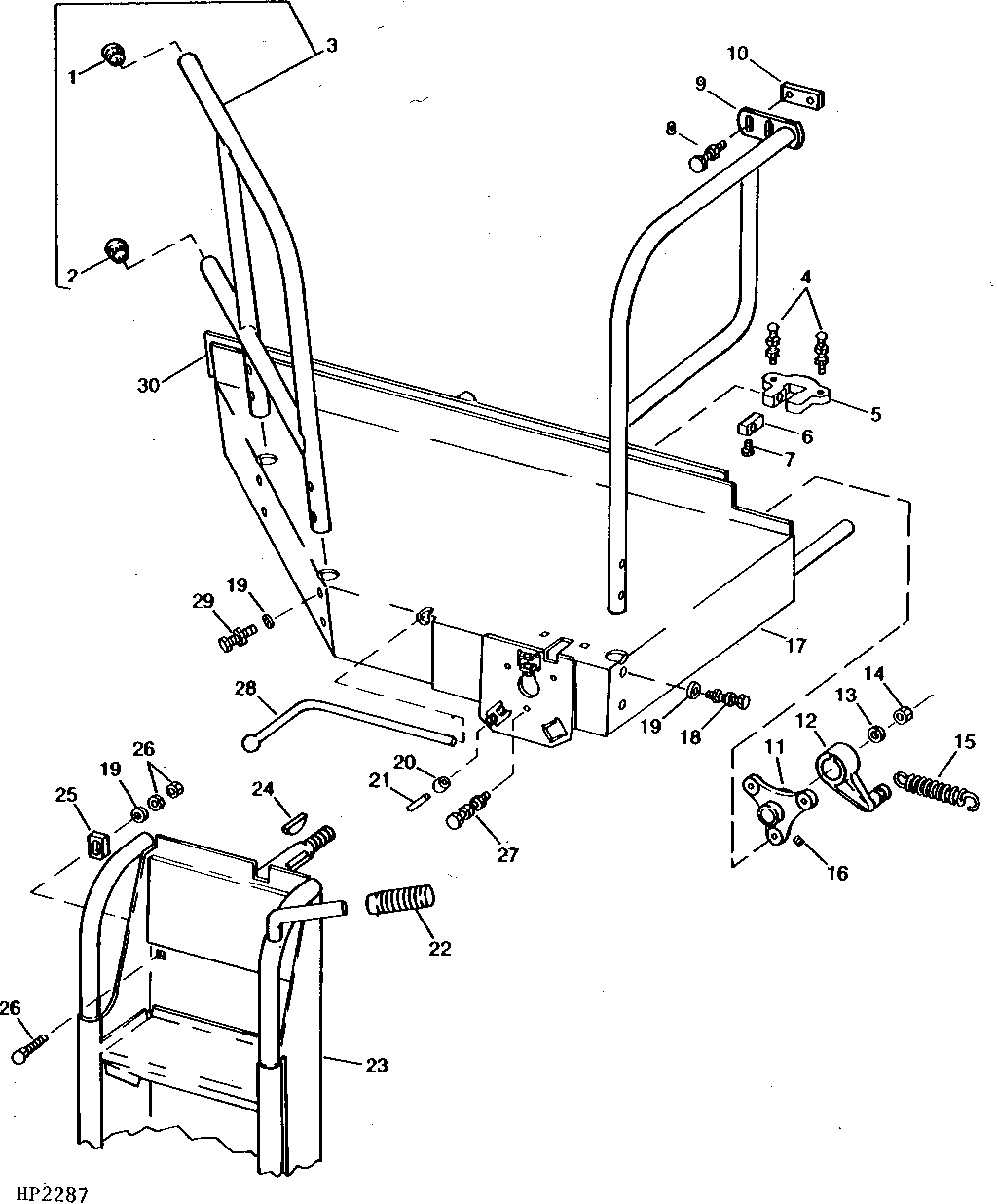

Operator's Platform Ladder and Handrail, Use W/ Tracks
