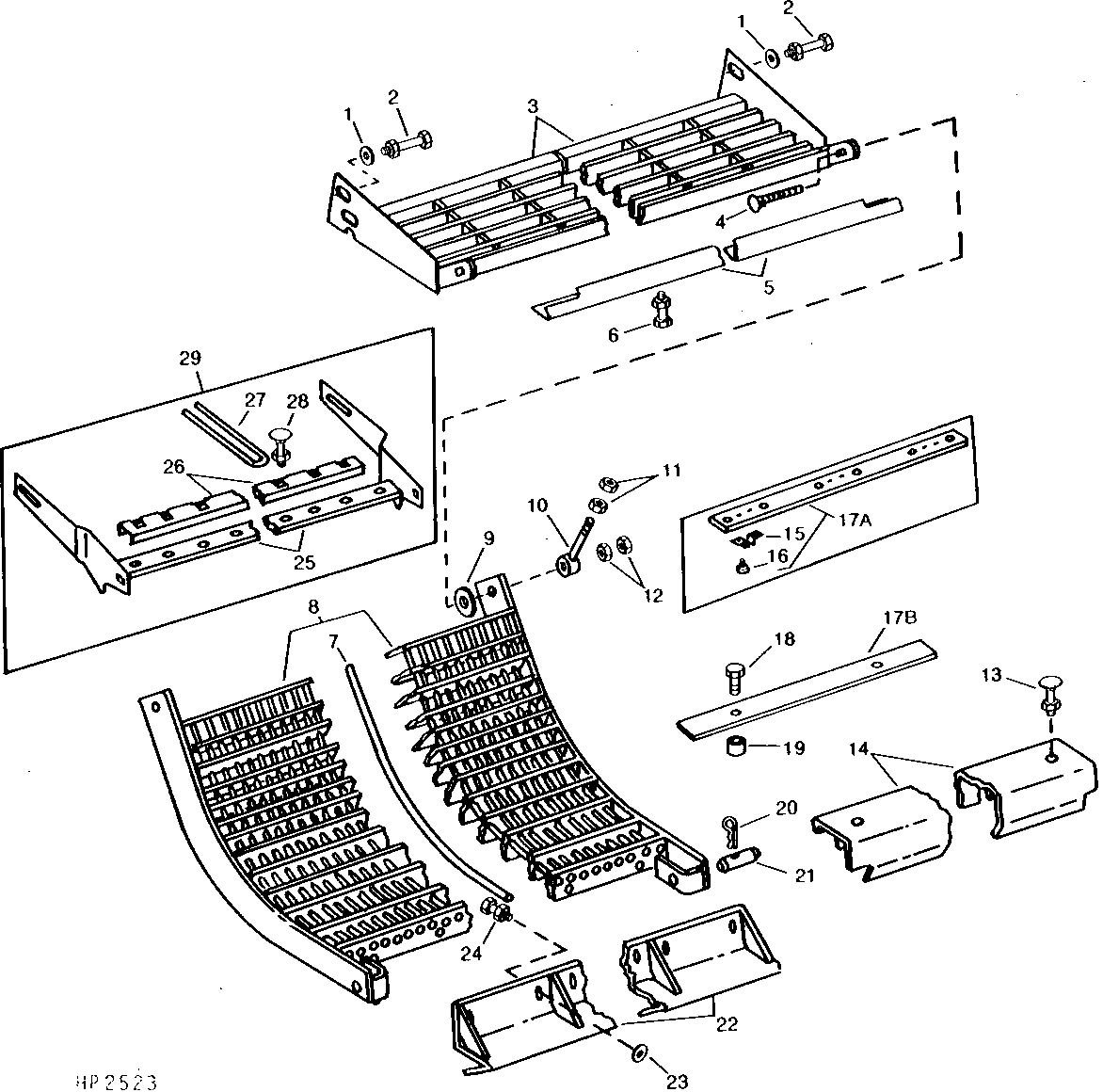

OPEN-BAR CONCAVE, STONE TRAP, AND DOOR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
2	19H1815	2	Cap Screw	1/2" X 1-1/4"
2	12H301	2	Lock Washer	1/2"
2	14H1040	2	Nut	1/2"
3	AH96369	1	Grate	(SUB AH106723), (GRAIN, RICE)
3	AH106723	1	Grate	(GRAIN, RICE)
4	03H2240	2	Bolt	3/4" X 3"
5	AH106280	1	Retainer	(SUB AH108735)
5	AH108735	1	Retainer	-
5	H116275	1	Retainer	(USE WITH AH113443)
6	14H812	9	NUT	3/8"
6	12H304	9	Lock Washer	3/8"
6	19H1732	9	Cap Screw	3/8" X 1-1/4"
7	H97824	51	Pin Fastener	-
7	H84857	51	Dowel Pin	-
8	AH96413	1	Concave	(SUB AH105068)
8	AH105068	1	Concave	(SUB AH108865)
8	AH108865	1	Concave	(SUB AH113443)
8	AH113443	1	Concave	(USE WITH H116275)
9	H84869	2	Bushing	-
10	H84292	2	Eyebolt	-
11	14H821	4	Nut	5/8"
12	14H794	2	Nut	3/4"
13	03H2120	6	BOLT	3/8" X 3-3/4"
13	14H812	6	NUT	3/8"
13	12H304	6	Lock Washer	3/8"
14	AH90701	1	Cover	-
15	P45427	8	Clip	(USE WITH AH85382), (PER PLATE)
16	16H235	16	Rivet	3/16" X 1/4", PER PLATE, (USE WITH AH85382)
18	19H1732	3	Cap Screw	3/8" X 1-1/4", PER PLATE, (USE WITH H119096)
19	AH118989	3	Isolator	PER PLATE, (USE WITH H119096)
20	11H218	2	Cotter Pin	3/16" X 1-1/2"
21	H84867	2	Pin Fastener	-
22	AH90842	1	Separator	STONE TRAP
23	24H1305	9	Washer	13/32" X 13/16" X 0.065"
24	19H2552	9	CAP SCREW	3/8" X 1-1/8"
24	12H304	9	Lock Washer	3/8"
24	14H812	9	NUT	3/8"
25	AH107064	1	Grate	-
26	H87140	1	Retainer	-
27	H87132	25	Finger	-
28	03H1937	25	Bolt	5/16" X 1-1/4"
28	12H303	25	Lock Washer	5/16"
28	14H785	25	Nut	5/16"
29	AH106818	1	Grate	(CORN, SOYBEAN, AND EDIBLE BEAN)
17A	AH85382	10	Plate	-
17B	H119096	10	Strap	-

OPEN-BAR CONCAVE, STONE TRAP, AND DOOR
