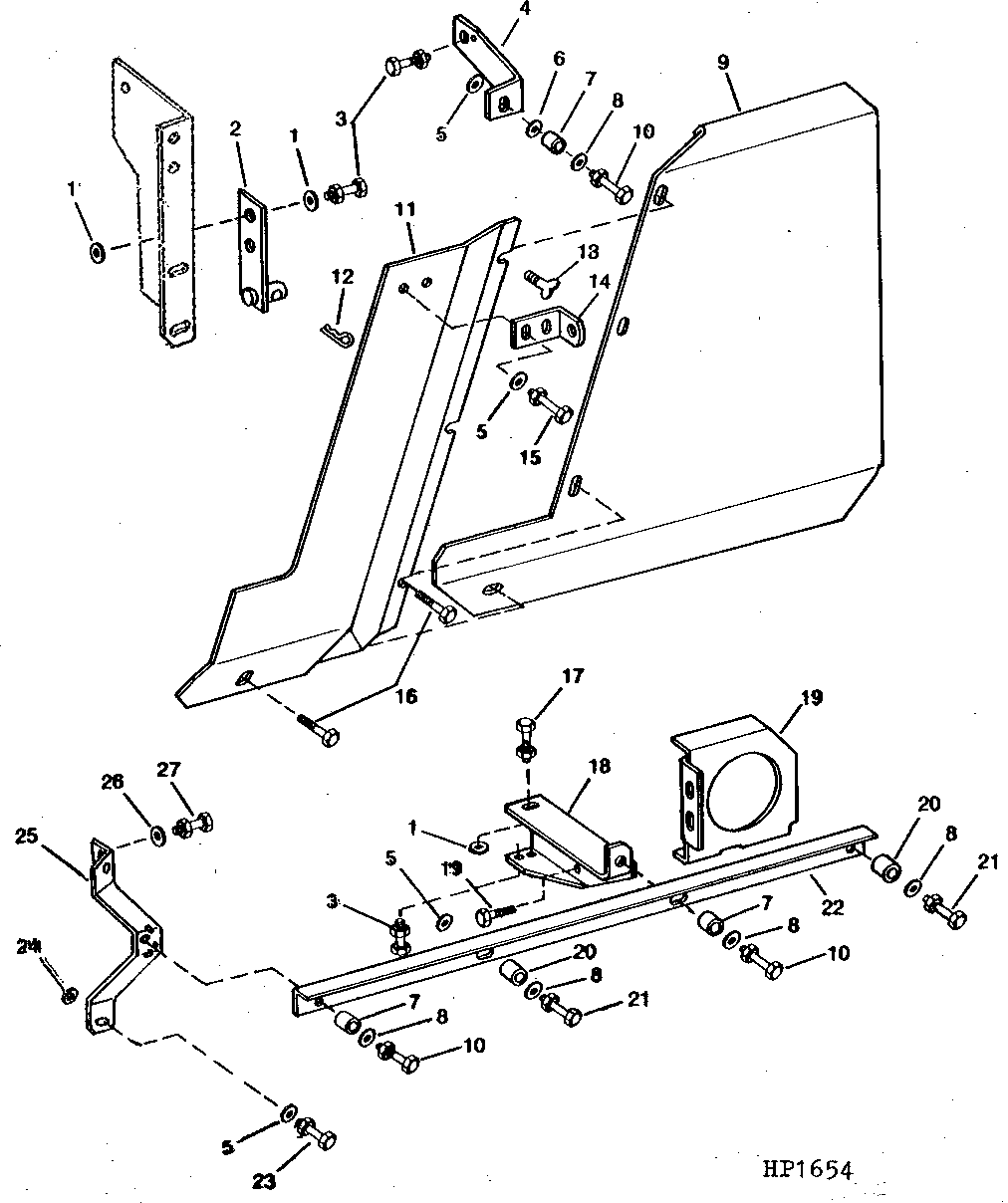

Mud Shields, Planetary Final Drive, RH (556301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1136	1	Washer	11/32" X 11/16" X 0.065"
2	AH109216	1	Anchor	-
3	12H303	3	Lock Washer	5/16"
3	14H785	3	Nut	5/16"
3	19H1905	3	Cap Screw	5/16" X 1"
4	H100977	1	Bracket	-
5	24H1682	7	Washer	13/32" X 7/8" X 0.120"
6	24H1307	1	Washer	13/32" X 1" X 1/16"
7	H94353	3	Bushing	-
8	24H1312	5	Washer	13/32" X 1-3/8" X 0.105"
9	AH109547	1	Shield	-
10	21H1415	3	Screw	3/8" X 2-1/4"
10	12H304	3	Lock Washer	3/8"
10	14H812	3	NUT	3/8"
11	AH109548	1	Shield	-
12	A3581R	1	Spring Locking Pin	-
13	H89616	1	Wing Screw	-
14	H100976	1	Angle	-
15	14H812	2	NUT	3/8"
15	19H1731	2	Cap Screw	3/8" X 1"
15	12H304	2	Lock Washer	3/8"
16	H77932	5	Screw	-
17	03H1709	1	Bolt	5/16" X 1"
17	12H303	1	Lock Washer	5/16"
17	14H785	1	Nut	5/16"
18	H111278	1	Bracket	-
19	AH100261	1	Shield	-
20	28H1884	5	Spacer	0.493" X 0.675" X 1/2"
21	14H812	5	NUT	3/8"
21	12H304	5	Lock Washer	3/8"
21	21H1098	5	Screw	3/8" X 1-3/4"
22	H100980	1	Channel	-
23	19H1732	3	Cap Screw	3/8" X 1-1/4"
23	12H304	3	Lock Washer	3/8"
23	14H812	3	NUT	3/8"
24	12H304	3	Lock Washer	3/8"
25	H111279	1	Bracket	-
26	24H1305	2	Washer	13/32" X 13/16" X 0.065"
27	19H1944	2	Cap Screw	3/8" X 2-3/4"
27	12H304	2	Lock Washer	3/8"
27	14H812	2	NUT	3/8"

Mud Shields, Planetary Final Drive, RH (556301 - )

Нет текстового описания
