Открытый узел

MAIN HYDRAULIC PUMP ( - 610598)

MAIN HYDRAULIC PUMP ( - 610598)

MAIN HYDRAULIC PUMP ( - 610598)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

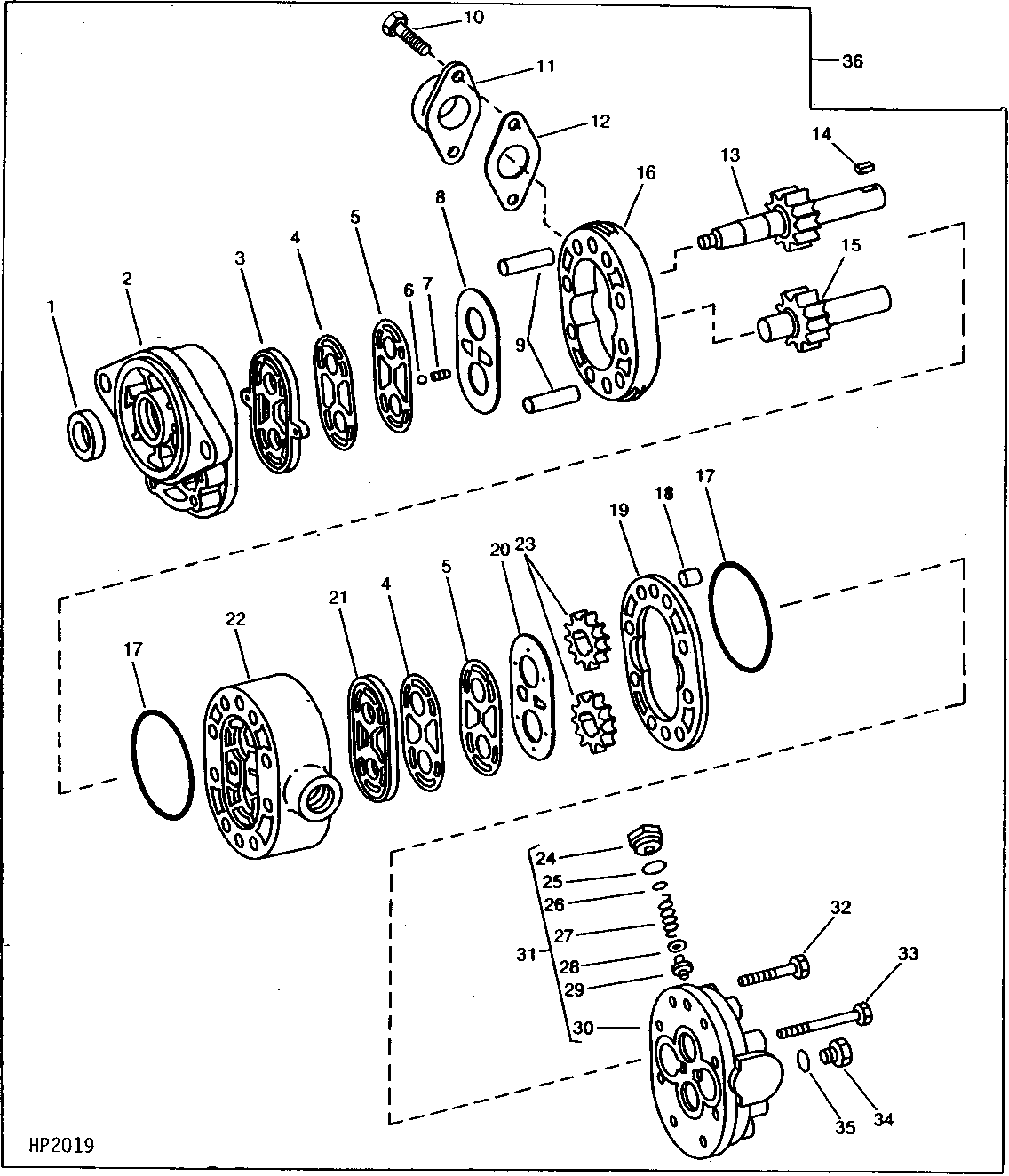

MAIN HYDRAULIC PUMP ( - 610598)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH15442	1	SEAL	(KIT AH79116 AND AH101242)
2	AT12111	1	HOUSING	FRONT
3	T12956	1	SEAL	(KIT AH79116 AND AH101242)
4	T12959	2	GASKET	PROTECTOR, (KIT AH79116 AND AH101242)
5	T12958	2	GASKET	BACKUP, (KIT AH79116 AND AH101242)
6	H22694	2	BALL	(KIT AH79116 AND AH101242)
7	H22695	2	SPRING	(KIT AH79116 AND AH101242)
8	N126257	1	DIAPHRAGM	(KIT AH79116 AND AH101242)
9	E61860	2	DOWEL PIN	-
9	H65662	2	Dowel Pin	(HEAVY-DUTY REAR AXLE)
10	19H2676	2	Cap Screw	3/8" X 1"
10	12H304	2	Lock Washer	3/8"
11	H102002	1	Adapter Fitting	(NO LONGER AVAILABLE)
12	H102003	1	Gasket	(NO LONGER AVAILABLE)
13	AH84696	1	Gear	-
14	H84321	1	Key	-
15	AH84697	1	Gear	-
16	H80822	1	HOUSING	-
17	H80821	2	O-Ring	(KIT AH79116 AND AH101242)
18	H80815	2	PIN	-
18	P51444	2	Dowel Pin	(HEAVY-DUTY REAR AXLE)
19	H84320	1	Housing	-
19	H101546	1	Housing	(HEAVY-DUTY REAR AXLE), (NO LONGER AVAILABLE)
20	N126258	1	Diaphragm	(KIT AH79116 AND AH101242)
21	N111497	1	Diaphragm	(KIT AH79116 AND AH101242)
22	AH108494	1	Adapter Fitting	(NO LONGER AVAILABLE)
22	AH101238	1	Adapter Fitting	(SUB AH108494), (NO LONGER AVAILABLE)
23	H84319	2	Gear	-
23	H101545	2	Gear	(HEAVY-DUTY REAR AXLE), (NO LONGER AVAILABLE)
24	N111499	1	Fitting	(KIT AH91800 AND AH79115), (SUB AH108495), (NO LONGER AVAILABLE)
24	AH108495	1	Drain Plug	(KIT AH108692), (NO LONGER AVAILABLE)
25	T42786	1	O-Ring	(KIT AH79115)
25	T42786	1	O-Ring	(KIT AH79116 AND AH91800)
25	U40745	1	O-Ring	(KIT AH101242 AND AH108692)
26	H31257	1	SHIM	(KIT AH91800, AH79115 AND AH108692)
27	H60817	1	Spring	(KIT AH91800), (NO LONGER AVAILABLE)
27	M80170	1	Compression Spring	(KIT AH108692)
27	H31256	1	SPRING	(HEAVY-DUTY REAR AXLE), (KIT AH79115, (NO LONGER AVAILABLE))
28	T18628	1	WASHER	-
29	AH18137	1	POPPET	(KIT AH91800, AH79115 AND AH108692), (NO LONGER AVAILABLE)
30	-	1	Part 41	(KIT AH91800, AH79115 AND AH108692)
31	AH91800	1	Kit	KIT, BACK PLATE REPAIR
31	AH79115	1	Kit	KIT, BACK PLATE REPAIR, (HEAVY-DUTY REAR AXLE)
32	N111507	4	Bolt	-
33	H80823	4	Screw	-
33	H83244	4	Cap Screw	(HEAVY-DUTY REAR AXLE)
34	R51031	1	Fitting	(KIT AH91800, AH79115 AND AH108692)
35	R28782	1	O-Ring	(KIT AH79116 AND AH101242)
36	AH227550	1	Hydraulic Pump	(CESSNA NO. 24385-RBG), (USE WITH FIXED AND ADJUSTABLE REAR AXLE), (SUB FOR AH98960 AND AH118326)
36	AH227561	1	Hydraulic Pump	(SUB FOR AH108164), (CESSNA NO. 24385-RBV), (USE WITH FIXED AND ADJUSTABLE REAR AXLE)
36	AH227551	1	Hydraulic Pump	(CESSNA NO. 24385-RBD), (USE WITH HEAVY-DUTY REAR AXLE), (SUB FOR AH98961 AND AH118327)
..	AH227563	1	Seal Kit	(USE WITH AH227550, AH227551 AND AH227561)
