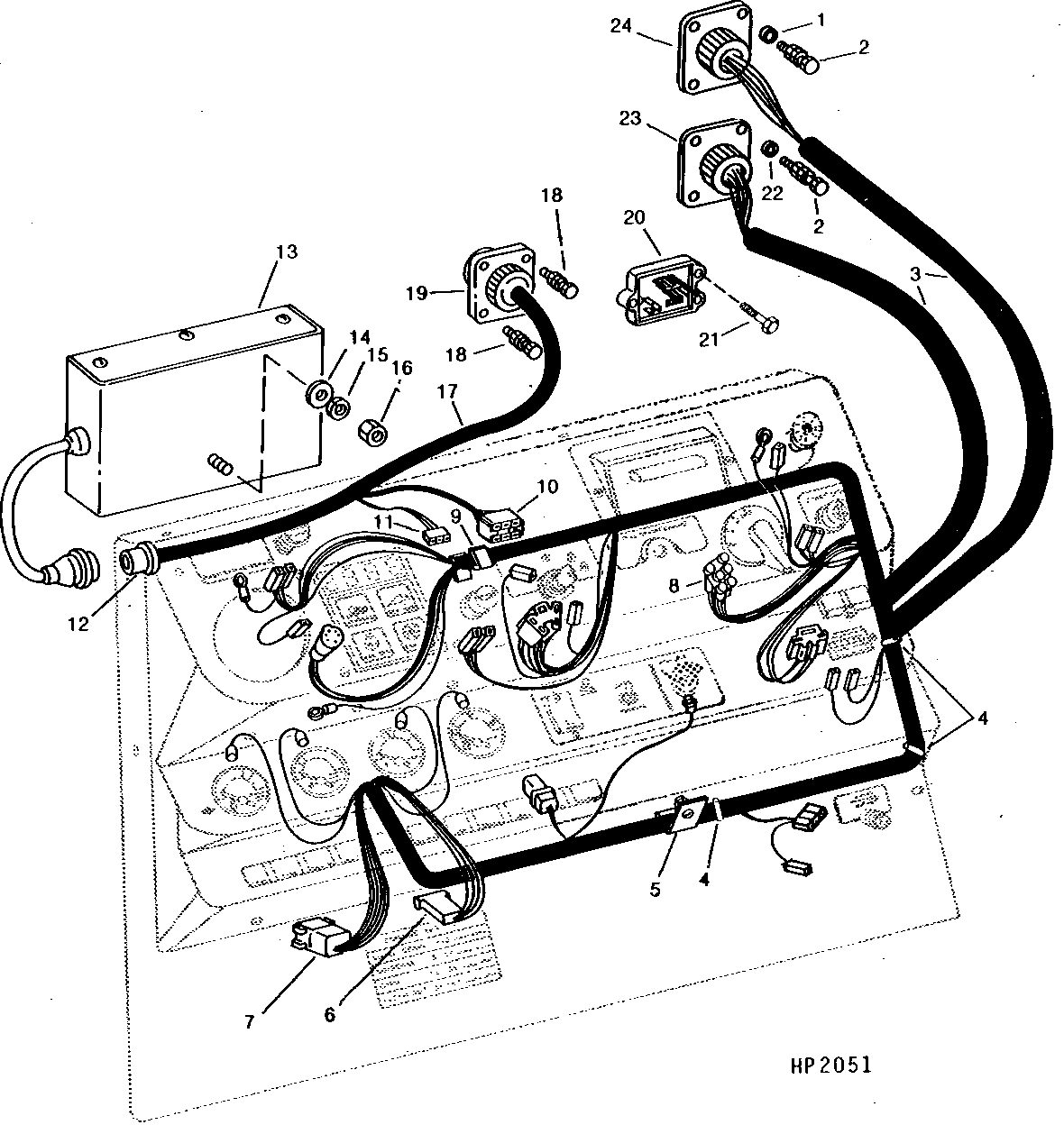

Instrument Panel Wiring Harness and Low Shaft Speed Monitoring Control Box, Dial-A-Matic Header Height Control (507351 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1281	4	Washer	5/32" X 3/8" X 0.049"
2	21H1407	4	Screw	0.138" X 1/2"
2	12H314	4	Lock Washer	0.138"
2	14H1026	4	Nut	0.138"
3	AH108481	1	Wiring Harness	(SUB AH118432)
3	AH118432	1	Wiring Harness	(SUB AH122858)
3	AH122858	1	Wiring Harness	-
4	M66044	3	Tie Band	-
5	14H631	1	Nut	0.190"
5	12H295	1	Lock Washer	0.190"
5	21H1427	1	Screw	0.190" X 1/2"
5	21H1403	1	SCREW	0.190" X 1/2", (SUB 21H1427, THIS APPLICATION)
5	AH89557	1	Clip	-
6	H118415	1	Elec. Connector Terminal	4 HOLES
6	R77469	1	Elec. Connector Terminal	(PKG. OF 5)
7	H118420	1	Socket	8 HOLES
7	R77468	2	Elec. Connector Terminal	(PKG. OF 5)
8	AR83425	1	Elec. Connector Housing	LIGHT SWITCH
9	H102415	1	Retainer	-
10	H118419	1	Socket	6 HOLES
10	R77468	2	Elec. Connector Terminal	(PKG. OF 50)
11	H118418	1	Connector	3 HOLES
11	R77469	1	Elec. Connector Terminal	(PKG. OF 5)
12	H118426	1	Electrical Connector Assy	24 HOLES
12	R77465	1	Elec. Connector Terminal	(PKG. OF 50)
12	R77458	1	Elec.Connect Locking Device	-
13	AH99671	1	Circuit Box	(REMANUFACTURED)
13	TY6662	1	Sensor	LOW SHAFT SPEED MONITOR (REMANUFACTURED)
13	AH125886	1	Monitor	LOW SHAFT SPEED MONITOR
14	24H1287	1	Washer	9/32" X 5/8" X 0.065"
15	12H302	1	Lock Washer	1/4"
16	14H786	1	Nut	1/4", LIGHT SWITCH
17	AH99648	1	Wiring Harness	(LOW SHAFT SPEED MONITORING)
18	21H1407	2	Screw	0.138" X 1/2"
18	12H314	2	Lock Washer	0.138"
18	14H1026	2	Nut	0.138"
19	H118432	1	Connector	(SUB H107004)
19	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
19	R77459	1	Elec.Connect Locking Device	-
19	H107004	1	Connector	16 HOLES
20	AH108414	1	PRINTED CIRCUIT	-
21	37H117	2	Screw	10 X 1-1/4"
22	24H1281	1	Washer	5/32" X 3/8" X 0.049"
23	R77456	1	Elec. Connector Terminal	37 HOLES
23	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
24	H118428	1	Electrical Connector Assy	7 HOLES
24	RE11156	3	Elec. Connector Terminal	(PKG. OF 3)

Instrument Panel Wiring Harness and Low Shaft Speed Monitoring Control Box, Dial-A-Matic Header Height Control (507351 - )
