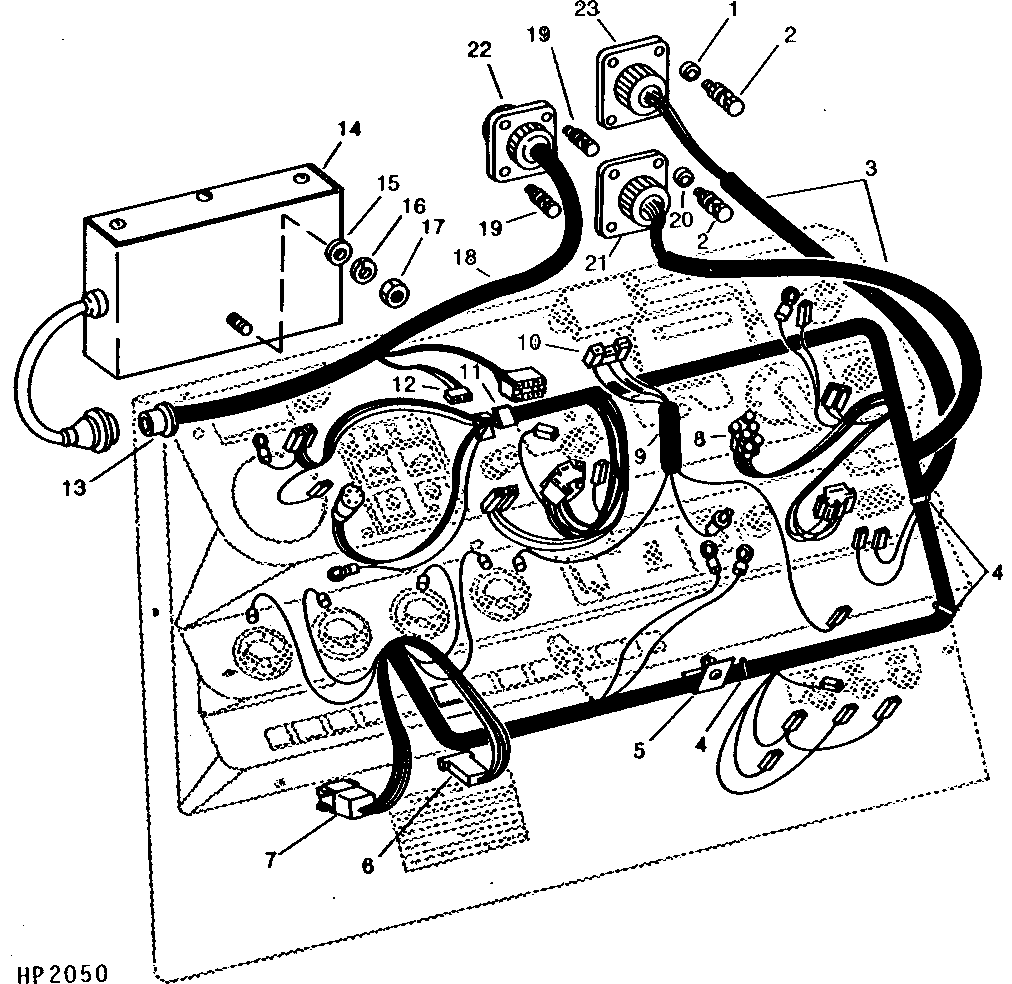

Instrument Panel Wiring Harness and Low Shaft Speed Monitoring Control Box, Automatic Header Height Control ( - 507350)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1281	4	Washer	5/32" X 3/8" X 0.049"
2	21H1407	4	Screw	0.138" X 1/2"
2	14H1026	4	Nut	0.138"
2	12H314	4	Lock Washer	0.138"
3	AH99329	1	Wiring Harness	(SUB AH106249)
3	AH106249	1	Wiring Harness	(INSTRUMENT PANEL)
4	M66044	3	Tie Band	-
5	14H631	1	Nut	0.190"
5	12H295	1	Lock Washer	0.190"
5	21H1427	1	Screw	0.190" X 1/2"
5	21H1403	1	SCREW	0.190" X 1/2", (SUB 21H1427, THIS APPLICATION)
5	AH89557	1	Clip	-
5	H100942	1	Bracket	(SUB AH89557 AND 24H1287)
6	H118415	1	Elec. Connector Terminal	4 HOLES
6	R77469	1	Elec. Connector Terminal	(PKG. OF 5)
7	H118420	1	Socket	8 HOLES
7	R77468	2	Elec. Connector Terminal	(PKG. OF 5)
8	AR83425	1	Elec. Connector Housing	LIGHT SWITCH
9	AH111380	1	Wiring Harness	(CONVERSION TO DIAL-A-MATIC HEADER HEIGHT CONTROL)
10	H118419	1	Socket	6 HOLES
10	R77468	2	Elec. Connector Terminal	(PKG. OF 5)
11	H102415	1	Retainer	-
11	H100941	1	Bracket	(SUB H102415)
12	H118418	1	Connector	3 HOLES
12	R77469	1	Elec. Connector Terminal	(PKG. OF 50)
13	H118426	1	Electrical Connector Assy	-
13	R77458	1	Elec.Connect Locking Device	-
13	R77465	1	Elec. Connector Terminal	(PKG. OF 50)
14	AH99671	1	Circuit Box	(REMANUFACTURED)
15	24H1287	1	Washer	9/32" X 5/8" X 0.065"
16	12H302	1	Lock Washer	1/4"
17	14H786	1	Nut	1/4"
18	AH99648	1	Wiring Harness	(LOW SHAFT SPEED MONITORING)
19	21H1407	2	Screw	0.138" X 1/2"
19	14H1026	2	Nut	0.138"
19	12H314	2	Lock Washer	0.138"
20	24H1281	1	Washer	5/32" X 3/8" X 0.049"
21	R77456	1	Elec. Connector Terminal	37 HOLES
21	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
22	H118432	1	Connector	(SUB H107004)
22	H107004	1	Connector	16 HOLES
22	R77459	1	Elec.Connect Locking Device	-
22	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
23	H118428	1	Electrical Connector Assy	7 HOLES
23	RE11156	3	Elec. Connector Terminal	(PKG. OF 3)
