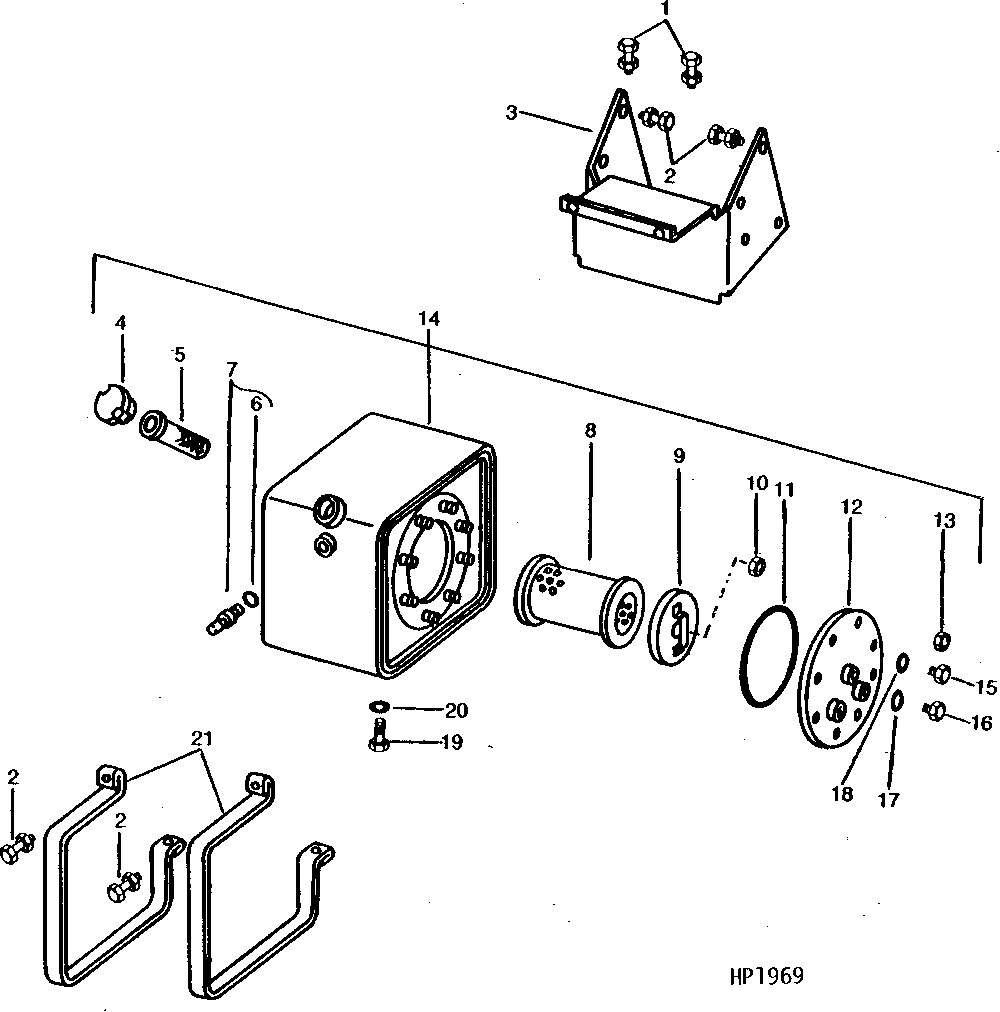

HYDROSTATIC DRIVE OIL RESERVOIR AND MOUNTING

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H303	2	Lock Washer	5/16"
1	14H785	2	Nut	5/16"
1	19H2831	2	Cap Screw	5/16" X 1-1/2"
2	19H1905	6	Cap Screw	5/16" X 1"
2	12H303	6	Lock Washer	5/16"
2	14H785	6	Nut	5/16"
3	H98661	1	Bracket	-
4	AP23771	1	Cap	-
5	AH76992	1	Strainer	-
6	R375R	1	O-Ring	-
7	AH87790	1	Lens	-
8	AH76991	1	FILTER	(SUB AE43494)
8	AE43494	1	FILTER ELEMENT	-
9	AH76989	1	COVER	(SUB AE41229)
9	AE41229	1	Cover	-
10	14H786	1	Nut	1/4"
11	H78750	1	O-RING	-
12	AH114605	1	Cover	(USE WITH R26906, R27474, R27175, U12547 AND 15H561)
12	AH97301	1	Cover	(4-WHEEL DRIVE), (USE WITH R27474, R26906, R27175 AND U12547), (SUB AH114605, R26906, R27474, R27175, U12547 AND 15H561)
12	AH97301	1	Cover	(USE WITH R27474, R26906, R27175 AND U12547), (SUB AH114605, R26906, R27474, R27175, U12547 AND 15H561)
12	AH97126	1	COVER	(USE WITH (2) R27474, (2) R26906, R27175 AND U12547), (SUB AH97301, R27474, R26906, R27175 AND U12547)
12	AH114605	1	Cover	(4-WHEEL DRIVE), (USE WITH R26906, R27474, R27175, U12547 AND 15H561)
12	AH97126	1	COVER	(4-WHEEL DRIVE), (USE WITH R27474 AND R26906), (SUB AH97301, R27474, R26906, R27175 AND U12547)
13	14H786	8	Nut	1/4"
13	12H302	8	Lock Washer	1/4"
13	14H785	8	Nut	5/16"
13	12H303	8	Lock Washer	5/16"
14	AH97300	1	Reservoir	(SUB AH114603)
14	AH114603	1	Reservoir	(USE WITH R26906, R27474, R27175, U12547 AND 15H561)
15	R27474	1	Drain Plug	-
16	R27175	1	Drain Plug	-
17	U12547	1	O-Ring	-
18	R26906	1	O-Ring	-
19	R27218	1	Fitting Plug	-
20	R26448	1	O-Ring	-
21	H78747	2	Strap	-

HYDROSTATIC DRIVE OIL RESERVOIR AND MOUNTING
