Hydrostatic Drive Lower Oil Lines and Hoses, Sundstrand ( - 556300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH96966	1	Hydraulic Hose	16 MM X 711 MM (5/8" I.D. X 28") LONG
2	H84515	1	Bracket	(NO LONGER AVAILABLE)
3	AH96952	1	Line	RETURN, COOLER
4	TY22467	1	Clamp	SUB FOR AR21839 OR AH103497
4	AH103497	2	Clamp	(SUB AH105968)
4	AH105968	2	Hose Clamp	-
5	AH95488	1	Fitting	-
6	R29936	2	O-Ring	-
7	AR26723	1	ELBOW FITTING	90°, (SUB AT32331)
7	AT32331	1	Elbow Fitting	90°
8	U12547	2	O-Ring	-
9	AH96997	1	Check Valve	-
10	R26906	3	O-Ring	-
11	24H1136	2	Washer	11/32" X 11/16" X 0.065"
12	AH77714	1	Clip	-
13	19H1900	1	Cap Screw	5/16" X 3/4"
13	12H303	1	Lock Washer	5/16"
13	14H785	1	Nut	5/16"
14	H76139	2	Screw	SELF-TAPPING
15	H99881	1	Hydraulic Hose	SUCTION
16	24H1293	2	Washer	11/32" X 1-1/16" X 0.120"
17	AH97654	1	Line	RETURN PUMP
18	AH77724	2	Clip	CUSHIONED
19	H96794	1	Bracket	(NO LONGER AVAILABLE)
20	H80240	1	Hose Fitting	STRAIGHT
21	AH78236	1	Hydraulic Hose	13 MM X 1320 MM (1/2" I.D. X 52") LONG
22	AH77924	1	Clip	CUSHIONED
23	R28782	1	O-Ring	-
24	AM30686	1	Fitting	(SUB T39220 AND R28782)
24	T39220	1	Fitting	(SUB H63599)
24	H63599	1	Union Fitting	-
25	R31147	1	Fitting	(SUB H102543, THIS APPLICATION), (NO LONGER AVAILABLE)
25	H102543	1	Fitting	37° FLARE, (NO LONGER AVAILABLE)
26	AH76990	1	Elbow Fitting	90°
27	AR26828	1	Elbow Fitting	45°
28	AH138689	1	Kit	-

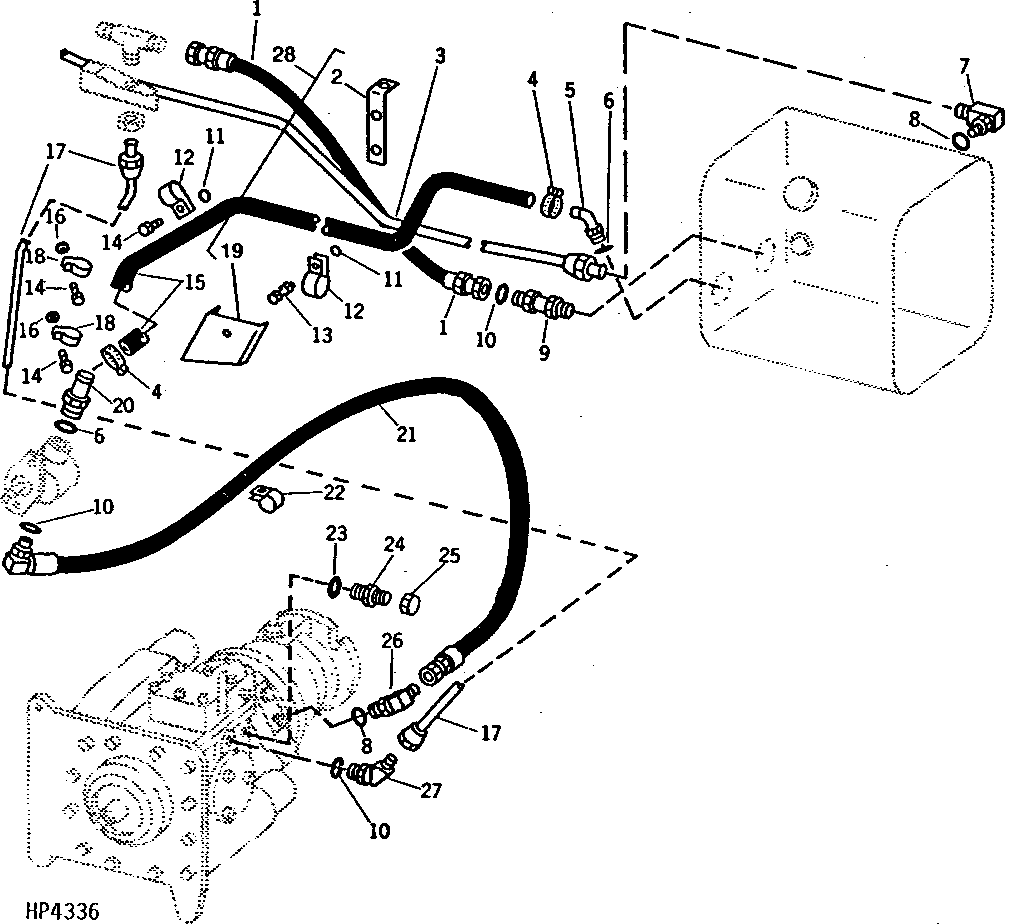

Hydrostatic Drive Lower Oil Lines and Hoses, Sundstrand ( - 556300)

Нет текстового описания
