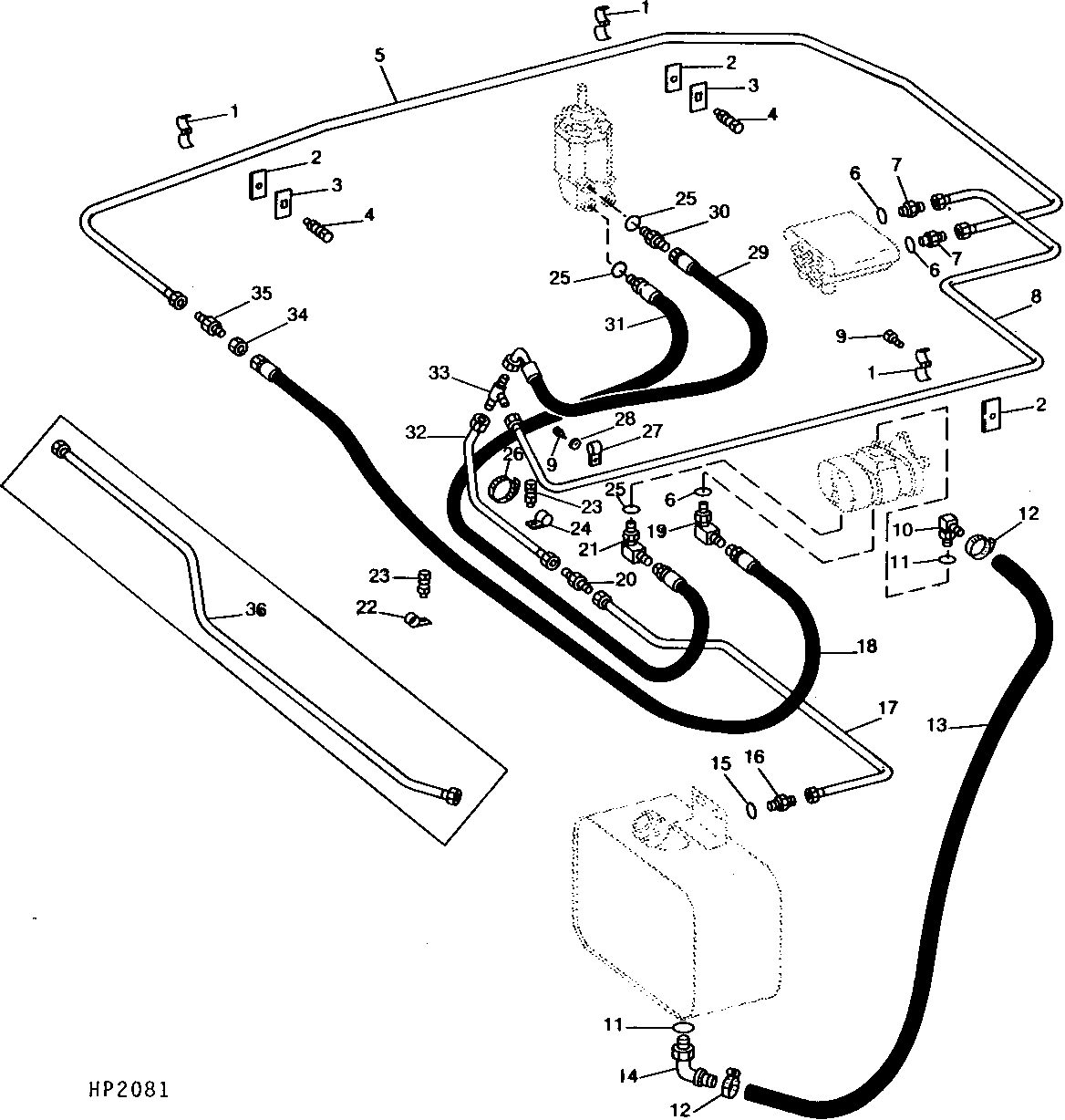

Hydraulic Oil Lines and Hoses, Main Pressure, Steering and Suction

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH97742	3	Clamp	-
2	H96857	3	Isolator	(INCLUDED IN KIT AH139151)
3	H97280	2	Strap	-
4	03H1709	2	Bolt	5/16" X 1"
4	12H303	2	Lock Washer	5/16"
4	14H785	2	Nut	5/16"
5	AH96766	1	Tube	(POSI-TORQ™ DRIVE)
5	AH96767	1	Tube	(HYDROSTATIC DRIVE)
6	R26906	3	O-Ring	-
7	R27270	2	Fitting	-
8	AH91327	1	Line	-
9	H65108	2	Screw	SELF-TAPPING
10	AH75162	1	Fitting	-
11	R29936	2	O-Ring	-
12	TY22467	1	Clamp	SUB FOR AR21839 OR AH103497
12	AH103497	2	Clamp	(SUB AH105968)
12	AH105968	2	Hose Clamp	-
13	H80124	1	Hose	25 MM X 965 MM (1" X 38") LONG
14	AH96708	1	Elbow Fitting	90°
15	U12547	1	O-Ring	-
16	R27267	1	Fitting	-
17	AH100279	1	Line	(SUB AH118838)
17	AH118838	1	Line	-
18	AH78291	1	Hydraulic Hose	(SUB AH115049, THIS APPLICATION AND AH77924)
18	AH115049	1	HYDRAULIC HOSE	13 MM X 1270 MM (1/2" I.D. X 50") LONG
19	AR26724	1	Elbow Fitting	90°
20	R27266	1	Fitting	-
21	AR26763	1	ELBOW FITTING	90°, (SUB AT32332)
21	AT32332	1	Elbow Fitting	90°
22	AH77724	1	Clip	-
22	AH77924	1	Clip	-
23	19H1900	2	Cap Screw	5/16" X 3/4"
23	12H303	2	Lock Washer	5/16"
23	14H785	2	Nut	5/16"
24	AH78237	1	Clamp	-
25	R26375	3	O-Ring	-
26	M66044	1	Tie Band	-
27	AH79175	1	Clip	-
28	24H1136	1	Washer	11/32" X 11/16" X 0.065"
29	AH97801	1	Hydraulic Hose	10 MM X 610 MM (3/8" X 24") LONG
30	R27237	1	Fitting	-
31	AH99353	1	Hydraulic Hose	10 MM X 1473 MM (3/8" X 58") LONG
32	AH97741	1	Line	-
33	H63602	1	Union Fitting	-
34	R26627	1	Nut	7/8", JAM
35	N112216	1	Fitting	-
36	AH94554	1	Tube	(SUB AH77924 AND AH115049)
