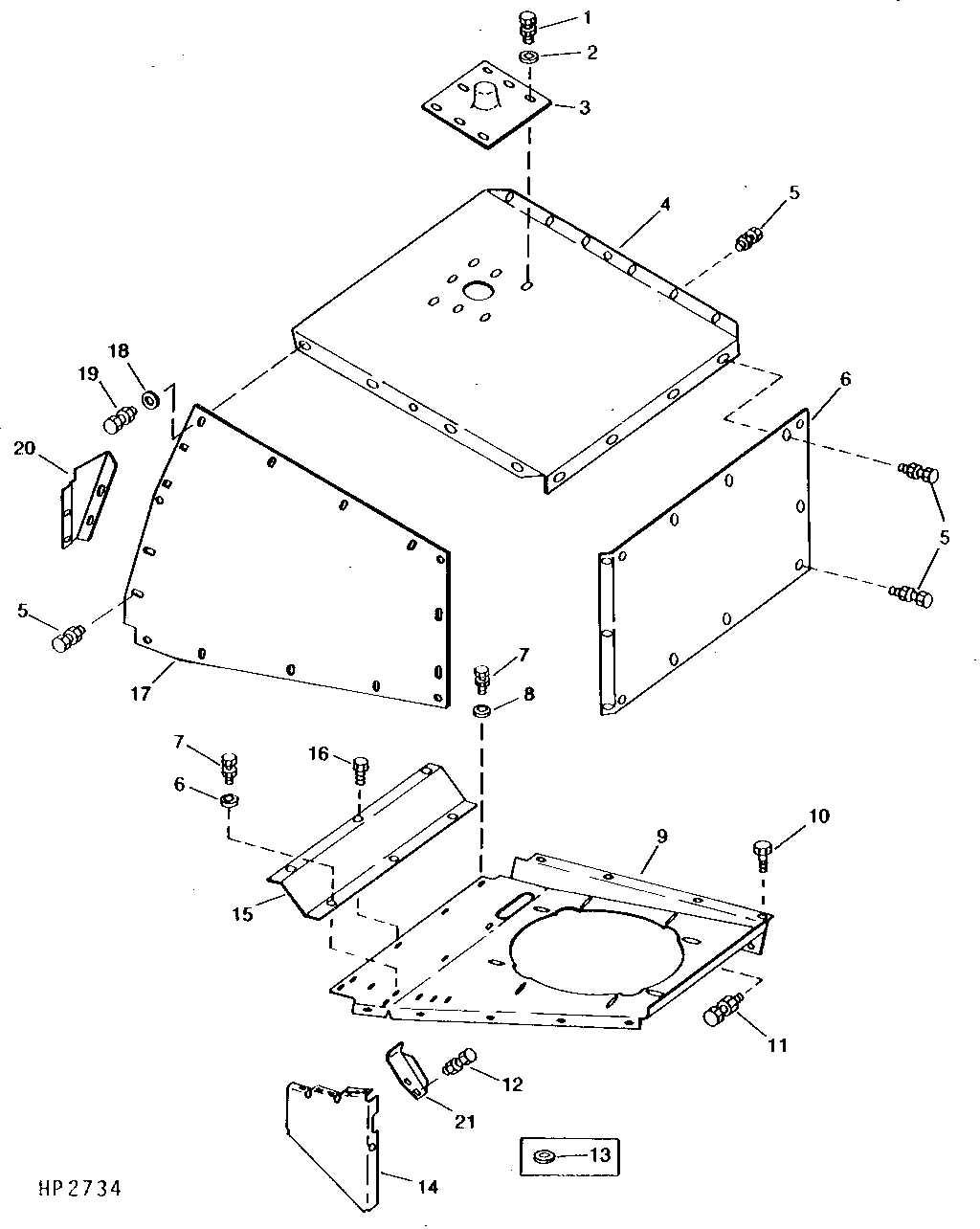

HORIZONTAL UNLOADING AUGER SWIVEL SHROUD

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N10215	6	Lock Nut	-
1	E55662	6	Flange Nut	-
1	19H1936	6	Cap Screw	3/8" X 3/4"
2	24H1305	6	Washer	13/32" X 13/16" X 0.065"
3	AH97804	1	Plate	WITH BUSHING
4	H98152	1	Sheet	TOP
5	A22698	35	Nut	-
5	N167650	35	Screw	-
5	N10213	40	Lock Nut	-
5	N10212	40	Self-Locking Screw	-
6	H98150	1	Sheet	FRONT
7	19H1900	7	Cap Screw	5/16" X 3/4"
7	N10213	7	Lock Nut	-
8	24H1136	7	Washer	11/32" X 11/16" X 0.065"
9	AH101530	1	Support	-
10	H76139	4	Screw	SELF-TAPPING
11	E55662	5	Flange Nut	-
11	19H3411	5	Screw	3/8" X 1-1/8"
11	N10214	5	Self-Locking Screw	5/16" X 1-1/8"
11	N10215	5	Lock Nut	-
12	N10214	6	Self-Locking Screw	-
12	N10215	6	Lock Nut	-
12	19H3411	6	Screw	3/8" X 1-1/8"
12	E55662	6	Flange Nut	-
13	24H1305	6	Washer	13/32" X 13/16" X 0.065"
14	H102052	1	Support	LH, (SUB H115727)
14	H115727	1	Support	LH
15	H99904	1	Plate	-
16	H65108	10	Screw	-
17	H99902	1	Sheet	(SUB H131585 AND H131588)
17	H131588	1	Sheet	SIDE, (USE WITH H131585)
18	24H1136	5	Washer	11/32" X 11/16" X 0.065"
19	19H1905	5	Cap Screw	5/16" X 1"
19	12H303	5	Lock Washer	5/16"
19	14H785	5	Nut	5/16"
20	H99787	1	Cover	(SUB H131585 AND H131588)
20	H131585	1	Bracket	(USE WITH H131588)
21	H132063	1	Bracket	-

HORIZONTAL UNLOADING AUGER SWIVEL SHROUD
