Открытый узел

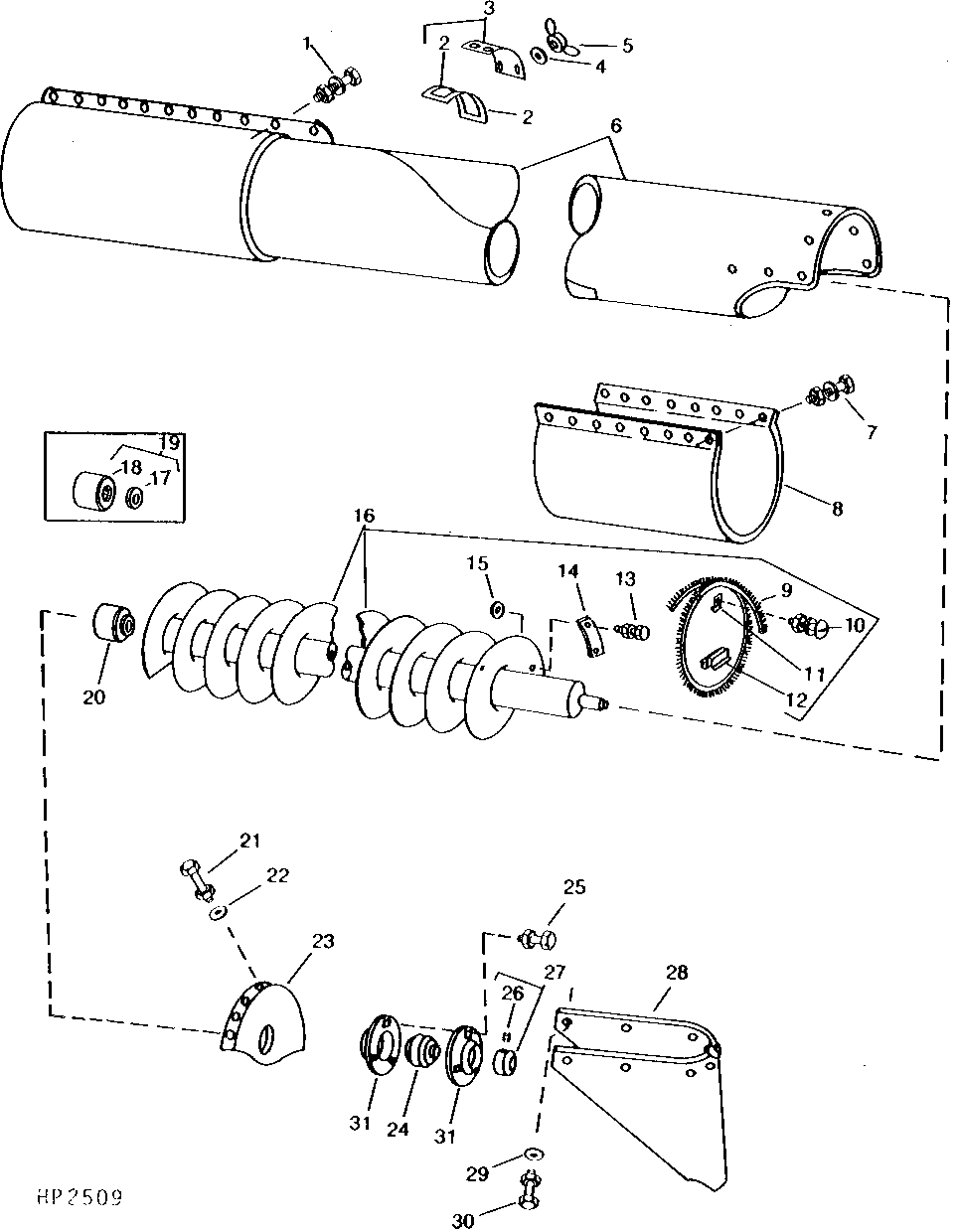

Horizontal Unloading Auger and Housing, 14 ft and 17 ft

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1849	11	Cap Screw	5/16" X 1-1/4"
1	19H2117	11	Cap Screw	5/16" X 1-1/8", 5/16" X 1-1/8"
1	14H785	11	Nut	5/16"
1	12H303	11	Lock Washer	5/16"
2	-	1	Part 5	USE WITH H96652, MF H81330
3	H96652	1	Door	USE WITH AH112865 AND AH113392
3	AH106900	1	Door	-
4	24M7207	4	Washer	8.400 X 24 X 2 mm, USE WITH H96652 AND AH106900
5	14H819	4	Wing Nut	5/16", USE WITH H96652 AND AH106900
6	AH129066	1	Housing	14 ft, ORDER AH145049, SUB FOR AH95391
6	AH145049	1	Housing	12 ft
6	AH95390	1	Housing	12 ft, Solid ORDER AH112865, AH106900, (4) 24M7207, (4) 14H819 AND H81330
6	AH145050	1	Housing	15 ft, Solid SUB FOR AH112865
6	AH128682	1	Housing	14 ft, Perforated ORDER AH140335, SUB FOR AH98805
6	AH140335	1	Housing	12 ft
6	AH98806	1	Housing	ORDER AH113392, AH106900, (4) 24M7207 AND (4) 14H819
6	AH113392	1	Housing	20 ft, Perforated
7	19H1900	7	Cap Screw	5/16" X 3/4"
7	14H785	7	Nut	5/16"
7	12H303	7	Lock Washer	5/16"
8	H100027	1	Cover	Use W/ Perforated Auger Housing
9	AH111354	1	Seal	-
10	21H1304	3	Screw	5/16" X 3/4"
10	12H303	3	Lock Washer	5/16"
10	14H785	3	Nut	5/16"
11	H113717	3	Clip	-
12	H114709	6	Clip	-
13	03H1495	1	Bolt	3/8" X 1-1/2"
13	03H1557	1	Bolt	3/8" X 1-1/4"
13	H99923	1	Lock Nut	-
14	H119568	1	Strip	-
14	H119566	1	Strip	-
14	H119567	1	Strip	-
15	24H1300	1	Washer	25/64" X 2" X 0.220"
15	24H1311	1	Washer	13/32" X 1-1/4" X 0.220"
16	AH143731	1	Auger	14 ft, SUB FOR AH123436 OR AH112451 OR AH97026
16	AH143729	1	Auger	17 ft, SUB FOR AH113501 OR AH123437 OR AH96555
17	24H900	1	Washer	11/16" X 1-3/4" X 0.194", 14 ft
18	H116292	1	Splined Coupling	14 ft
19	AH112452	1	Gudgeon	14 ft
20	AH122717	1	Gudgeon	14 ft
20	H127921	1	Splined Coupling	17 ft, W/O Washer
21	A22698	5	Nut	-
21	N167650	5	Screw	-
21	N10213	5	Lock Nut	-
21	N10213	11	Lock Nut	-
21	19H1900	11	Cap Screw	5/16" X 3/4"
21	N10212	5	Self-Locking Screw	-
22	24H1136	11	Washer	11/32" X 11/16" X 0.065"
23	H96645	1	Cap	-
24	AH214862	1	Ball Bearing	SUB FOR JD9273 OR AH169077
24	JD8665	1	Ball Bearing	-
25	14H785	3	Nut	5/16"
25	12H303	3	Lock Washer	5/16"
25	03H1709	3	Bolt	5/16" X 1"
26	22H897	1	Set Screw	1/4" X 1/4"
27	JD8554	1	Eccentric Locking Collar	-
28	H149780	1	Spout	SUB FOR H109093 OR H141449
29	24M7024	6	Washer	9 X 28 X 3 mm
30	19H1905	8	Cap Screw	5/16" X 1"
30	N10213	8	Lock Nut	-
30	A22698	8	Nut	-
31	C13434	2	PRESSED FLANGED HOUSING	-
31	H103264	2	Pressed Flanged Housing	-

Horizontal Unloading Auger and Housing, 14 ft and 17 ft

Нет текстового описания
