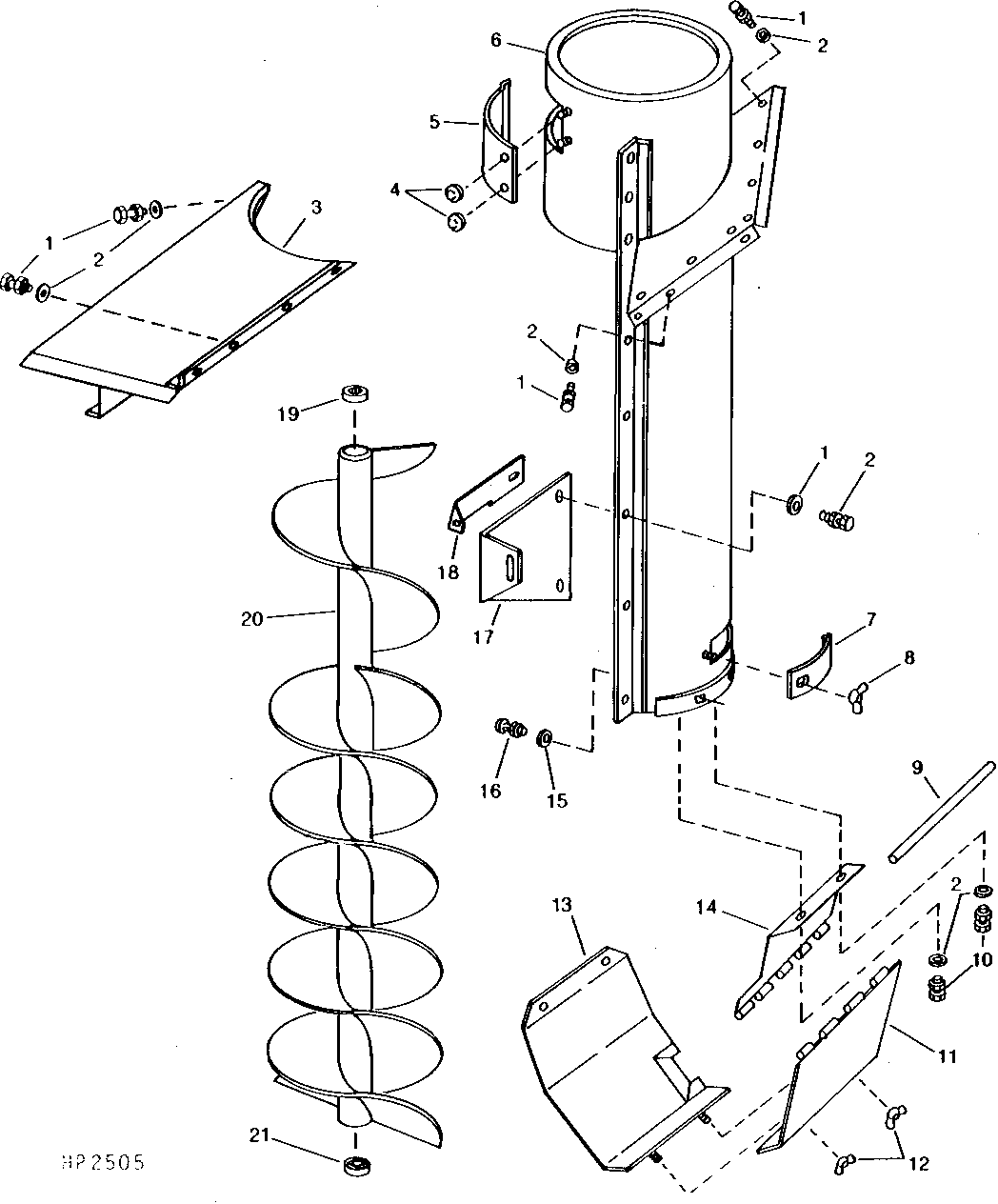

GRAIN TANK VERTICAL AUGER AND HOUSING

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N10213	31	Lock Nut	-
1	19H1900	31	Cap Screw	5/16" X 3/4"
2	24H1136	34	Washer	11/32" X 11/16" X 0.065"
3	H100561	1	Cover	(SUB H104834)
3	H104834	1	Cover	-
4	A22698	2	Nut	-
5	H96579	1	Door	INSPECTION
6	AH112734	1	Housing	(INCLUDES H209453)
6	AH114742	1	Housing	(SUB AH112734)
6	AH111469	1	Housing	-
6	AH96974	1	Housing	(SUB AH111469 AND H113718)
7	H113718	1	Door	-
8	14H819	1	Wing Nut	5/16"
9	H98895	1	Dowel Pin	-
10	19H1990	2	Cap Screw	1/2" X 2-1/4"
10	12H303	2	Lock Washer	5/16"
11	H98892	1	Door	LOWER SHIELD
12	14H819	2	Wing Nut	5/16"
13	AH97636	1	Shield	LOWER
14	H98891	1	Hinge	LOWER SHIELD
15	24H1682	3	Washer	13/32" X 7/8" X 0.120"
16	03H1557	3	Bolt	3/8" X 1-1/4"
16	12H304	3	Lock Washer	3/8"
16	14H812	3	NUT	3/8"
16	19H1800	1	Cap Screw	3/8" X 1-1/2"
16	N10215	1	Lock Nut	-
17	H98887	1	Support	-
18	H106088	1	Bracket	-
19	H96754	1	Splined Coupling	(USE WITH AH114741)
19	H128861	1	Splined Coupling	-
20	AH96529	1	Auger	(SUB AH111390)
20	AH111390	1	Auger	(SUB AH114741)
20	AH114741	1	Auger	(SUB AH123929)
20	AH123929	1	Auger	(INCLUDES H128861)
21	AH95461	1	Hydr. Quick Coupler Socket	(SUB AH123930, THIS APPLICATION)
21	AH123930	1	Hydr. Quick Coupler Socket	-

GRAIN TANK VERTICAL AUGER AND HOUSING
