GRAIN TANK INNER UNLOADING AUGER COVERS AND CHANNELS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H65108	19	Screw	SELF-TAPPING
2	H101591	5	Plate	-
3	N10212	7	Self-Locking Screw	-
3	N10213	7	Lock Nut	-
4	H99559	1	Cover	(SUB H102418)
4	H102418	1	Cover	FRONT
5	24H1136	6	Washer	11/32" X 11/16" X 0.065"
6	19H1900	6	Cap Screw	5/16" X 3/4"
6	12H303	6	Lock Washer	5/16"
7	AH101933	1	Channel	LH
8	AH101301	2	Channel	-
9	19H1901	3	Cap Screw	5/16" X 2"
9	12H303	3	Lock Washer	5/16"
9	14H785	3	Nut	5/16"
10	21H1075	2	Screw	5/16" X 1"
10	N10213	2	Lock Nut	-
11	AH98193	1	Angle	REAR
12	H102050	1	Bracket	-
13	19H1901	1	Cap Screw	5/16" X 2"
13	12H303	1	Lock Washer	5/16"
13	14H785	1	Nut	5/16"
14	19H1936	1	Cap Screw	3/8" X 3/4"
14	N10215	1	Lock Nut	-
15	H99585	1	Cover	(SUB H104910)
15	H104910	1	Cover	REAR
16	H102420	2	Cover	ADJUSTABLE, FRONT, (USE WITH H102418)
17	H102421	4	Cover	ADJUSTABLE, FRONT, (USE WITH H102418)
18	03H1540	1	Bolt	5/16" X 3/4", (USE WITH H102418, H109241 AND H109243)
18	N10213	1	Lock Nut	-
19	24H1293	1	Washer	11/32" X 1-1/16" X 0.120", (USE WITH H102418, H109241 AND H109243)
20	N10212	20	Self-Locking Screw	-
20	N71292	20	SELF-LOCKING SCREW	-
20	N10213	20	Lock Nut	-

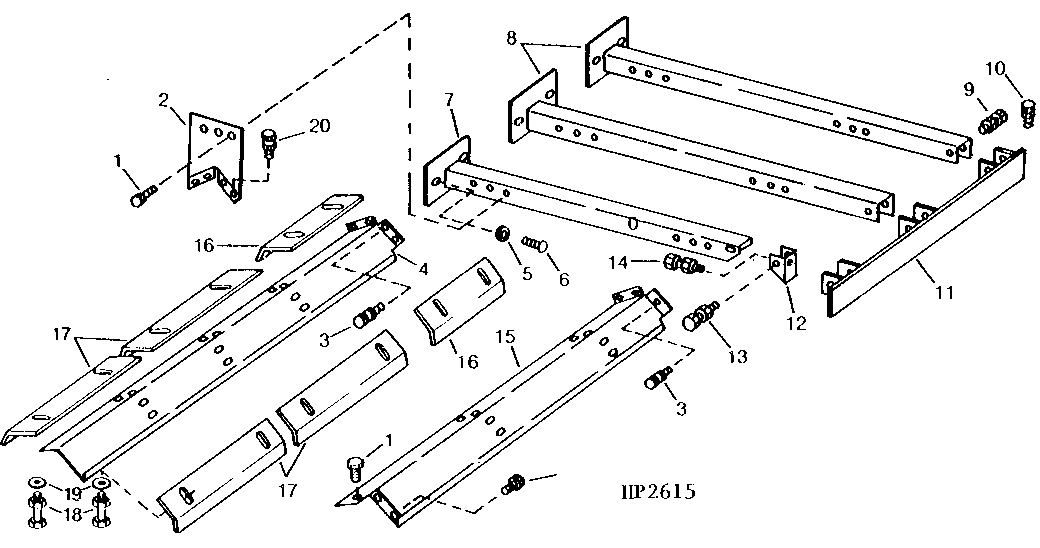

GRAIN TANK INNER UNLOADING AUGER COVERS AND CHANNELS
