Fuel Filters (6466TH 01, 02), Engine Serial Number ( - 299563)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R50427	1	SUPPORT	(SUB RE24359), (ALSO ORDER (2) 12H293)
2	AR54590	1	HOUSING	-
2	R76191	1	HOUSING	-
3	AR85332	1	HOSE	(SUB RE41171, THIS APPLICATION, R51133, R83490 AND R53899)
4	R50201	1	FITTING	-
5	AR94234	1	FUEL LINE	(SUB RE41171, THIS APPLICATION, R51133, R83490 AND R53899), (SUB FOR AR85334)
6	AR85334	1	Fuel Line	(SUB RE41171, THIS APPLICATION, R51133, R83490 AND R53899), (SUB AR94234)
6	AR94234	1	FUEL LINE	-
7	AR85331	1	KIT	(SUB RE41171, THIS APPLICATION, R51133, R83490 AND R53899)
8	AR73822	1	FUEL LINE	(SUB AR88901)
9	AR88901	1	LINE	-
10	T13814	1	Clamp	(SUB FOR T30367, THIS APPLICATION)
11	24H1305	5	Washer	13/32" X 13/16" X 0.065"
12	-	1	Part 14	(SUB AR73888)
13	12H303	4	Lock Washer	5/16"
14	19H1905	4	Cap Screw	5/16" X 1"
15	R66821	2	CLAMP	(SUB FOR R57258)
16	AR86745	2	Filter Element	(MARKED AR86745 OR RE10104), (SUB FOR AR50041, THIS APPLICATION)
17	R48071	2	DRAIN PLUG	-
18	R34447	2	WASHER	-
19	15H559	1	Pipe Plug	1/4"
20	R50426	1	WASHER	-
21	R50425	1	DRAIN PLUG	-
22	19H2500	2	CAP SCREW	7/16" X 1-3/8"
23	12H293	2	Lock Washer	7/16"
24	24H1323	2	Washer	15/32" X 13/16" X 0.090"

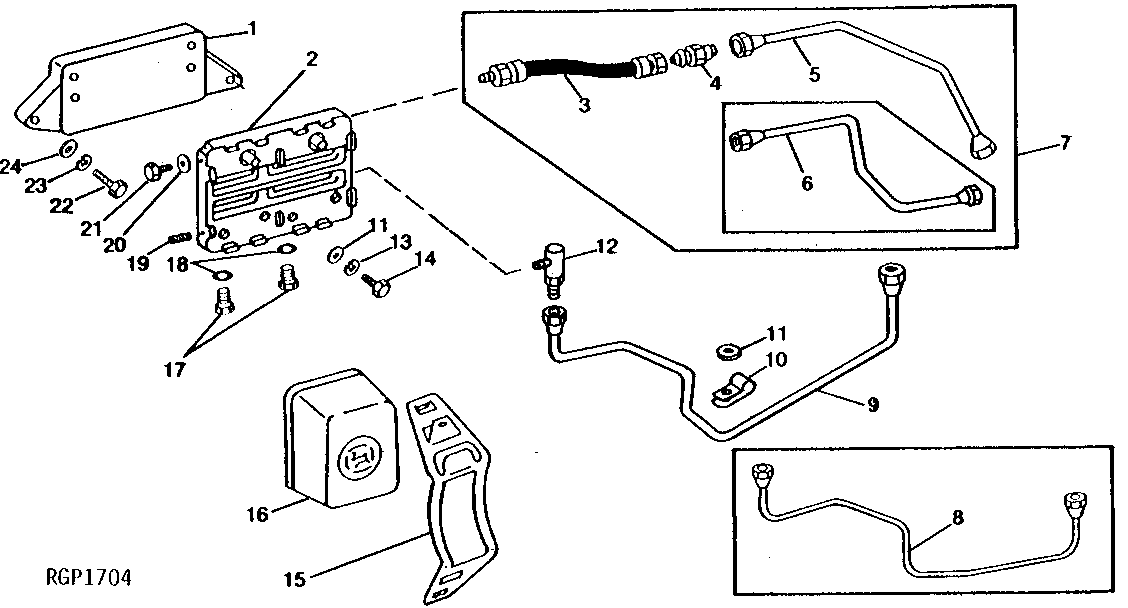

Fuel Filters (6466TH 01, 02), Engine Serial Number ( - 299563)
