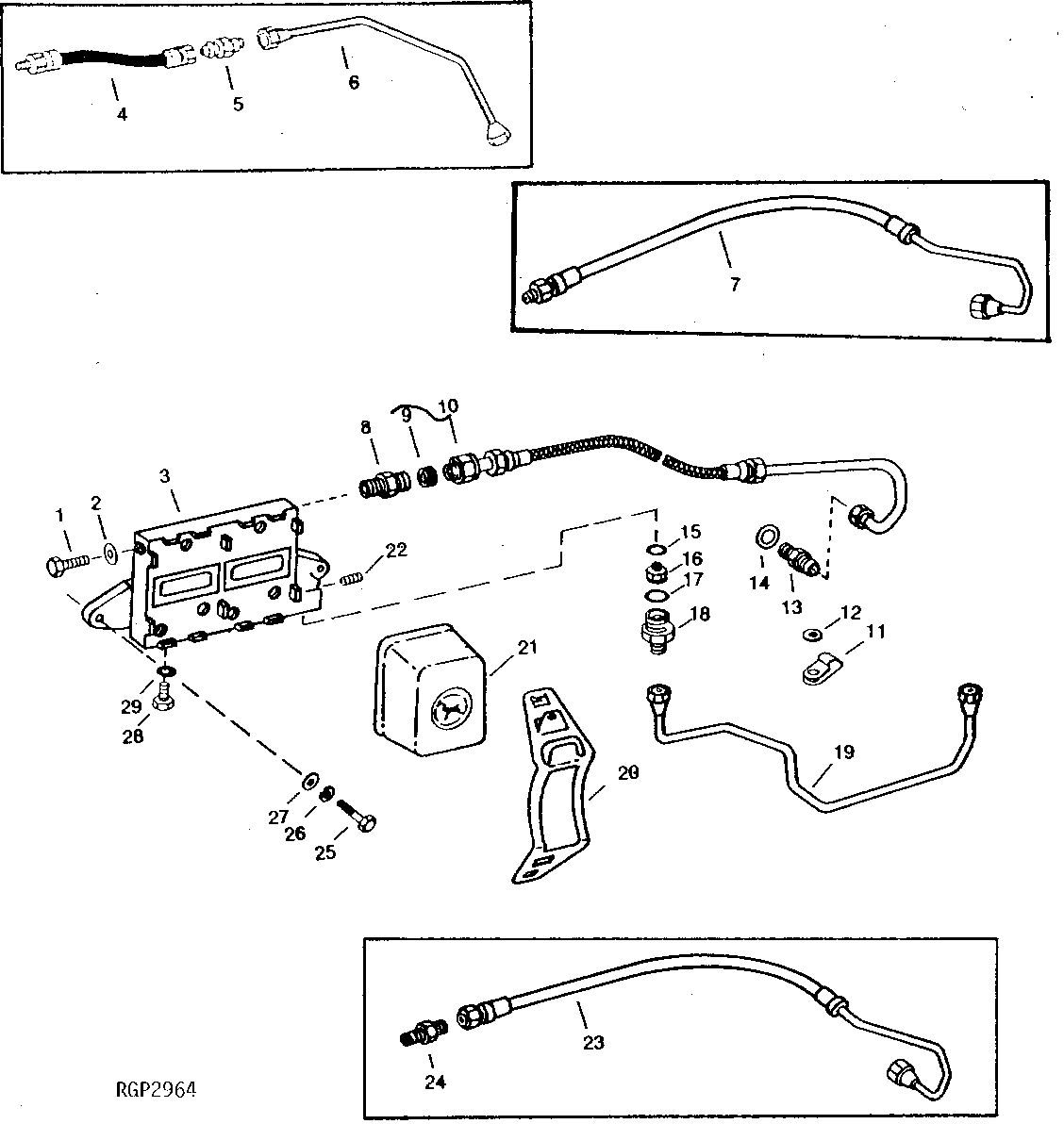

Fuel Filter and Fuel Pipes, Engine Serial Number (299564 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R50425	1	DRAIN PLUG	-
2	R50426	1	WASHER	-
3	R81459	1	BASE	-
4	AR85332	1	HOSE	(SUB RE41171, THIS APPLICATION, R51133, R83490 AND R53899)
5	R50201	1	FITTING	-
6	AR94234	1	FUEL LINE	(SUB RE41171, THIS APPLICATION, AND R51133, R83490 AND R53899)
7	RE23155	1	FUEL LINE	(SUB RE41171, THIS APPLICATION AND R51133)
8	R51133	1	Fitting	(USE WITH RE38326, RE37340 OR RE41171)
9	R67092	1	Sealing Washer	-
10	RE28950	1	FUEL LINE	(SUB FOR AR85332, RE23155 OR RE35246), (SUB RE41171, THIS APPLICATION), (SUB RE38326)
10	RE37340	1	FUEL LINE	(SUB RE41171)
10	RE41171	1	FUEL LINE	-
10	RE38326	1	FUEL LINE	-
11	T13814	1	Clamp	(SUB FOR T30367)
12	24H1305	1	Washer	13/32" X 13/16" X 0.065"
13	R83489	1	Fitting	-
14	51M4237	1	Sealing Ring	(SUB FOR R53901)
15	R375R	1	O-Ring	-
16	AR73824	1	CHECK VALVE	-
17	P46051	1	O-Ring	-
18	R81460	1	FITTING	-
19	AR88901	1	LINE	-
20	R66821	2	CLAMP	-
21	AR86745	2	Filter Element	(MARKED AR86745 OR RE10104)
22	15H558	1	Pipe Plug	1/8"
23	RE35246	1	FUEL LINE	(SUB RE41171, THIS APPLICATION AND R51133)
24	R26892	1	Fitting	-
25	19H2500	2	CAP SCREW	7/16" X 1-3/8"
26	12H293	2	Lock Washer	7/16"
27	24H1325	2	Washer	15/32" X 59/64" X 0.065"
28	R48071	2	DRAIN PLUG	-
29	R34447	2	WASHER	-

Fuel Filter and Fuel Pipes, Engine Serial Number (299564 - )
