FINAL DRIVE PINION, DRIVE SHAFTS, AND BEARINGS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD8285	2	Bearing Cup	-
2	JD7222	2	Bearing Cone	-
3	H85817	1	Pinion	Z=11, (FOR 32" TIRES ONLY)
3	H114203	1	Pinion Shaft	Z=10, (FOR 32" TIRES ONLY)
3	H85817	1	Pinion	Z=11, (FOR 26" AND 32" TIRES)
4	AH81622	1	Seal	-
5	H85872	1	Splined Coupling	(SUB H106340 AND 34H386)
5	H106340	1	Coupling	(SUB H106283)
5	H106283	1	Splined Coupling	-
6	19H1944	1	Cap Screw	3/8" X 2-3/4", (USE WITH H106283)
6	H99923	1	Lock Nut	(USE WITH H106283)
6	34H386	1	Spring Pin	1/4" X 2"
6	34H318	1	Spring Pin	1/4" X 1-7/8"
7	H104544	1	Shaft	(SUB H123614)
7	H85875	1	Drive Shaft	(SUB H104542)
7	H104542	1	Shaft	(SUB H123612)
7	H123612	1	Drive Shaft	LH, (HYDROSTATIC DRIVE), (TIRES)
7	H85880	1	Drive Shaft	(SUB H104545)
7	H104545	1	Shaft	(SUB H123615)
7	H123615	1	Drive Shaft	RH,(HYDROSTATIC DRIVE), (4 AND 5 ROLLER TRACKS)
7	H85882	1	Drive Shaft	(SUB H104547)
7	H104547	1	Shaft	(SUB H123617)
7	H123617	1	Drive Shaft	LH, (HYDROSTATIC DRIVE), (4 AND 5 ROLLER TRACKS)
7	H113893	1	Shaft	RH, (HYDROSTATIC DRIVE), (6 ROLLER TRACKS), (PLANETARY FINAL DRIVE), (SUB H123625)
7	H123625	1	Drive Shaft	RH, (HYDROSTATIC DRIVE), (6 ROLLER TRACKS), (PLANETARY FINAL DRIVE)
7	H104555	1	Shaft	LH, (HYDROSTATIC DRIVE), (6 ROLLER TRACKS), (PLANETARY FINAL DRIVE)
7	H123622	1	Drive Shaft	LH, (HYDROSTATIC DRIVE), (6 ROLLER TRACKS), (PLANETARY FINAL DRIVE)
7	H85877	1	Drive Shaft	(SUB H104544)
7	H85874	1	Drive Shaft	(SUB H104541)
7	H104541	1	Shaft	RH, (POSI-TORQ™), (TIRES)
7	H123611	1	Drive Shaft	RH, (POSI-TORQ™), (TIRES)
7	H85876	1	Drive Shaft	(SUB H104543)
7	H104543	1	Shaft	(SUB H123613)
7	H123613	1	Drive Shaft	LH, (POSI-TORQ™), (TIRES)
7	H104546	1	Shaft	RH, (POSI-TORQ™), (4 AND 5 ROLLER TRACKS)
7	H123616	1	Drive Shaft	(SUB H123616)
7	H85883	1	Drive Shaft	(SUB H104548)
7	H104548	1	Shaft	(SUB H123618)
7	H123618	1	Drive Shaft	LH, (POSI-TORQ™), (4 AND 5 ROLLER TRACKS)
7	H123614	1	Drive Shaft	RH, (HYDROSTATIC DRIVE), (TIRES)
7	H85881	1	Drive Shaft	(SUB H104546)
8	H85872	1	Splined Coupling	(SUB H106283, H106284 AND 19H2023)
8	H106283	1	Splined Coupling	-
9	19H2335	1	Cap Screw	1/4" X 2-3/4"
9	H99923	1	Lock Nut	-
9	P43893	1	LOCK NUT	-
9	19H2023	1	CAP SCREW	3/8" X 3-1/4"
9	19H2128	1	CAP SCREW	3/8" X 3"
10	H75723	2	Washer	-
10	H102695	2	Washer	-
11	H85873	1	Spacer	-
11	H102696	1	Spacer	-
11	H106284	1	Spacer	-

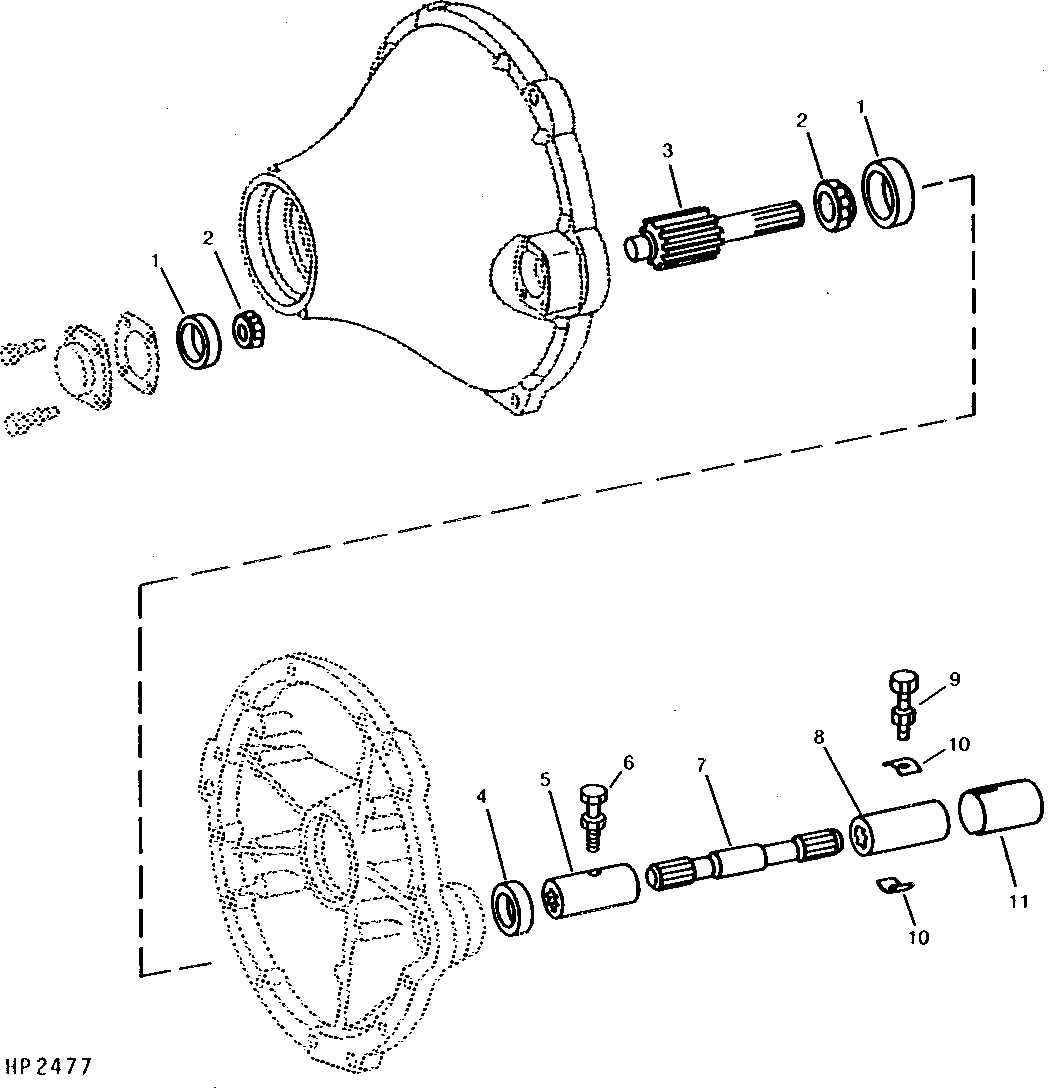

FINAL DRIVE PINION, DRIVE SHAFTS, AND BEARINGS
