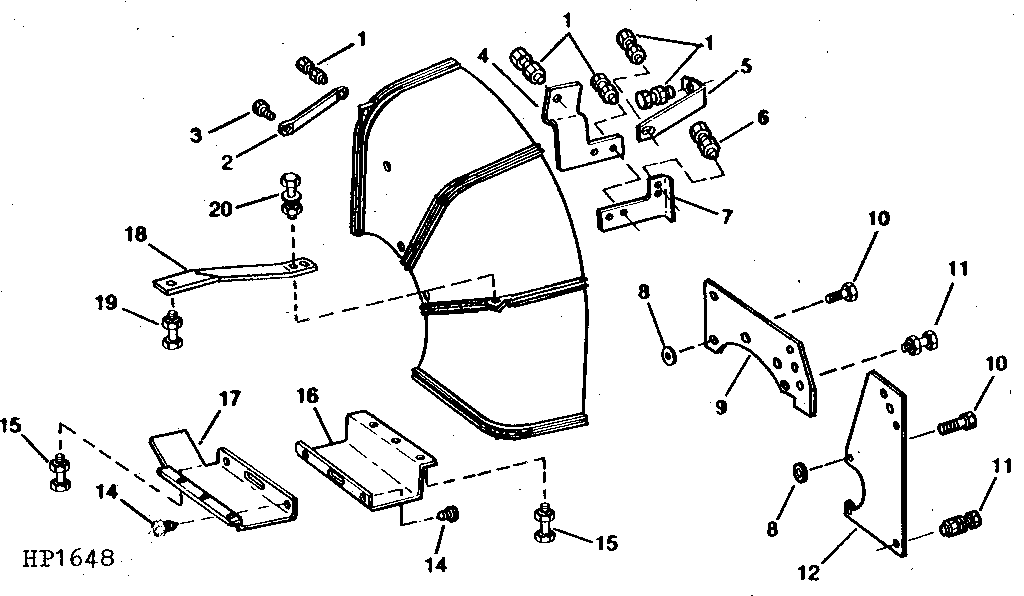

Fenders, Extra Heavy Duty Final Drive (556301 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	8	Lock Washer	3/8"
1	14H812	8	NUT	3/8"
1	19H1731	8	Cap Screw	3/8" X 1"
2	H93222	2	Brace	(NO LONGER AVAILABLE)
3	19H1815	1	Cap Screw	1/2" X 1-1/4"
3	12H301	1	Lock Washer	1/2"
3	14H1040	1	Nut	1/2"
4	H93221	1	Brace	(LH), (NO LONGER AVAILABLE)
5	H131869	1	Bracket	(USE WITH 32" TIRES), (NO LONGER AVAILABLE)
5	H94091	1	Bracket	(USE WITH 32" TIRES), (SUB H131869, (NO LONGER AVAILABLE))
5	H93223	1	Bracket	(USE WITH 26" TIRES)
6	19H2128	2	CAP SCREW	3/8" X 3"
6	12H304	2	Lock Washer	3/8"
6	14H812	2	NUT	3/8"
7	H94621	1	Bracket	-
8	24H1788	10	WASHER	17/32" X 1-1/8" X 0.060"
9	H111067	2	Support	(UPPER), (NO LONGER AVAILABLE)
10	19H1930	10	Cap Screw	1/2" X 2-1/2"
11	19H1815	8	Cap Screw	1/2" X 1-1/4"
11	14H1040	8	Nut	1/2"
11	12H301	8	Lock Washer	1/2"
12	H111066	2	Support	(LOWER) (NO LONGER AVAILABLE)
13	AH109210	1	Fender	(RH), (NO LONGER AVAILABLE)
13	AH101630	1	Fender	(LH), (SUB AH127368, (NO LONGER AVAILABLE))
13	AH127368	1	Fender	(LH), (NO LONGER AVAILABLE)
14	H76139	6	Screw	-
15	19H1905	6	Cap Screw	5/16" X 1"
15	12H303	6	Lock Washer	5/16"
15	14H785	6	Nut	5/16"
16	H93220	1	Shield	(RH)
17	H93226	1	Shield	(LH), (NO LONGER AVAILABLE)
18	H111074	1	Strap	(RH), (NO LONGER AVAILABLE)
19	19H1925	1	Cap Screw	3/8" X 4-1/4"
19	N10215	1	Lock Nut	-
20	19H1732	1	Cap Screw	3/8" X 1-1/4"
20	N10215	1	Lock Nut	-

Fenders, Extra Heavy Duty Final Drive (556301 - )
