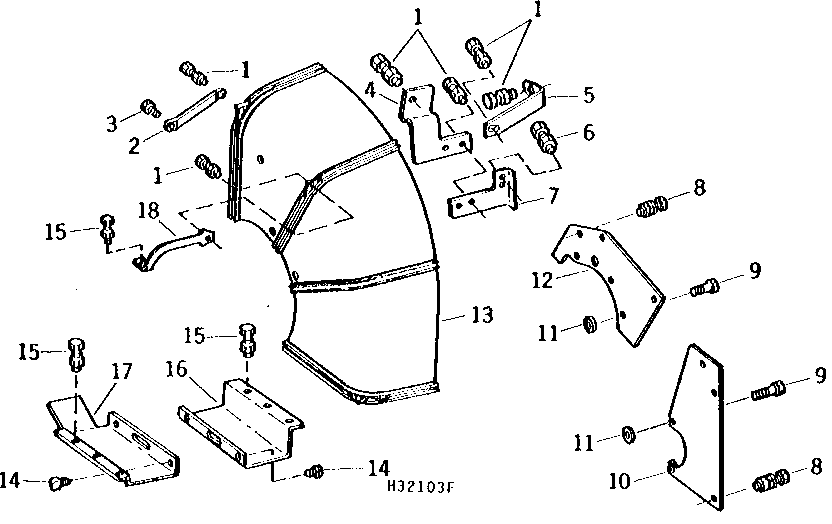

Fenders, Extra Heavy Duty Final Drive ( - 556300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	8	Lock Washer	3/8"
1	14H812	8	NUT	3/8"
1	19H1731	8	Cap Screw	3/8" X 1"
2	H93222	2	Brace	(NO LONGER AVAILABLE)
3	19H1815	1	Cap Screw	1/2" X 1-1/4"
3	12H301	1	Lock Washer	1/2"
3	14H1040	1	Nut	1/2"
4	H93221	1	Brace	(LH), (NO LONGER AVAILABLE)
5	H93223	1	Bracket	(USE WITH 26" TIRES), (NO LONGER AVAILABLE)
5	H131869	1	Bracket	(USE WITH 32" TIRES), (SUB FOR H94091)
6	19H2128	2	CAP SCREW	3/8" X 3"
6	12H304	2	Lock Washer	3/8"
6	14H812	2	NUT	3/8"
7	H94621	1	Bracket	-
8	14H1040	8	Nut	1/2"
8	19H1815	8	Cap Screw	1/2" X 1-1/4"
8	12H301	8	Lock Washer	1/2"
9	19H1930	10	Cap Screw	1/2" X 2-1/2"
10	H93225	2	Support	(SUB H111066)
10	H111066	2	Support	(LOWER), (NO LONGER AVAILABLE)
11	24H1788	10	WASHER	17/32" X 1-1/8" X 0.060"
12	H93224	2	Support	(SUB H111067), (NO LONGER AVAILABLE)
12	H111067	2	Support	UPPER, (NO LONGER AVAILABLE)
13	AH92577	1	Fender	(RH), (NO LONGER AVAILABLE)
13	AH127368	1	Fender	(LH), (SUB FOR AH101630, (NO LONGER AVAILABLE))
13	AH92577	2	Fender	(NO LONGER AVAILABLE)
14	H76139	6	Screw	SELF-TAPPING
15	19H1905	7	Cap Screw	5/16" X 1"
15	12H303	7	Lock Washer	5/16"
15	14H785	7	Nut	5/16"
16	H93220	1	Shield	(RH), (NO LONGER AVAILABLE)
17	H93226	1	Shield	(LH), (NO LONGER AVAILABLE)
18	H93228	1	Brace	(RH)
