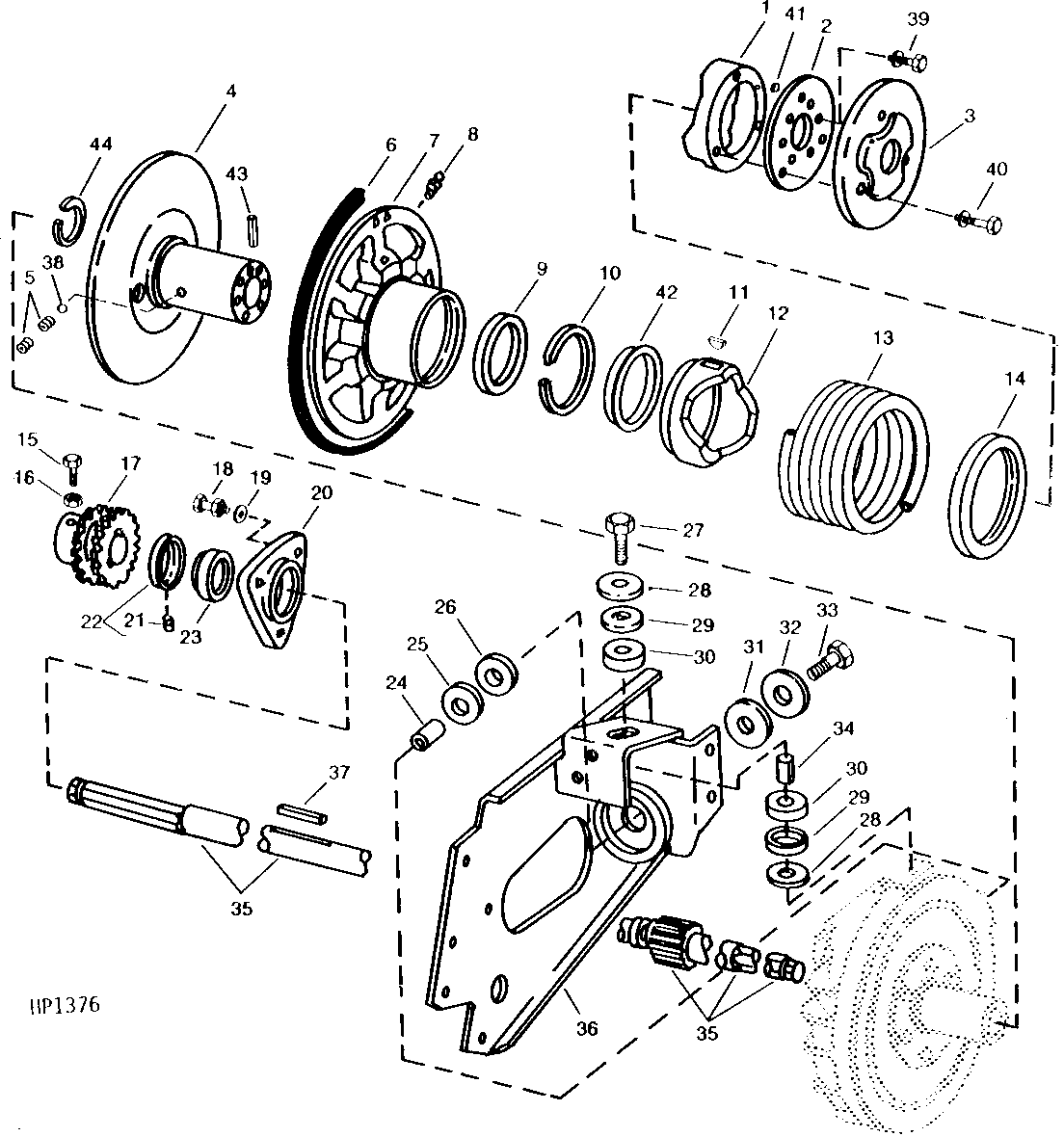

FEEDER HOUSE LOWER SHAFT, SHEAVE, AND MOUNTINGS (VARIABLE DRIVE)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H107734	1	Cam	(SUB FOR H97327)OUTER
2	H107793	1	Washer	(SUB FOR H93369)
3	H93368	1	Retainer	-
4	H93189	1	Half Sheave	(SUB H108673 WITH 34H305)
4	H108673	1	Pulley	(SUB H168126)INNER
4	H168126	1	Pulley	(ALSO ORDER (6) 19M7938 AND (6) 12M7135)
5	22H975	2	Set Screw	5/16" X 5/16", (BOTTOM)
5	22H975	2	Set Screw	5/16" X 5/16", (TOP)
5	22H775	2	Set Screw	5/16" X 1/4", (TOP)
6	H110921	1	V-Belt	(SUB FOR H91814)
7	H107735	1	Half Sheave	(SUB FOR H97329)
8	JD7759	2	Lubrication Fitting	-
8	JD7798	2	Lubrication Fitting	-
9	AH108161	1	Seal	(SUB FOR T53732)
10	H97308	1	Snap Ring	-
11	26H41	1	SHAFT KEY	5/16" X 2-1/8"
12	H97326	1	Cam	(SUB H107733 AND H110728)
12	H107733	1	Cam	INNER
13	H172267	1	Compression Spring	(SUB FOR H92260)
14	AH96345	1	Seal	-
15	H82306	1	Screw	-
16	14H732	1	Nut	3/8"
17	AH84245	1	Chain Sprocket	Z=18 AND Z=23
17	AH92645	1	Chain Sprocket	Z=15 AND Z=20
18	19H1732	3	Cap Screw	3/8" X 1-1/4"
18	12H304	3	Lock Washer	3/8"
18	14H812	3	NUT	3/8"
19	24H1305	1	Washer	13/32" X 13/16" X 0.065"
20	H93927	1	Housing	(SUB FOR H75896)
21	-	1	Part 30	-
22	JD9201	1	Eccentric Locking Collar	-
23	JD9202	1	Ball Bearing	-
24	H95417	1	Spacer	-
25	H97410	1	Washer	-
26	R62502	1	Support	RUBBER
27	19H1863	1	Cap Screw	5/8" X 3"
28	P50456	2	Washer	-
29	H78856	2	RETAINER	STEEL
30	H80197	1	BUSHING	RUBBER
31	T55761	1	Support	RUBBER
32	R20136	1	Washer	-
33	19H1950	1	Cap Screw	5/8" X 3-3/4"
34	H85482	1	Bushing	-
35	AH97642	1	Shaft	-
36	AH96138	1	Support	GEAR CASE
37	-	1	Part 46	(3/8" X 3/8" X 1-7/8"), (CUT FROM H64376 IN AH64587 KEY STOCK KIT)
38	H871R	2	Ball	-
38	H110922	1	Ball	-
39	19H1936	6	Cap Screw	3/8" X 3/4", (USE WITH H108673)
39	12H304	6	Lock Washer	3/8", (USE WITH H108673)
39	19M7938	6	Cap Screw	M10 X 20, (USE WITH H168126)
39	12M7135	6	Lock Washer	10 mm, (USE WITH H168126)
40	19H3034	3	Cap Screw	3/8" X 3"
40	12H304	3	Lock Washer	3/8"
41	32243	1	Plug	-
42	H110728	1	Round Retainer	-
43	34H305	1	Spring Pin	7/32" X 2", USE WITH H108673 OR DRILL TO 6MM FOR 34M7255
43	34M7255	1	Spring Pin	6 X 50 mm, USE WITH H168126
44	B3118R	1	Snap Ring	-
..	TY6333	1	Grease	(SUB FOR TY6281)
..	TY6305	1	Primer	(6 OZ. TUBE), (SUB FOR T43511) LOCTITE

FEEDER HOUSE LOWER SHAFT, SHEAVE, AND MOUNTINGS (VARIABLE DRIVE)

Нет текстового описания
