Engine Power Shaft, (6466TH-01 and 6466TH-02)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H93931	1	Lock Nut	-
2	24H1509	1	Washer	1-25/64" X 2-1/2" X 0.194"
3	H94981	1	Pulley	223 MM (8-25/32"), 250 MM (9-27/32"), AND 340 MM (13-13/32") DIAS., (HYDROSTATIC DRIVE AND POSI-TORQ DRIVE)
4	AH87127	1	Belt Set	(POSI-TORQ™) (MATCHED SET OF 2)
4	AH84633	1	Belt Set	(HYDROSTATIC) (MATCHED SET OF 2)
5	H84425	1	V-Belt	(SUB H108175)
5	H108175	1	V-Belt	-
6	AH96300	1	Belt Set	(MATCHED SET OF 2)
7	BP13615	1	Snap Ring	-
8	JD8682	1	Ball Bearing	-
9	AH94719	1	Shaft	(SUB H95877 AND JD8682)
10	-	1	Part 12	32 MM X 508 MM X 3 MM (7-1/4" X 20" X 1/8"), (CUT FROM H88771)
11	H86930	1	Plate	-
12	H92622	1	Isolator	-
13	H95878	1	Housing	-
14	H76728	1	Cover	-
15	AH94737	1	Cover	FRONT (FOAM INSULATION)
16	N10212	2	Self-Locking Screw	-
17	AH96568	1	Brush	-
18	JD7797	1	Lubrication Fitting	1/4", STRAIGHT
19	TY5030	1	Tape	2" WIDTH, VINYL
20	19H1782	4	Cap Screw	3/4" X 2-1/4"
20	12H236	4	Lock Washer	3/4"
21	H79910	2	Dowel Pin	-
22	AH94738	1	Cover	REAR (FOAM INSULATION)
23	AH138958	1	Kit	-

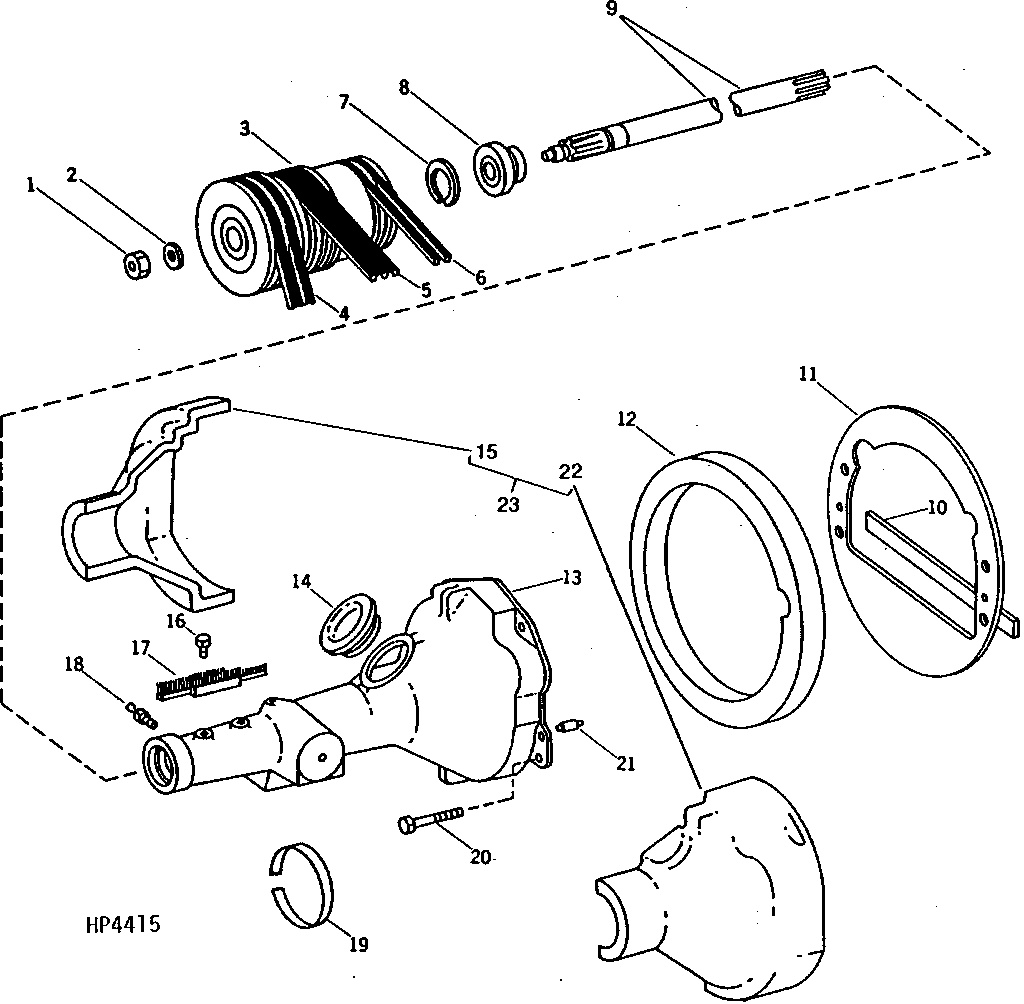

Engine Power Shaft, (6466TH-01 and 6466TH-02)
