Открытый узел

Engine Compartment Wiring Harnesses, Battery Cables and Mountings, Water Temperature Sending Units and Vacuum Switch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT37368	1	SENDER	(WATER TEMPERATURE GAUGE)
2	AH99331	1	Wiring Harness	-
2	AH106040	1	Wiring Harness	(REQUIRES H107003 AND (10) H107002), (SUB AH108261)
2	AH108261	1	Wiring Harness	(SUB AH109918)
2	AH109918	1	Wiring Harness	FRIGIDARE COMPRESSOR
3	AH90990	1	Clip	-
4	H100880	5	Clamp	-
5	R77457	1	Elec. Connector Terminal	-
5	R77457	1	Elec. Connector Terminal	(37 HOLES)
5	R77465	1	Elec. Connector Terminal	(PKG. OF 50)
5	R77458	1	Elec.Connect Locking Device	-
6	R77459	1	Elec.Connect Locking Device	-
6	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
6	H107004	1	Connector	-
6	H118432	1	Connector	(SUB H107004)
7	H118421	1	Elec. Connector Terminal	-
7	R77458	1	Elec.Connect Locking Device	-
7	RE11157	3	Elec. Connector Terminal	(PKG. OF 3)
8	H118416	1	Elec. Connector Terminal	-
8	R77468	2	Elec. Connector Terminal	(PKG. OF 5)
9	AH85833	1	Switch	-
11	T31161	2	Stud	-
13	14H611	4	Nut	5/16"
14	24H1136	4	Washer	11/32" X 11/16" X 0.065"
15	AH105519	2	Bracket	-
15	AH96069	2	Bracket	(SUB AH105519)
16	AN115220	2	Battery	(SUB AH114771)(NO LONGER AVAILABLE)
16	AH114771	2	WET CHARGED BATTERY	-
17	03H2298	4	Bolt	5/16" X 9-1/2"
18	H82711	2	Boot	-
21	AR77344	1	FUSE	COMPRESSOR
22	AR77345	1	Wiring Harness	COMPRESSOR
23	AH98905	1	Wiring Harness	-
24	14H785	2	Nut	5/16"
24	12H303	2	Lock Washer	5/16"
24	19H1900	2	Cap Screw	5/16" X 3/4"
24	R62978	2	Clip	-
25	AH96317	2	Clip	-
26	H100879	3	Clamp	-
27	H77698	1	Tie Band	-
28	AH117231	1	Wiring Harness	(SUB AH122860)
28	AH112297	1	Wiring Harness	(SUB AH117231), NIPPENDENSO COMPRESSOR
28	AH122860	1	Wiring Harness	-
29	H118425	1	Electrical Connector Assy	(22 HOLES)
29	R77464	1	Elec. Connector Terminal	(PKG. OF 50)
30	R70217	1	Plug	(7 HOLES)
30	R70222	1	Elec. Connector Terminal	(PKG. OF 20)
30	AR91793	1	Elec. Connector Terminal	(PKG. OF 20)
..	H107003	1	Elec. Connector Housing	-
..	H107002	10	Elec. Connector Terminal	-
10A	AH78636	1	Cable	(SUB AH112384)
10B	AH112384	1	Battery Booster Cables	-
12A	T22107	1	Cable	-
12B	AH112384	1	Battery Booster Cables	-
19A	AH78649	1	Ground Cable	(SUB AH112385, THIS APPLICATION)
19B	AH112385	1	Battery Cable	-
20A	AH100117	1	Battery Cable	-
20B	AH112385	1	Battery Cable	-

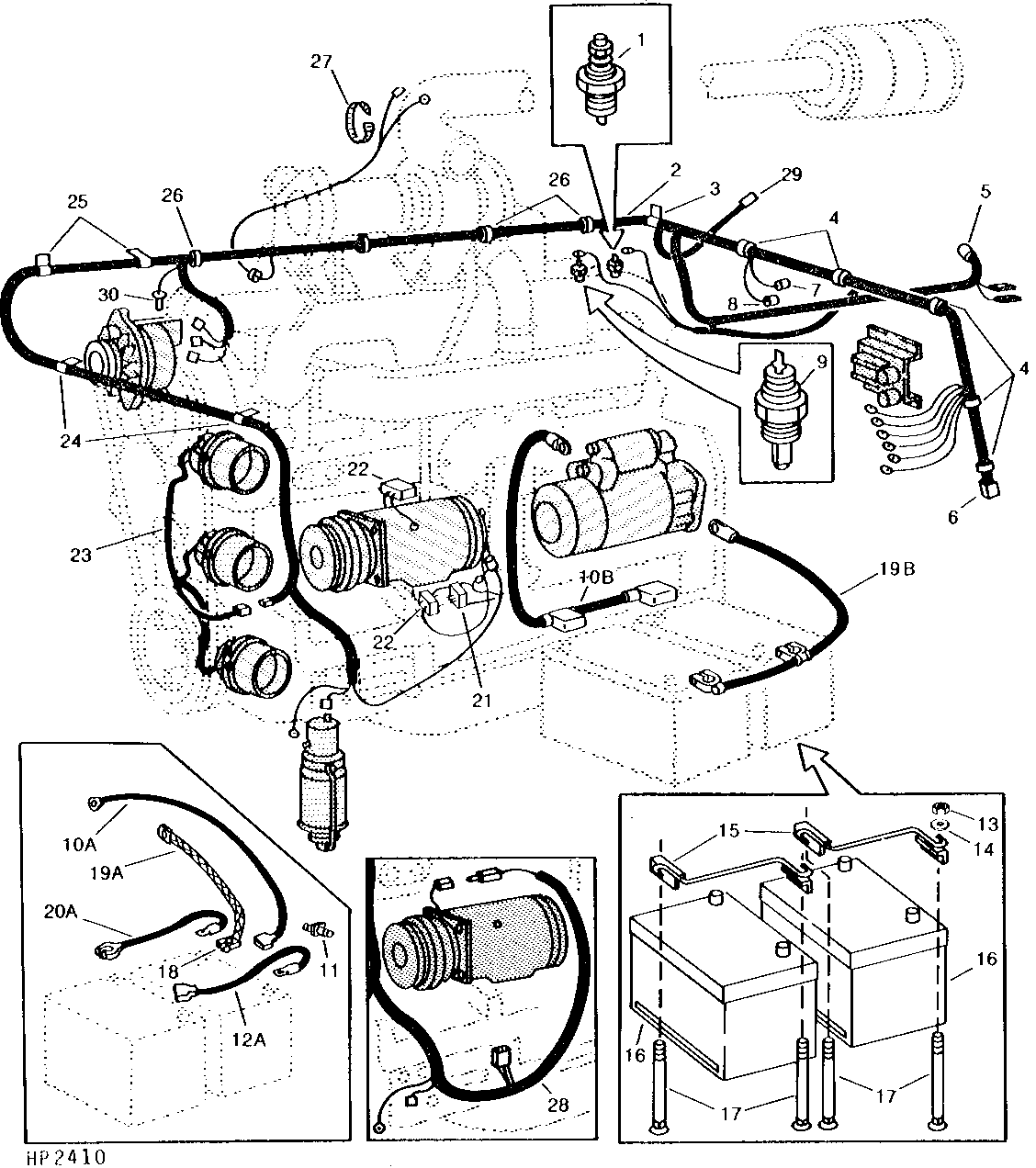

Engine Compartment Wiring Harnesses, Battery Cables and Mountings, Water Temperature Sending Units and Vacuum Switch

Нет текстового описания
