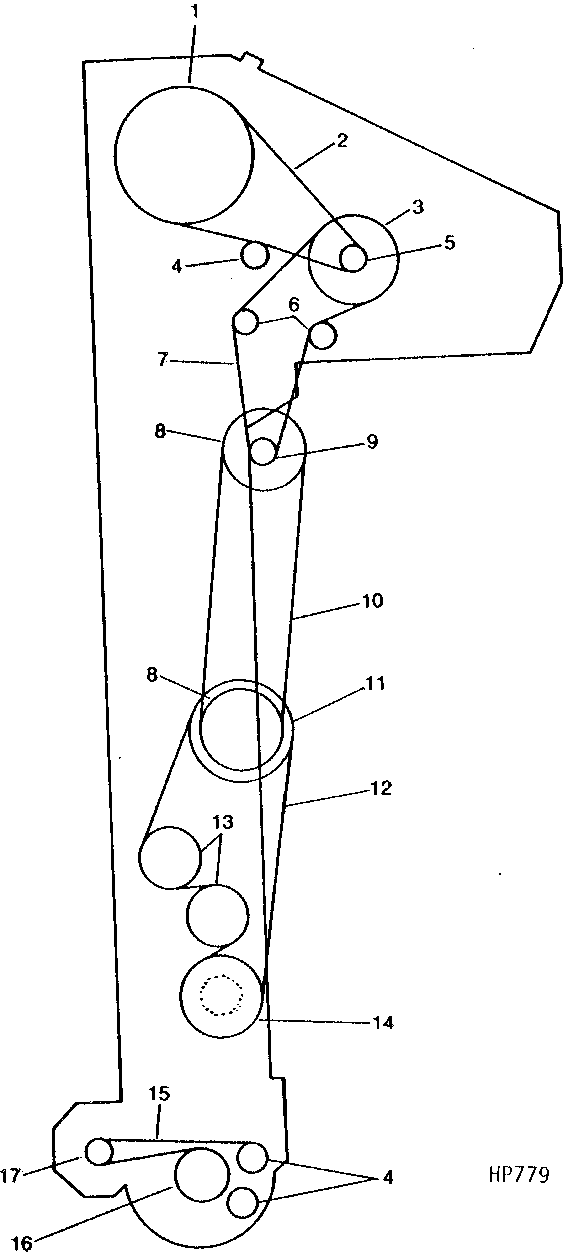

DIP AND POUR ELEVATOR DRIVE SHEAVES, SPROCKETS, AND TIGHTENERS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H23218	1	Chain Sprocket	Z=70, DRIVEN, CONVEYOR DRIVE
2	-	1	Part 2	16 MM (5/8") PITCH, ROLLER, TYPE 50,117 LINKS, (CONVEYOR DRIVE), (ASSEMBLED FROM (2) AP6093H, AP6095H, (3) SW50RLUS, (3) SW50COUS AND SW50OLUS)
3	AH86822	1	Chain Sprocket	Z=50, DRIVEN, UPPER AUGER, (EDIBLE BEAN)
3	AH86816	1	Chain Sprocket	Z=30, DRIVEN, UPPER AUGER, (CORN)
4	AH21440	3	Idler Sprocket	Z=17, TIGHTENER, CONVEYOR, AND LOWER AUGER
5	H35722	1	Chain Sprocket	Z=16, DRIVE, CONVEYOR
6	AH76970	2	Idler Sprocket	Z=17, TIGHTENER, UPPER AUGER DRIVE
7	-	1	Part 8	16 MM (5/8") PITCH, ROLLER, TYPE 50, 119 LINKS, (UPPER AUGER), (ASSEMBLED FROM (2) AP6093H, AP6095H, (4) SW50RLUS, (4) SW50COUS AND SW50OLUS)
8	AH75984	2	Pulley	245 MM (9-5/8") DIA., DRIVE AND DRIVEN, UPPER COUNTERSHAFT
9	H35722	1	Chain Sprocket	Z=16, DRIVE, UPPER AUGER
10	P49415	1	V-Belt	2480 MM (97-3/4") LONG, DRIVE, UPPER COUNTERSHAFT
11	AH75987	1	Pulley	292 MM (11-1/2") DIA., DRIVEN, LOWER COUNTERSHAFT
12	E60212	1	V-Belt	2650 MM (104-13/64") LONG, DRIVE, LOWER COUNTERSHAFT
13	AH14097	2	Idler	179 MM (7") DIA., TIGHTENER, LOWER COUNTERSHAFT
14	AH97033	1	Pulley	(SUB AH104783, AH104782, H105618, (6) 19H1801, (6) 12H304 AND (6) 14H812)
14	AH107084	1	Pulley	(SUB AH104783, AH107379, H105618, (6) 19H1801, (6) 12H304 AND (6) 14H812)
14	AH104783	1	Pulley	DRIVE, SECONDARY COUNTERSHAFT
15	-	1	Part 18	16 MM (5/8") PITCH, ROLLER, TYPE 50, 89 LINKS, (LOWER AUGER), (ASSEMBLED FROM AP6093H, AP6094H, AP6095H, (2) SW50RLUS AND (2) SW50COUS)
16	AH86816	1	Chain Sprocket	Z=30, DRIVE, LOWER AUGER
17	7807C	1	Chain Sprocket	Z=12, DRIVEN, LOWER AUGER
