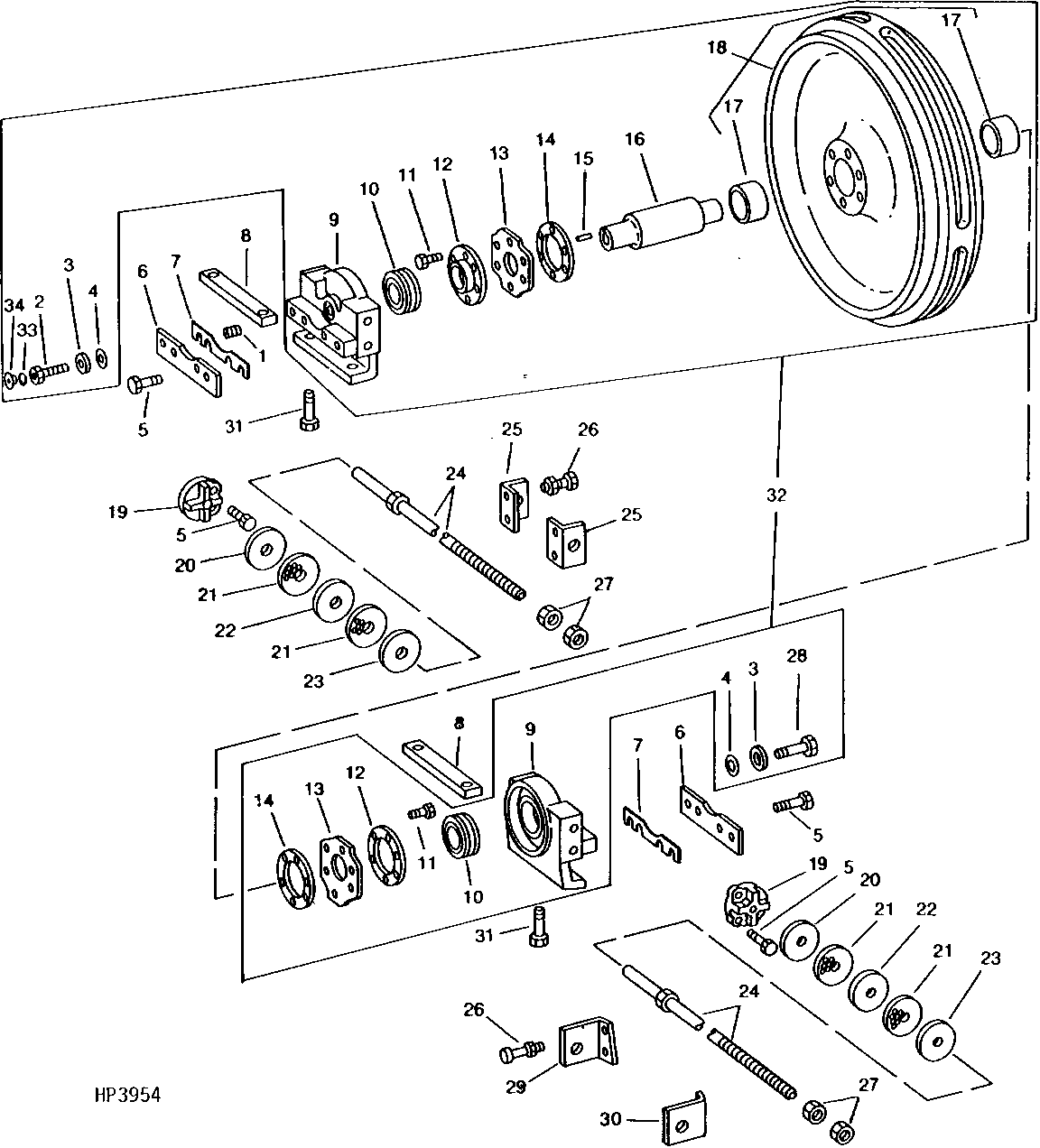

CRAWLER TIGHTENER, SHAFTS, AND BEARINGS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	P45808	2	Pipe Plug	-
1	15H558	2	Pipe Plug	1/8", (SUB P45808)
1	P45808	1	Pipe Plug	-
2	T16845	1	Bolt	(SUB T77122)
2	T77122	1	Cap Screw	(SUB T121498)
2	T145970	1	Cap Screw	(SUB FOR T121498)
3	M3301T	2	Washer	(SUB AT86204)
4	T16752	2	O-RING	-
5	19H1815	16	Cap Screw	1/2" X 1-1/4", (SEE FRONT IDLER SUPPORT PLATES)
5	12H301	16	Lock Washer	1/2", (SEE FRONT IDLER SUPPORT PLATES)
5	19H1815	12	Cap Screw	1/2" X 1-1/4"
5	12H301	12	Lock Washer	1/2"
6	T112813	2	GUIDE	-
6	T20695	2	Guide	(SEE FRONT IDLER SUPPORT PLATES), (SUB T112813)
7	T20697	1	SHIM	-
8	T20696	2	Strap	-
9	T38807	2	BRACKET	(SUB T112807)
9	T112807	2	BRACKET	-
9	T122636	2	Bracket	-
10	AT31122	2	Seal	(SUB AT42553)
11	19H2923	12	Screw	3/8" X 1"
12	T33367	2	RING	-
13	T33366	2	Plate	-
14	T38969	2	GASKET	-
15	34H416	1	Spring Pin	7/32" X 1/2"
15	T13381	1	DOWEL PIN	(SUB 34H416, THIS APPLICATION)
16	T40826	1	SHAFT	-
17	T23880	4	BUSHING	-
18	AT32571	1	Idler	(WITH BUSHINGS), (SUB AT125348)
18	AT125348	1	ROLLER SHELL	(WITH BUSHINGS)
19	H78602	2	Bracket	-
20	H95003	4	Washer	-
21	H95005	1	Washer	PERFORATED, (32 USED, 4 ROLLER; 40 USED, 5 ROLLER; 48 USED, 6 ROLLER)
22	H95002	1	Bushing	RUBBER, (16 USED, 4 ROLLER; 20 USED, 5 ROLLER; 24 USED, 6 ROLLER)
23	H98018	1	Washer	(14 USED, 4 ROLLER; 18 USED, 5 ROLLER; 22 USED, 6 ROLLER)
24	AH80630	2	Rod	(4 ROLLER)
24	AH93911	2	Rod	(5 ROLLER AND 6 ROLLER)
25	H78619	2	Bracket	(4 ROLLER)
26	19H1731	8	Cap Screw	3/8" X 1"
26	14H812	8	NUT	3/8"
27	14H794	4	Nut	3/4"
28	19H2677	1	Cap Screw	3/4" X 1-3/4"
29	H82081	1	Bracket	LH, (4 ROLLER)
30	H82080	1	Bracket	RH, (4 ROLLER)
31	19H1721	4	CAP SCREW	1/2" X 1-1/2"
31	12H301	4	Lock Washer	1/2"
32	AT86204	1	TRACK IDLER	(SUB AT125351)
32	AT125351	1	IDLER	(WITH BRACKETS)
33	R28782	1	O-Ring	-
34	T105368	1	Fitting Plug	-
