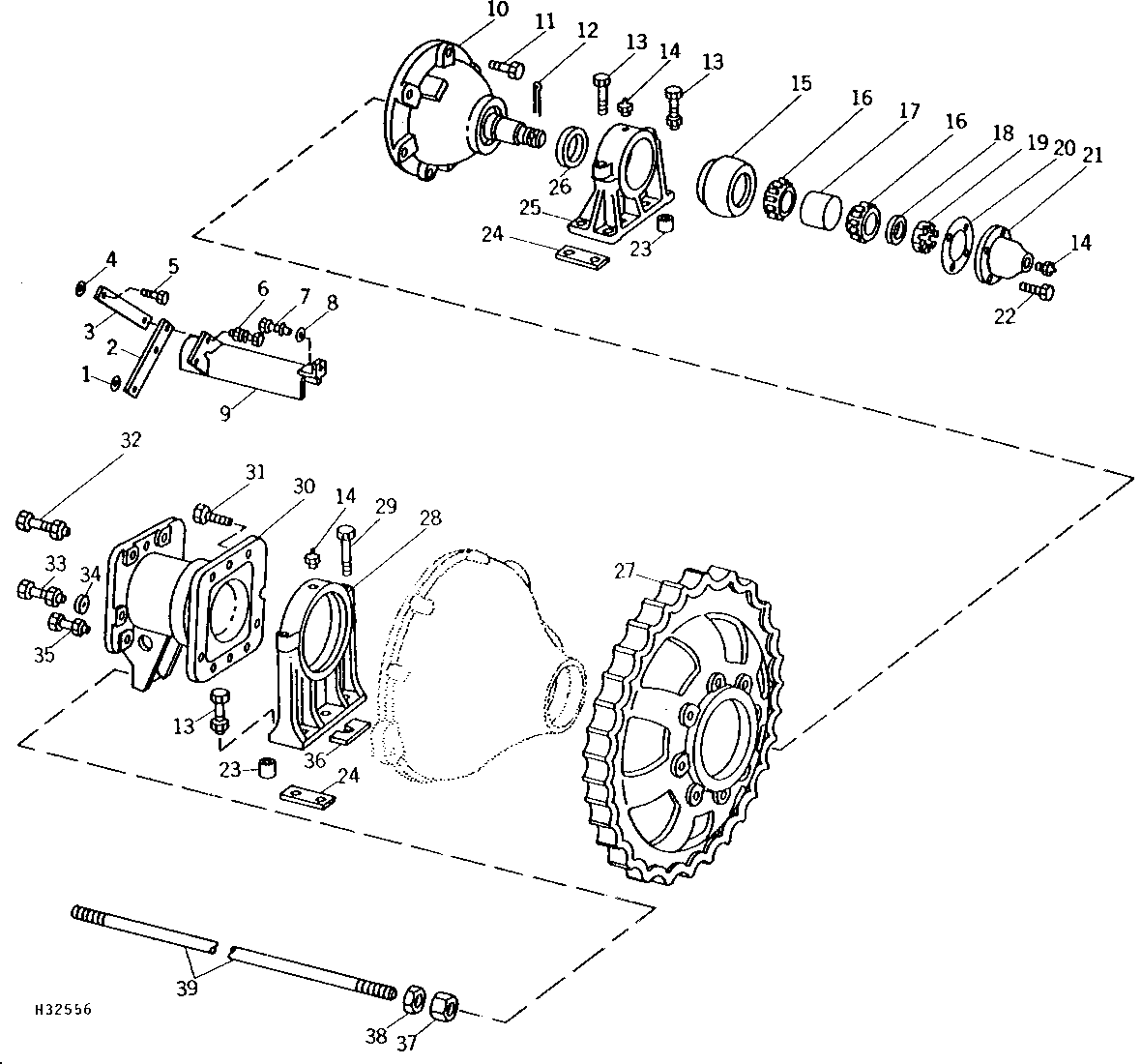

CRAWLER DRIVE SHIELD, SPROCKET, AND BEARINGS (6 ROLLER TRACKS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24H1392	1	Washer	25/32" X 1-3/8" X 0.120"
2	H98827	1	Strap	-
3	H98826	1	Strap	-
4	24H1247	2	Washer	29/32" X 1-1/2" X 1/4"
5	19H2920	2	Cap Screw	7/8" X 3-1/4"
5	12H245	2	Lock Washer	7/8"
5	14H836	2	NUT	7/8"
6	19H1732	2	Cap Screw	3/8" X 1-1/4"
6	14H812	2	NUT	3/8"
7	19H1930	2	Cap Screw	1/2" X 2-1/2"
7	12H301	2	Lock Washer	1/2"
8	24H1111	1	Washer	17/32" X 1-1/16" X 0.090"
9	AH97137	1	Shield	(LH)
9	AH97138	1	Shield	(RH)
10	AH103709	1	Hub	-
11	19H2617	8	Cap Screw	3/4" X 3-3/4"
11	12H236	8	Lock Washer	3/4"
12	11H244	1	Cotter Pin	3/16" X 2-1/2"
13	19H1974	6	Cap Screw	1/2" X 2-3/4"
13	12H301	6	Lock Washer	1/2"
13	14H1040	6	Nut	1/2"
14	JD7759	3	Lubrication Fitting	-
15	H11630	1	HOUSING	-
16	JD8984	2	Bearing Cone	-
17	JD8274	1	BEARING CUP	-
18	24H1228	1	Washer	1-17/32" X 2-1/2" X 0.120"
19	H21871	1	NUT	-
20	H36564	1	GASKET	-
21	H11631	1	QUILL	-
22	19H1905	4	Cap Screw	5/16" X 1"
23	P41311	14	Bushing	-
24	H36565	7	STRAP	-
25	H98438	1	Support	-
26	AH21870	1	SEAL	-
27	H87325	1	Drive Sprocket	-
28	H101260	1	Support	-
29	19H1974	2	Cap Screw	1/2" X 2-3/4"
29	12H301	2	Lock Washer	1/2"
30	H101259	1	Bushing	(LH)
30	H101258	1	Bushing	(RH)
31	19H1782	6	Cap Screw	3/4" X 2-1/4"
31	12H236	6	Lock Washer	3/4"
32	12H236	1	Lock Washer	3/4"
32	14H794	1	Nut	3/4"
32	19H3333	1	Cap Screw	7/8" X 2-3/4"
33	19H3254	1	Cap Screw	7/8" X 3-3/4"
33	12H245	1	Lock Washer	7/8"
33	14H836	1	NUT	7/8"
34	H91851	1	Spacer	-
35	19H2702	2	Cap Screw	7/8" X 5"
35	12H245	2	Lock Washer	7/8"
35	14H836	2	NUT	7/8"
36	H94636	1	Shim	-
37	14H876	1	Nut	1"
38	H61941	1	Nut	-
39	H99539	1	Rod	(PER MACHINE)
39	H113957	1	Stud	(PER MACHINE)

CRAWLER DRIVE SHIELD, SPROCKET, AND BEARINGS (6 ROLLER TRACKS)
