Conveyor Chain and Sprockets, Tailings Elevator ( - 610500)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH87146	1	Chain Sprocket	Z=26
2	22H817	2	Set Screw	3/8" X 3/4"
2	14H732	2	Nut	3/8"
3	-	1	Part 4	16 MM (5/8") PITCH, ROLLER, TYPE 50, 51 LINKS, (ASSEMBLED FROM AP6093H AND SW50OLUS)
4	22H897	2	Set Screw	1/4" X 1/4"
5	JD8554	2	Eccentric Locking Collar	-
6	H87472	4	Pressed Flanged Housing	-
6	H103264	4	Pressed Flanged Housing	-
7	AH169077	2	Ball Bearing	(SUB FOR JD9273), (SUB AH214862)
7	AH214862	2	Ball Bearing	-
8	AH78549	2	Bracket	-
9	14H785	3	Nut	5/16"
9	12H303	3	Lock Washer	5/16"
9	03H1540	3	Bolt	5/16" X 3/4"
10	H63578	1	Chain Sprocket	Z=7
11	-	1	Part 16	(1/4" X 1/4" X 1-1/2"), (CUT FROM H64374 IN AH64587 KEY STOCK KIT)
12	H75978	1	Shaft	-
13	11H250	2	Cotter Pin	1/4" X 2-1/2"
14	AH96388	1	Link Chain	(CA-550 ROLLER CHAIN), (24 PADDLES)
14	AH87765	24	Chain Link	ATTACHMENT
14	14H786	1	Nut	1/4", (2 USED, STEEL CLEANING PADDLE; 96 USED, BUCKET)
14	24H1286	96	Washer	9/32" X 1/2" X 1/16", (BUCKET)
14	19H1948	1	Cap Screw	1/4" X 3/4", (2 USED, STEEL CLEANING PADDLE; 96 USED, BUCKET)
14	AH86897	48	Bolt	(PADDLE)
14	H86761	1	Paddle	STEEL CLEANING
14	H63576	48	Loader Bucket	-
14	H86759	24	Paddle	RUBBER
14	AC14974	1	Pin Fastener	COUPLER LINK, WITH COTTER PIN
14	C10263	1	Track Chain W/O Shoes	COUPLER
14	AC11779	1	Pin Fastener	OFFSET, WITH COTTER
14	C10233	1	Chain Link	OFFSET
14	C10232	1	Link	ROLLER
14	AH76980	1	Link Chain	(CA-550 ROLLER CHAIN), (48 BUCKETS)
15	03H1539	3	Bolt	5/16" X 5/8"
15	12H334	3	Lock Washer	5/16"
15	14H611	3	Nut	5/16"

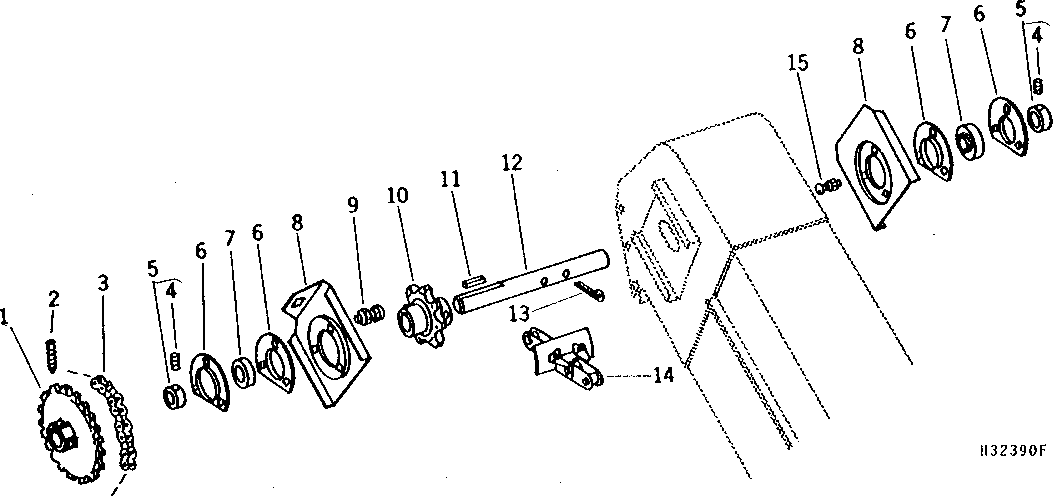

Conveyor Chain and Sprockets, Tailings Elevator ( - 610500)
