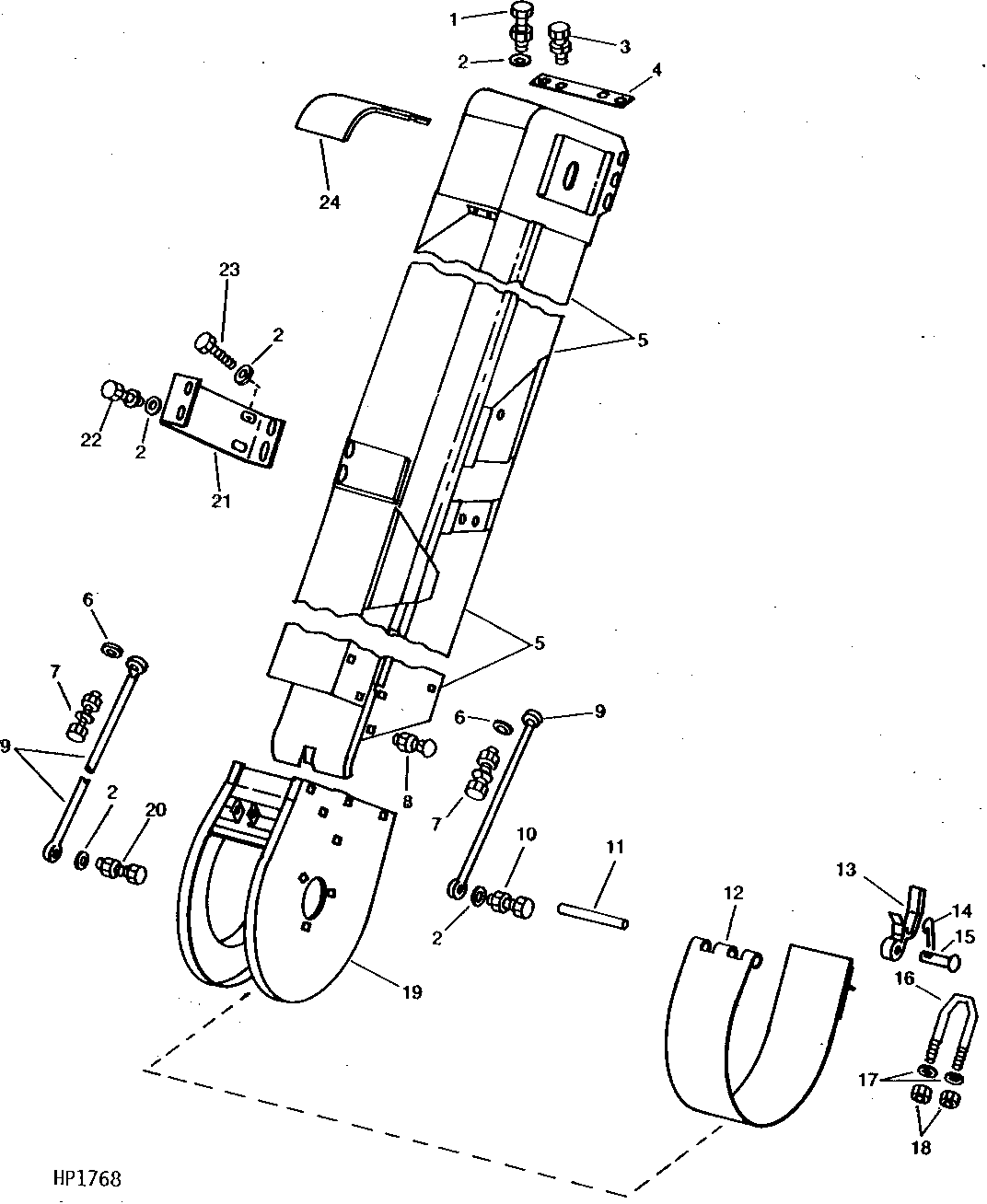

CLEAN GRAIN ELEVATOR HOUSING ( - 556300)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H732	2	Nut	3/8"
1	19H2462	2	Cap Screw	3/8" X 3-1/4"
2	24H1305	14	Washer	13/32" X 13/16" X 0.065"
3	21H1029	2	Screw	5/16" X 3/4"
3	12H303	2	Lock Washer	5/16"
3	14H785	2	Nut	5/16"
4	H83103	1	Strap	-
5	AH112164	1	Elevator	(SUB FOR AH96610)
6	24H1790	2	Washer	17/32" X 1-1/2" X 0.164"
7	14H1040	2	Nut	1/2"
7	12H301	2	Lock Washer	1/2"
7	19H1781	2	CAP SCREW	1/2" X 3-1/2"
8	03H1893	10	Bolt	1/4" X 1/2"
8	12H302	10	Lock Washer	1/4"
8	14H786	10	Nut	1/4"
9	H77056	2	Brace	(SUB H112959)
9	H112959	2	Brace	-
10	19H1800	1	Cap Screw	3/8" X 1-1/2"
10	12H304	1	Lock Washer	3/8"
10	14H812	1	NUT	3/8"
11	H75985	1	Dowel Pin	CUT TO 175 MM (6.88"), (MAKE FROM H103318)
12	AH77069	1	Door	(PERFORATED)
12	AH77062	1	Door	(SOLID)
13	H101297	1	Lever	-
14	11H211	1	COTTER PIN	1/8" X 3/4"
15	RV810A	1	Pin Fastener	(8 MM X 38 MM), DRILLED
16	H35688	1	U-Bolt	-
17	24H1136	2	Washer	11/32" X 11/16" X 0.065"
18	T16464	2	Lock Nut	7.925 mm (5/16")
19	AH93242	1	Boot	-
20	12H304	1	Lock Washer	3/8"
20	14H812	1	NUT	3/8"
20	19H1732	1	Cap Screw	3/8" X 1-1/4"
21	H98091	1	Bracket	-
22	19H2284	4	Cap Screw	3/8" X 7/8"
22	12H304	4	Lock Washer	3/8"
22	14H812	4	NUT	3/8"
23	03H1765	4	Bolt	3/8" X 3/4"
23	12H304	4	Lock Washer	3/8"
23	14H812	4	NUT	3/8"
24	H114130	1	Reinforcement	-

CLEAN GRAIN ELEVATOR HOUSING ( - 556300)

Нет текстового описания
