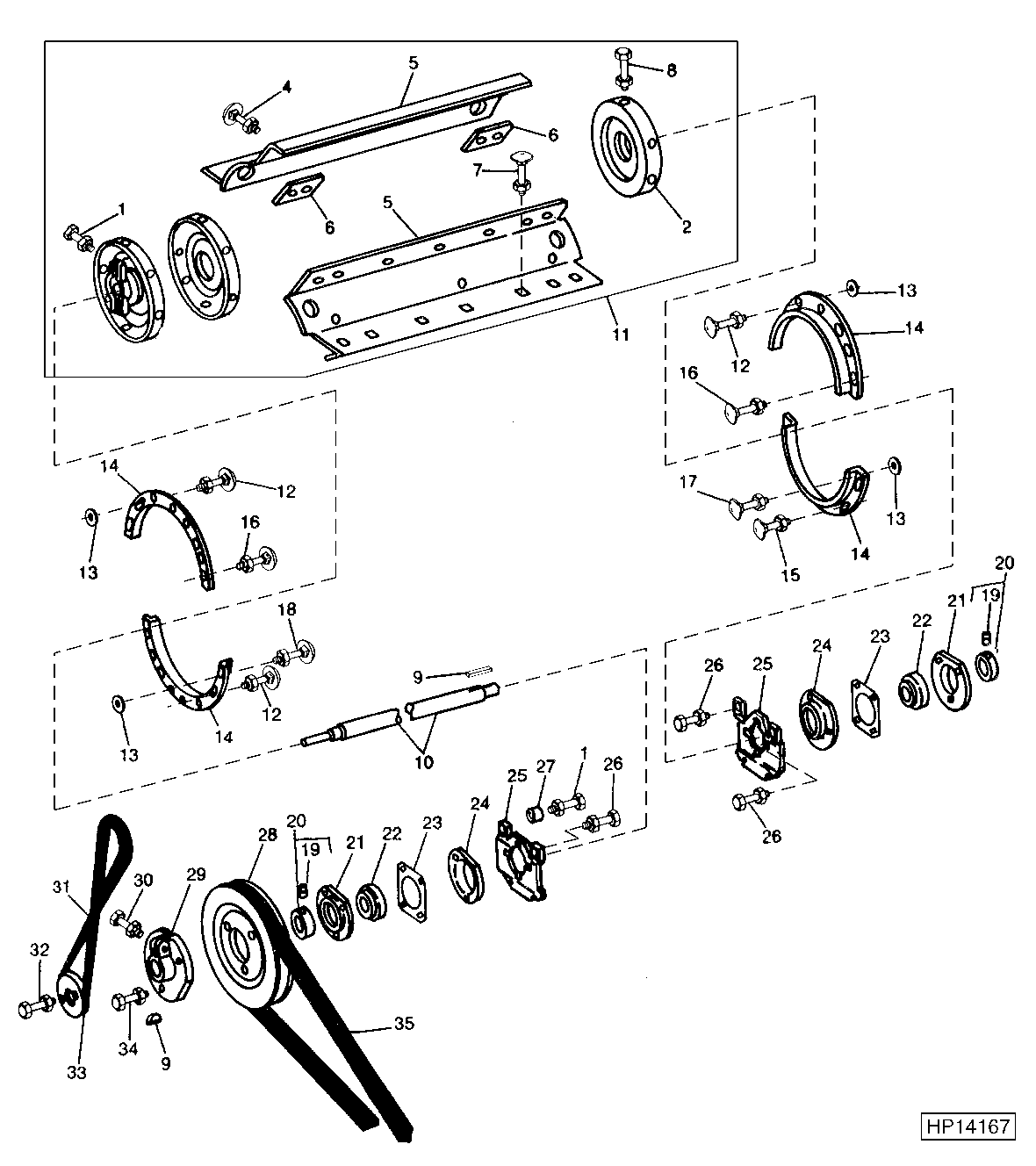

BEATER AND DRIVE FOR CYLINDER TACHOMETER (600001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H301	3	Lock Washer	1/2"
1	03H1439	3	Bolt	1/2" X 1-3/4"
1	14H1040	3	Nut	1/2"
2	AH113361	2	Cylinder Head	-
3	AH113359	2	Cylinder Head	-
4	03H1480	1	Bolt	3/8" X 1-1/4"
4	12H304	1	Lock Washer	3/8"
4	14H812	1	NUT	3/8"
5	H117551	6	Beater	-
6	H110734	1	Strap	-
6	H110736	1	Strap	-
6	24H1781	1	Washer	13/32" X 7/8" X 1/4", (USE WITH H110734)
6	24H1307	1	Washer	13/32" X 1" X 1/16", (USE WITH H110736)
7	03H1519	36	Bolt	3/8" X 1"
7	12H304	36	Lock Washer	3/8"
7	14H812	36	NUT	3/8"
8	19H1936	24	Cap Screw	3/8" X 3/4"
8	12H304	24	Lock Washer	3/8"
9	-	1	Part 19	(3/8" X 3/8" X 2"), (CUT FROM H64376 IN AH64587 KEY STOCK KIT)
10	H110001	1	Shaft	-
11	AH114803	1	Beater	-
12	03H1540	2	Bolt	5/16" X 3/4"
12	12H303	2	Lock Washer	5/16"
12	14H785	2	Nut	5/16"
13	24H1136	8	Washer	11/32" X 11/16" X 0.065"
14	H98955	4	Seal	-
15	03H2321	4	Bolt	5/16" X 1-1/4"
15	12H303	4	Lock Washer	5/16"
15	14H785	4	Nut	5/16"
16	14H785	6	Nut	5/16"
16	12H303	6	Lock Washer	5/16"
16	03H1709	6	Bolt	5/16" X 1"
17	03H2139	1	Bolt	5/16" X 1-1/4"
18	03H2321	4	Bolt	5/16" X 1-1/4", (USE WITH (4) 12H303 AND (4) 14H785)
19	-	1	Part 35	-
20	JD9201	1	Eccentric Locking Collar	-
21	H97606	1	Pressed Flanged Housing	-
22	JD9434	2	Ball Bearing	-
23	H112869	2	Shim	-
24	H97602	2	Pressed Flanged Housing	-
25	H109983	2	Bracket	-
26	03H1522	10	Bolt	1/2" X 1-1/4"
27	C13097	2	Washer	-
28	AH94959	1	Pulley	241 MM (9-1/2") DIA., (100 PER CENT BEATER SPEED) (CORN AND BEAN)
28	AH101244	1	Pulley	216 MM (8-1/2") DIA., (150 PER CENT BEATER SPEED) (GRAIN AND RICE)
29	H113889	1	Hub	-
30	19H1831	1	Cap Screw	1/2" X 2"
30	12H301	1	Lock Washer	1/2"
30	14H1040	1	Nut	1/2"
31	H83077	1	O-Ring	BELT
32	19H2055	1	CAP SCREW	7/16" X 2-1/4"
32	12H304	1	Lock Washer	3/8"
32	24H1305	1	Washer	13/32" X 13/16" X 0.065"
33	H97506	1	Pulley	(100 PER CENT BEATER SPEED)
33	H101529	1	Idler	(150 PER CENT BEATER SPEED)
34	19H1731	3	Cap Screw	3/8" X 1"
34	12H304	3	Lock Washer	3/8"
34	14H812	3	NUT	3/8"
35	H96414	1	V-Belt	(100 PER CENT BEATER SPEED) (CORN AND BEAN)
35	H101469	1	V-Belt	(150 PER CENT BEATER SPEED) (GRAIN AND RICE)

BEATER AND DRIVE FOR CYLINDER TACHOMETER (600001 - )
