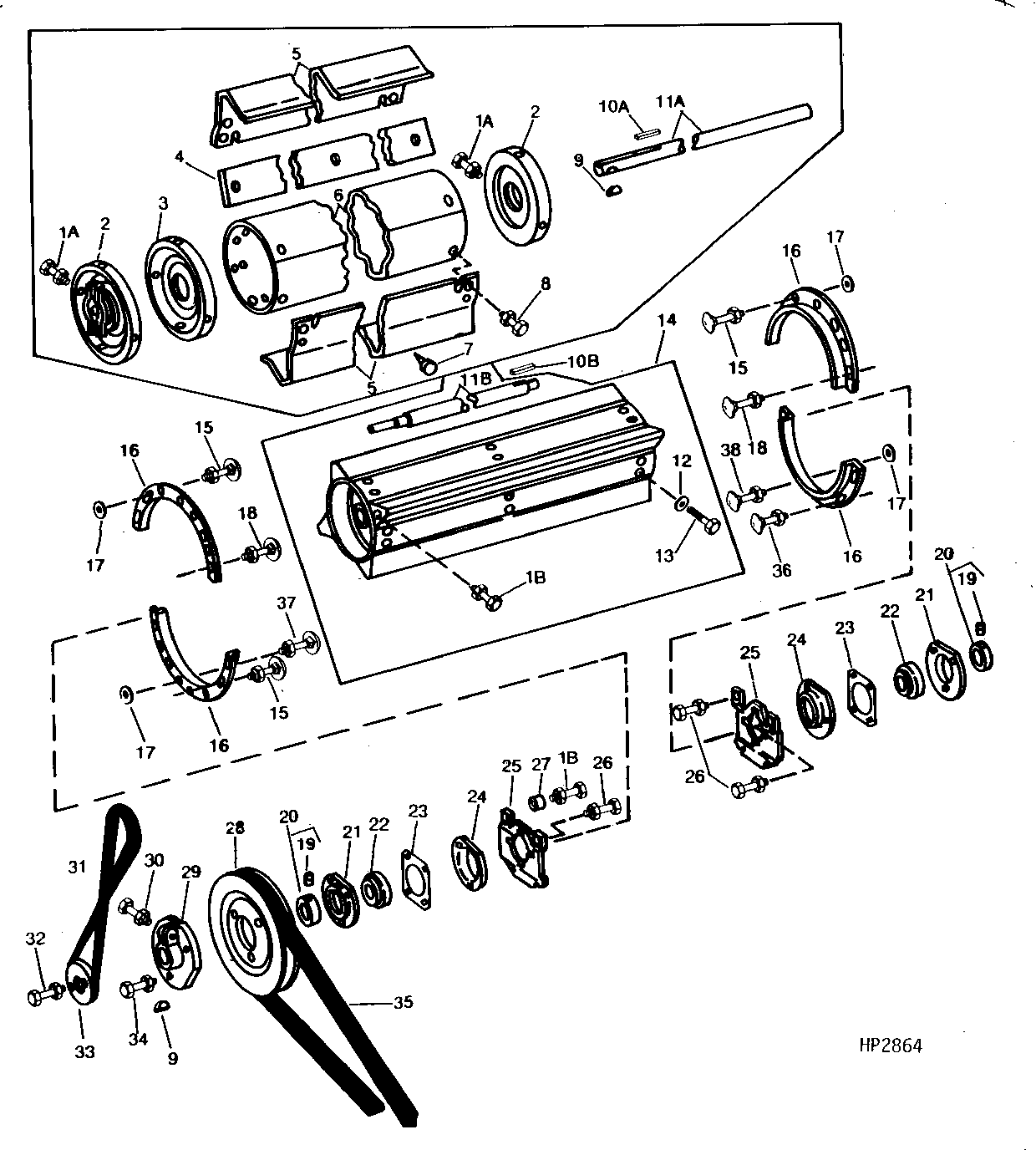

BEATER AND DRIVE FOR CYLINDER TACHOMETER ( - 600000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	AH92070	2	Cylinder Head	-
3	AH92069	1	Cylinder Head	(SUB AH101474)
3	AH101474	2	Cylinder Head	(SUB AH108530)
4	H109247	1	Strap	(SUB AH108530)
5	H94419	1	Beater	(SUB H101801)
5	H101801	4	Beater	-
6	H97339	1	Drum	(SUB H101800)
6	H101800	1	Drum	-
7	H77931	4	SCREW	(150 PER CENT BEATER SPEED) (GRAIN AND RICE)
8	12H304	12	Lock Washer	3/8"
8	19H1732	24	Cap Screw	3/8" X 1-1/4"
8	19H1731	12	Cap Screw	3/8" X 1"
9	26H42	1	Shaft Key	3/8" X 2-1/8"
12	24H1305	8	Washer	13/32" X 13/16" X 0.065"
13	12H304	24	Lock Washer	3/8"
13	19H1732	24	Cap Screw	3/8" X 1-1/4"
14	AH108530	1	Beater	(SUB AH114803)
15	03H1540	2	Bolt	5/16" X 3/4"
15	12H303	2	Lock Washer	5/16"
15	14H785	2	Nut	5/16"
16	H98955	4	Seal	-
17	24H1136	8	Washer	11/32" X 11/16" X 0.065"
18	03H1709	6	Bolt	5/16" X 1", (USE WITH 12H303, 14H785)
18	12H303	6	Lock Washer	5/16"
18	14H785	6	Nut	5/16"
19	-	1	Part 36	-
20	JD9201	2	Eccentric Locking Collar	WITH SET SCREW
21	H97606	2	Pressed Flanged Housing	-
22	JD9334	2	Ball Bearing	(SUB JD9434, THIS APPLICATION)
22	JD9434	2	Ball Bearing	-
23	H112869	2	Shim	-
24	H97602	2	Pressed Flanged Housing	-
25	H109983	2	Bracket	-
26	03H1522	10	Bolt	1/2" X 1-1/4"
27	C13097	2	Washer	-
28	AH94959	1	Pulley	241 MM (9-1/2") DIA., (100 PER CENT BEATER SPEED) (CORN AND BEAN)
28	AH101244	1	Pulley	261 MM (8-1/2") DIA., (150 PER CENT BEATER SPEED) (GRAIN AND RICE)
29	H100830	1	Hub	(SUB H113889)
29	H113889	1	Hub	-
30	19H1831	1	Cap Screw	1/2" X 2"
30	12H301	1	Lock Washer	1/2"
30	14H1040	1	Nut	1/2"
31	H83077	1	O-Ring	-
32	19H1731	1	Cap Screw	3/8" X 1"
32	12H304	1	Lock Washer	3/8"
32	24H1305	1	Washer	13/32" X 13/16" X 0.065"
33	H97506	1	Pulley	(100 PER CENT BEATER SPEED) (CORN AND BEAN)
33	H101529	1	Idler	(150 PER CENT BEATER SPEED) (GRAIN AND RICE)
34	19H1731	3	Cap Screw	3/8" X 1"
34	12H304	3	Lock Washer	3/8"
34	14H812	3	NUT	3/8"
35	H96414	1	V-Belt	(100 PER CENT BEATER SPEED) (CORN AND BEAN)
35	H101469	1	V-Belt	(150 PER CENT BEATER SPEED) (GRAIN AND RICE)
36	03H2321	4	Bolt	5/16" X 1-1/4"
36	12H303	4	Lock Washer	5/16"
36	14H785	4	Nut	5/16"
37	03H2321	4	Bolt	5/16" X 1-1/4", (USE WITH (4) 12H303 AND (4) 14H785)
38	03H2139	1	Bolt	5/16" X 1-1/4"
1A	14H1040	2	Nut	1/2"
1A	12H301	2	Lock Washer	1/2"
1A	03H1439	2	Bolt	1/2" X 1-3/4"
1B	14H1040	3	Nut	1/2"
1B	12H301	3	Lock Washer	1/2"
1B	03H1439	3	Bolt	1/2" X 1-3/4"
10A	-	1	Part 20	(3/8" X 3/8" X 1-1/2"), (CUT FROM H64376 IN AH64587 KEY STOCK KIT)
10B	-	1	Part 21	(3/8" X 3/8" X 2"), (CUT FROM H64376 IN AH64587 KEY STOCK KIT)
11A	H101840	1	Shaft	(SUB H110001)
11B	H110001	1	Shaft	-
