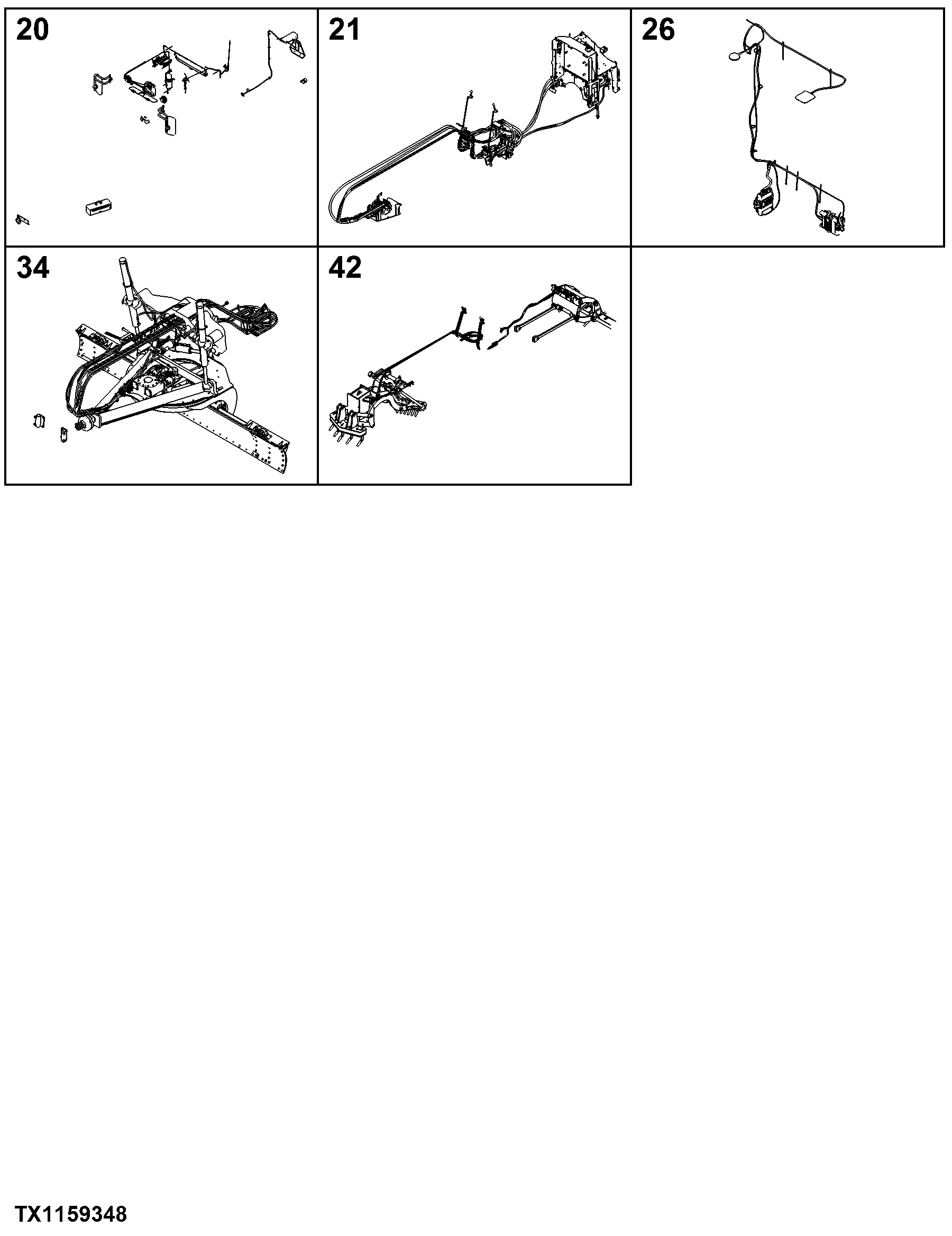

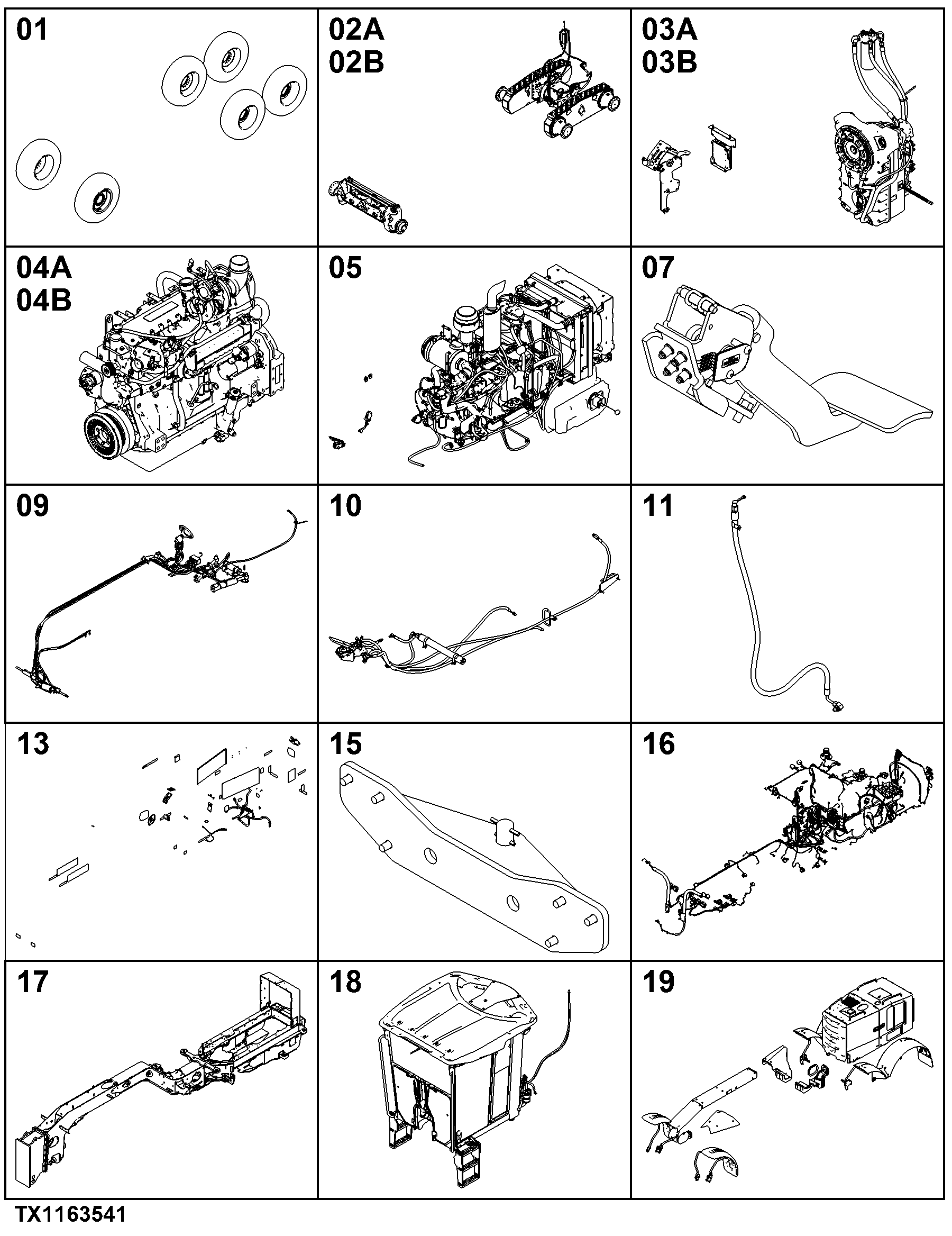

770G/770GP Motor Grader (PIN: 1DW770GX_ _F656526-678817)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	02B 1400 Series TeamMate™ Axle YZ18885	-
-	-	1	02C Grader Differential Center Section - 1400 Series TeamMate™ II	-
-	-	1	03B Transmission DF180 Without HFWD YZ19824	-
-	-	1	03C Transmission DF180	-
-	-	1	04A Engine 6090HDW18-RE548088 (670 672 770 Graders)-RE548088	-
-	-	1	04B Diesel Engine 6090HDW28-DZ10898	-

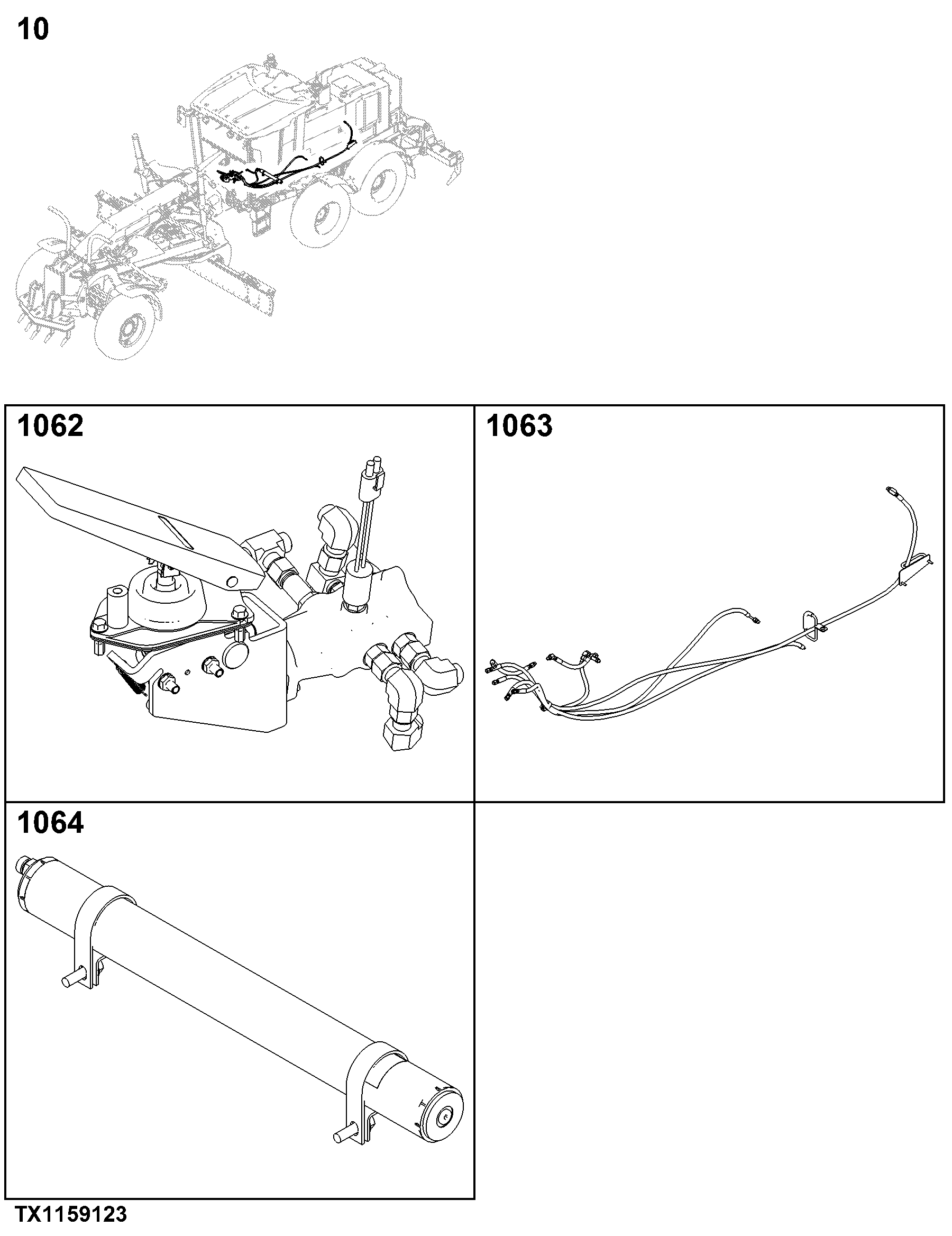

-	-	1	10 Service Brakes	-

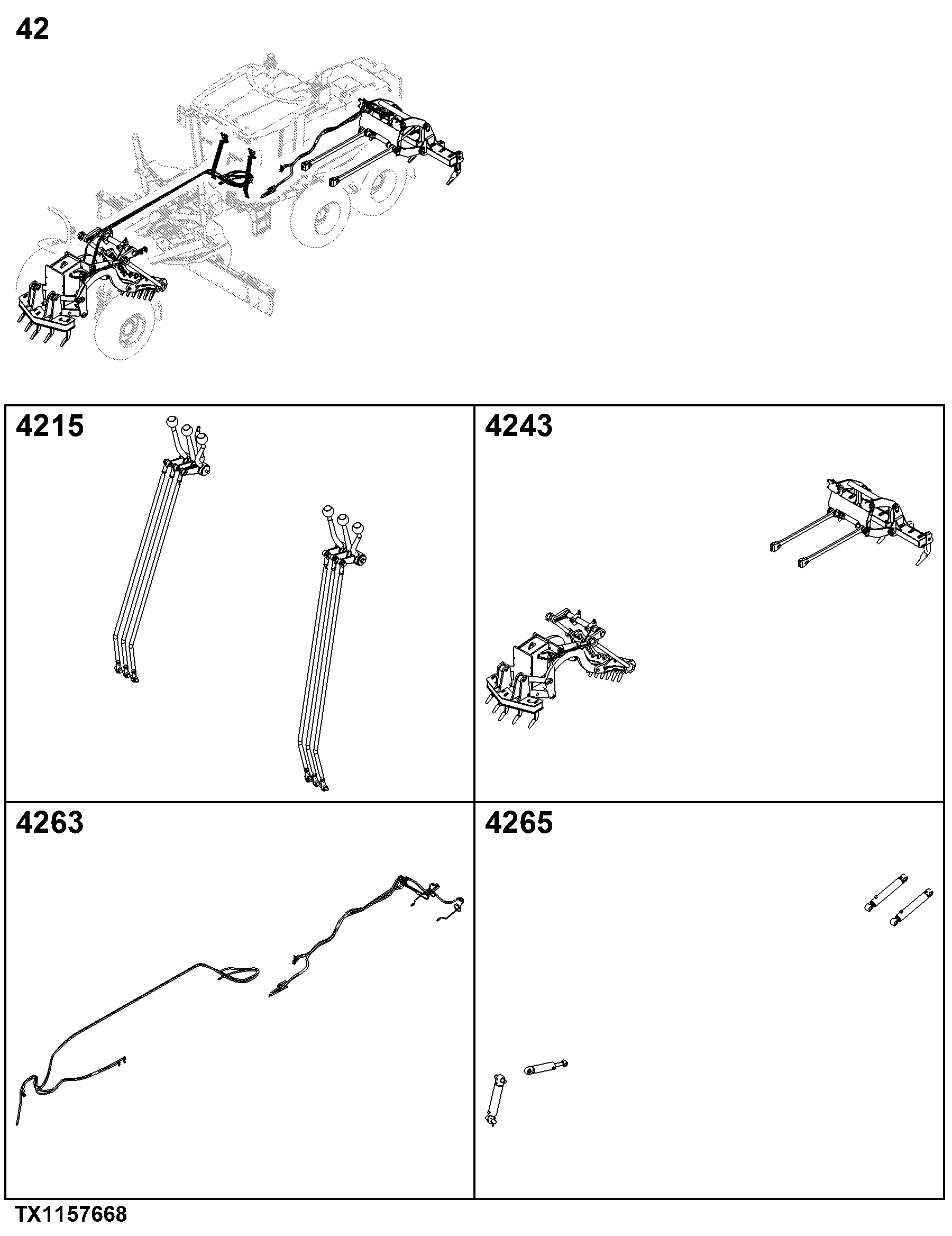

-	-	1	42 Ground Conditioning Tool	-

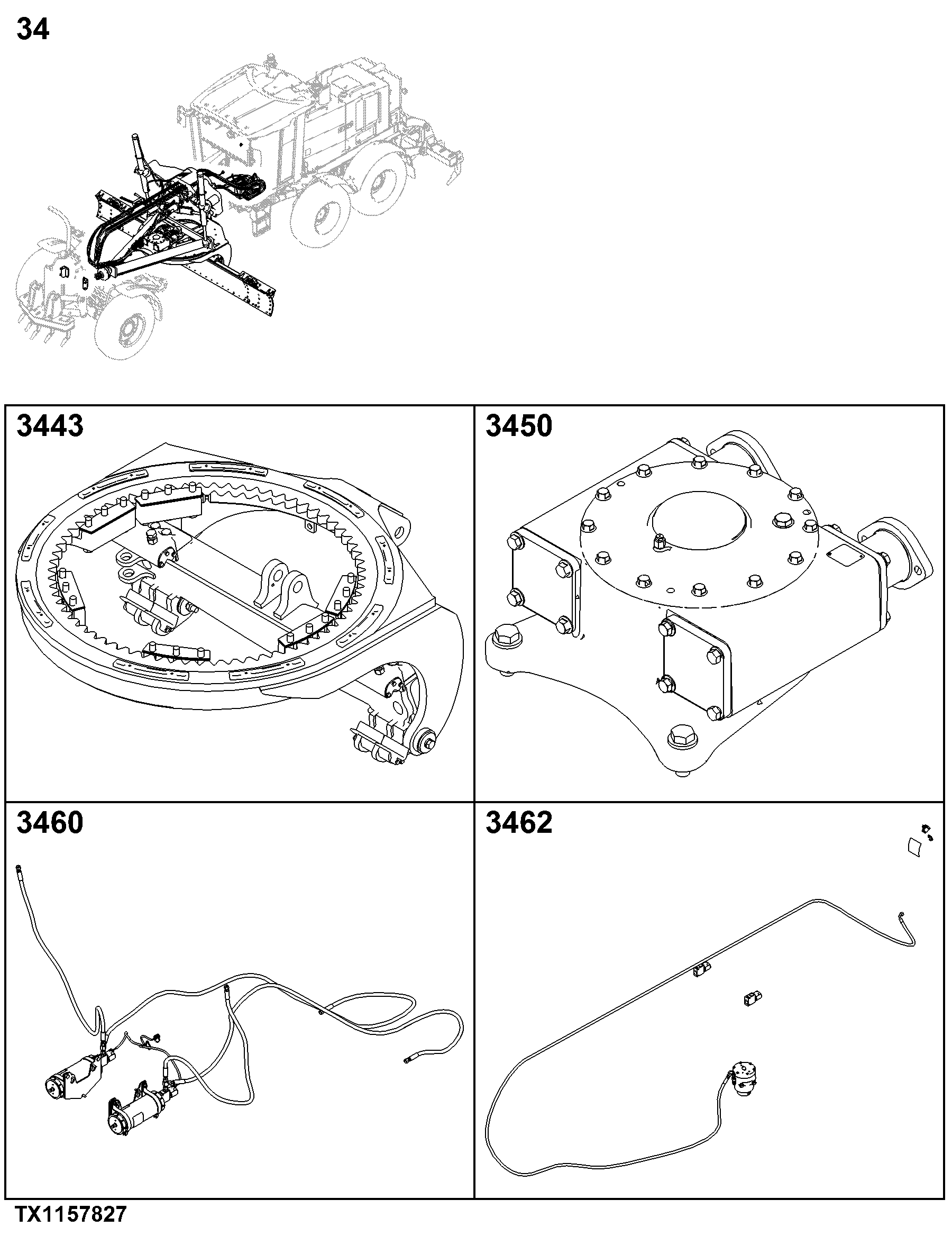

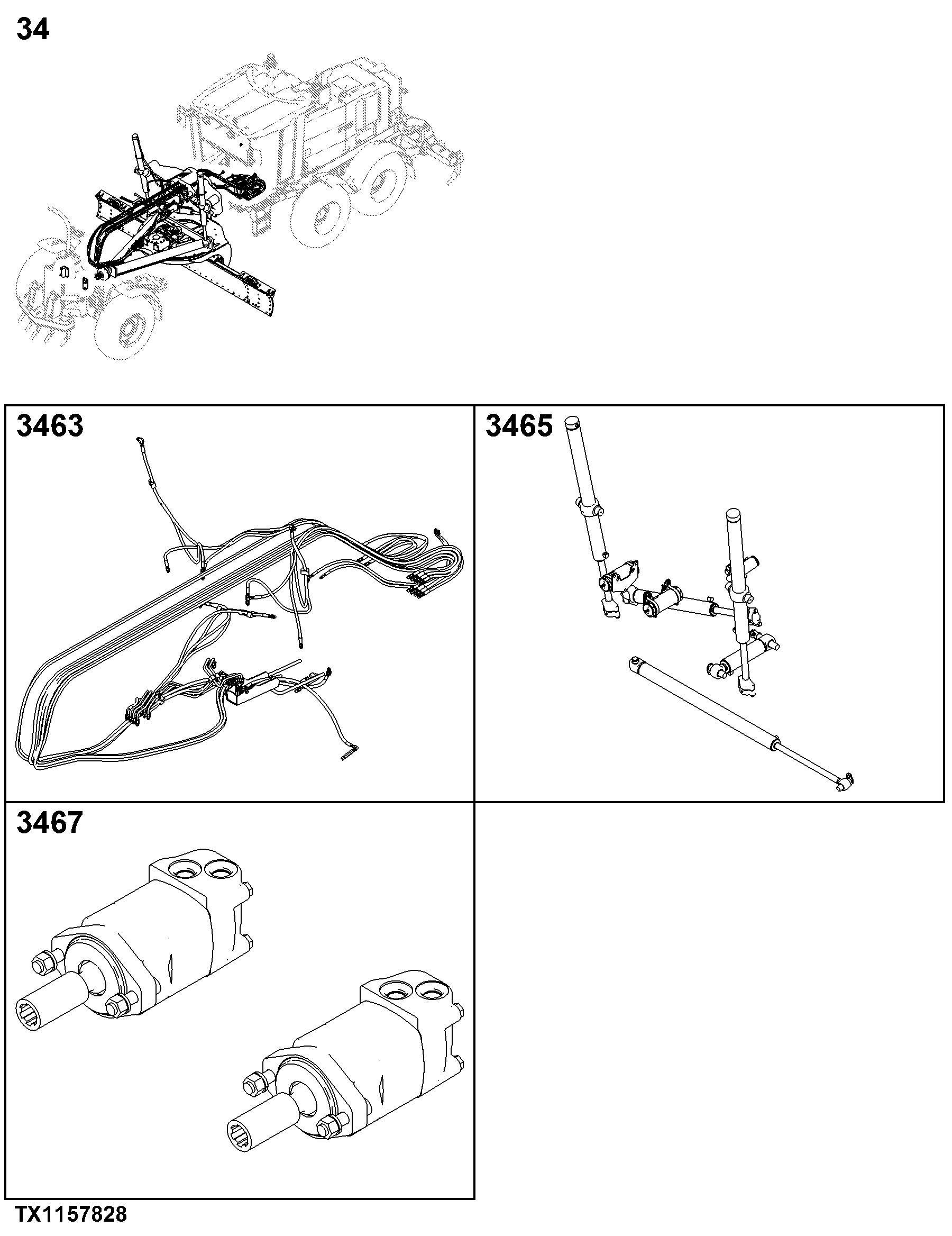

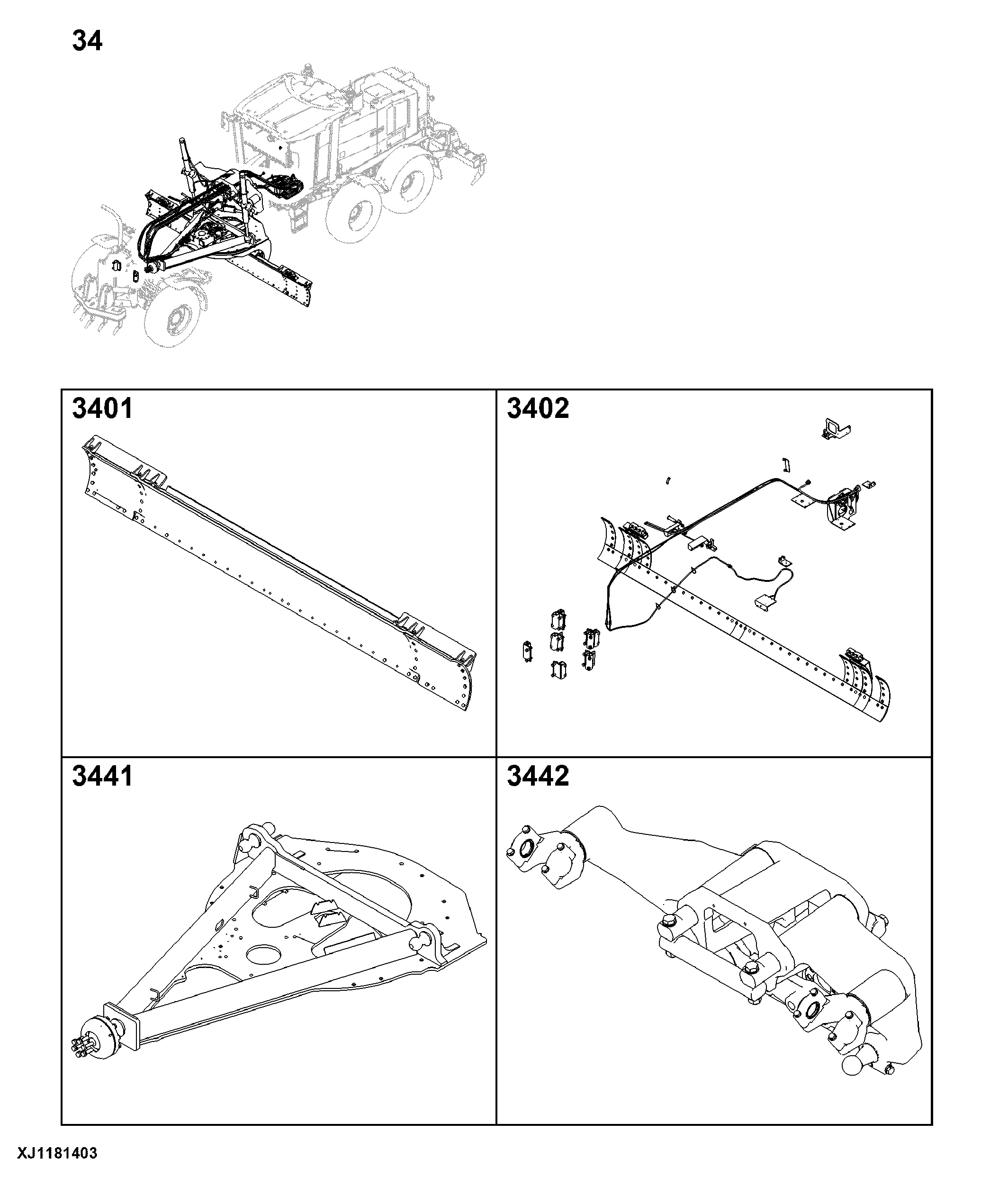

-	-	1	34 Grading Device	-

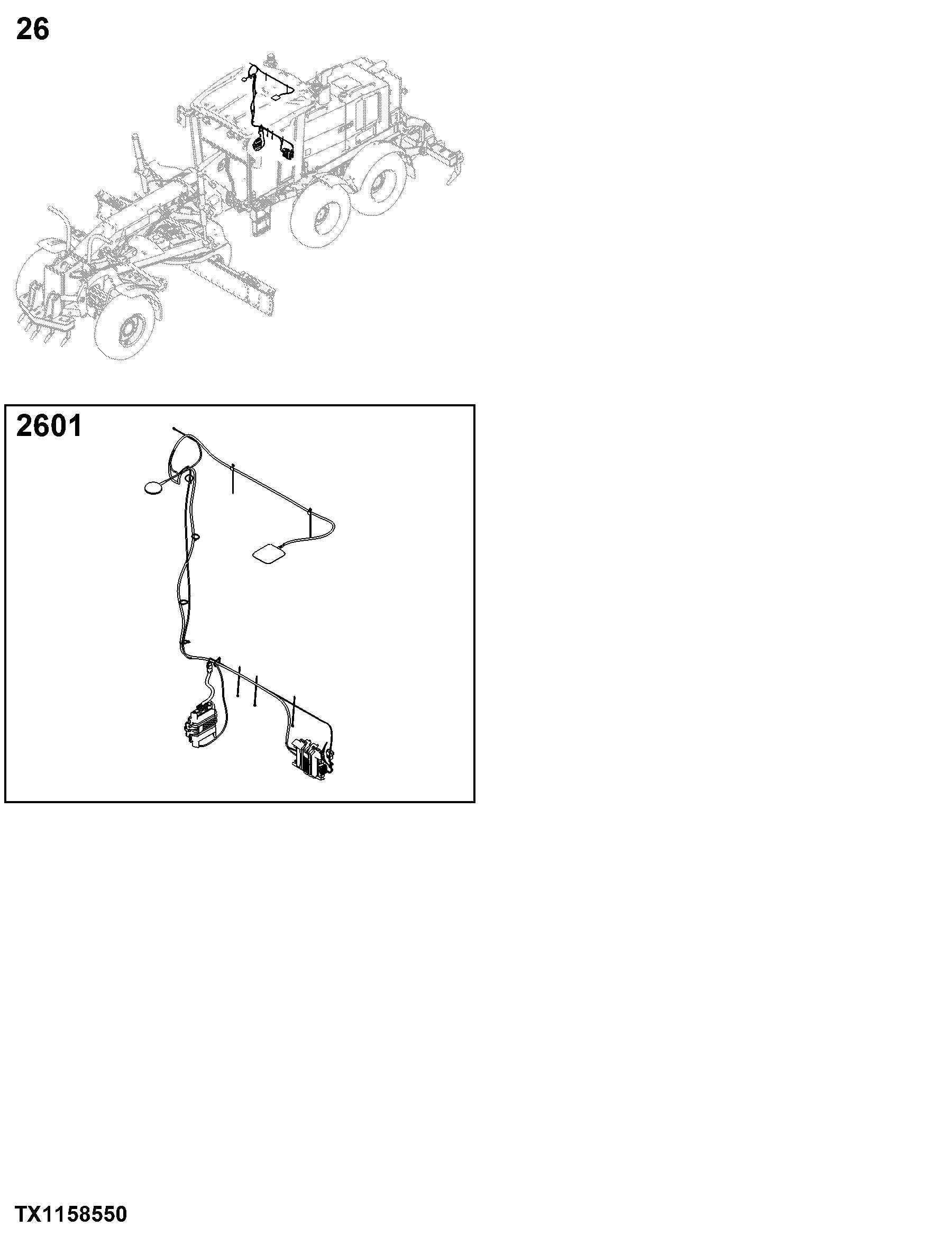

-	-	1	26 Global Vehicle Communication	-

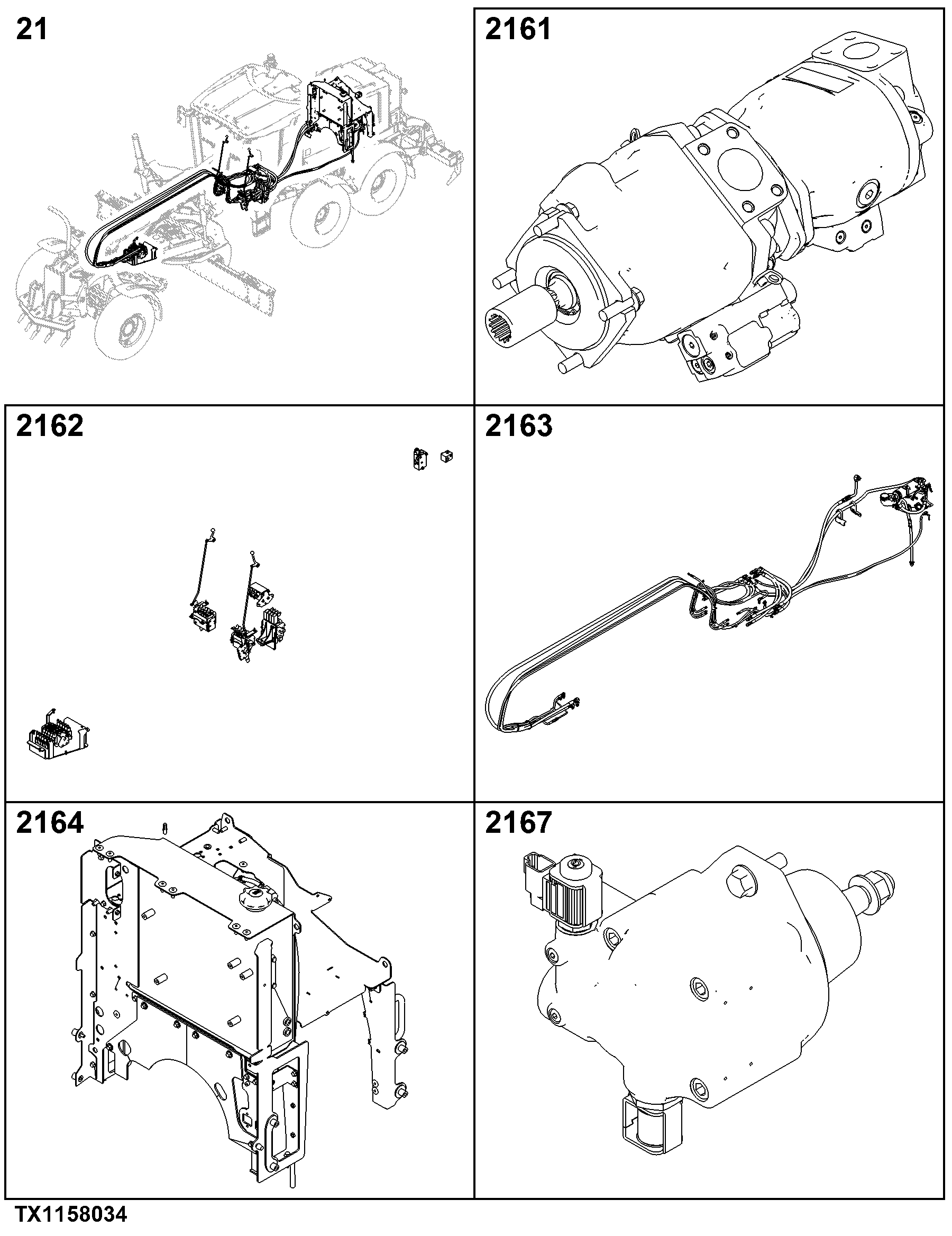

-	-	1	21 Vehicle Main Hydraulic System	-

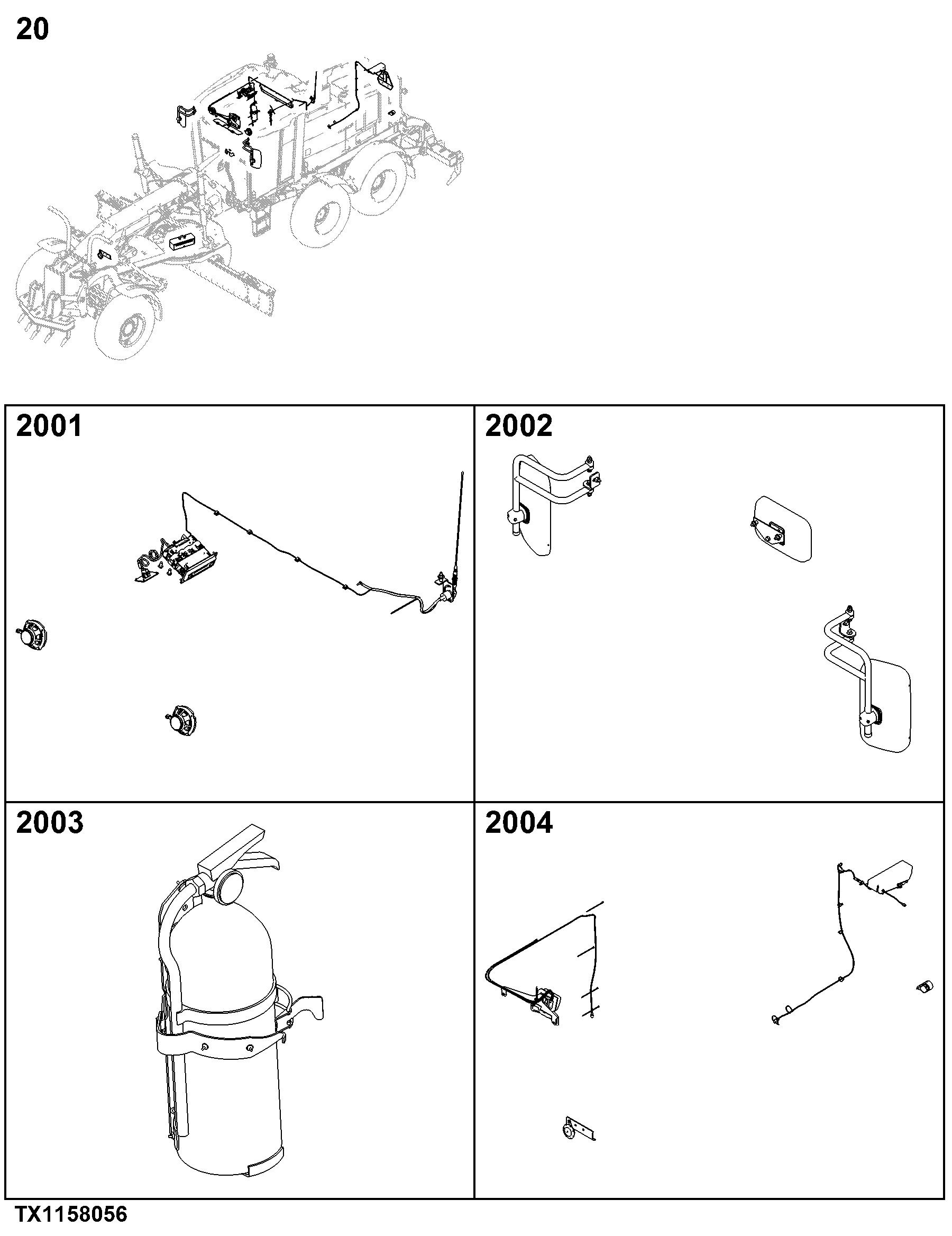

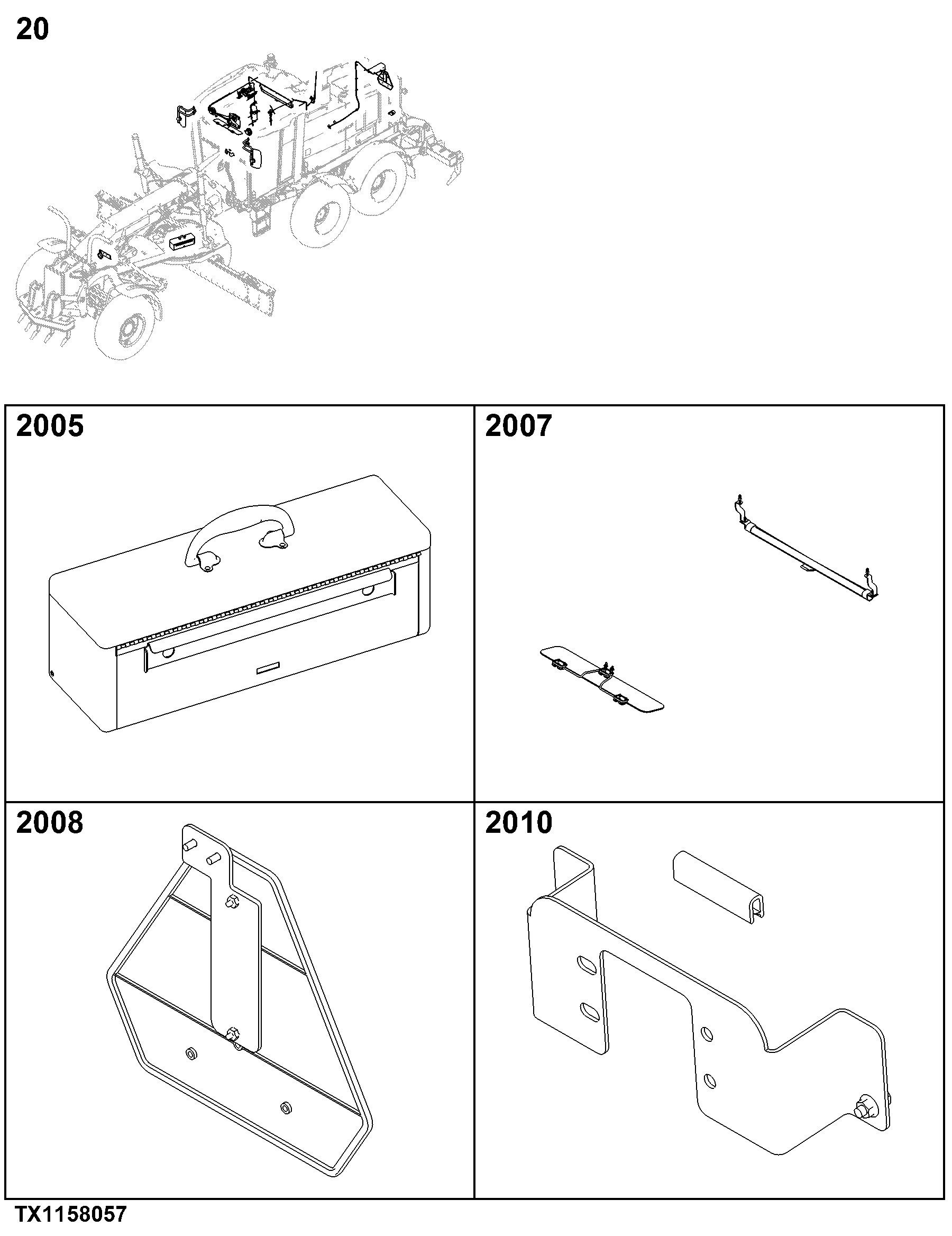

-	-	1	20 Safety, Convenience & Miscellaneous	-

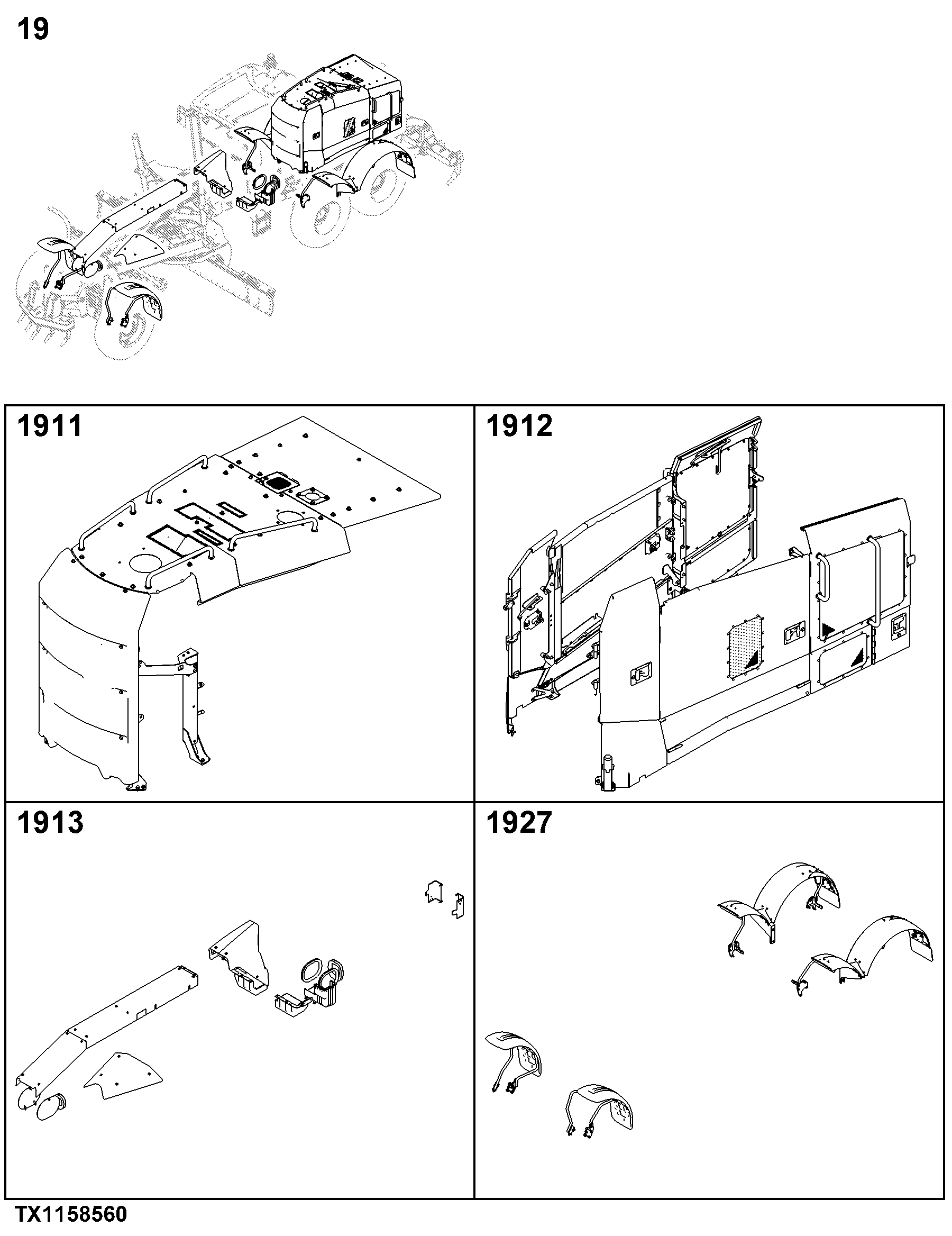

-	-	1	19 Sheet Metal and Styling	-

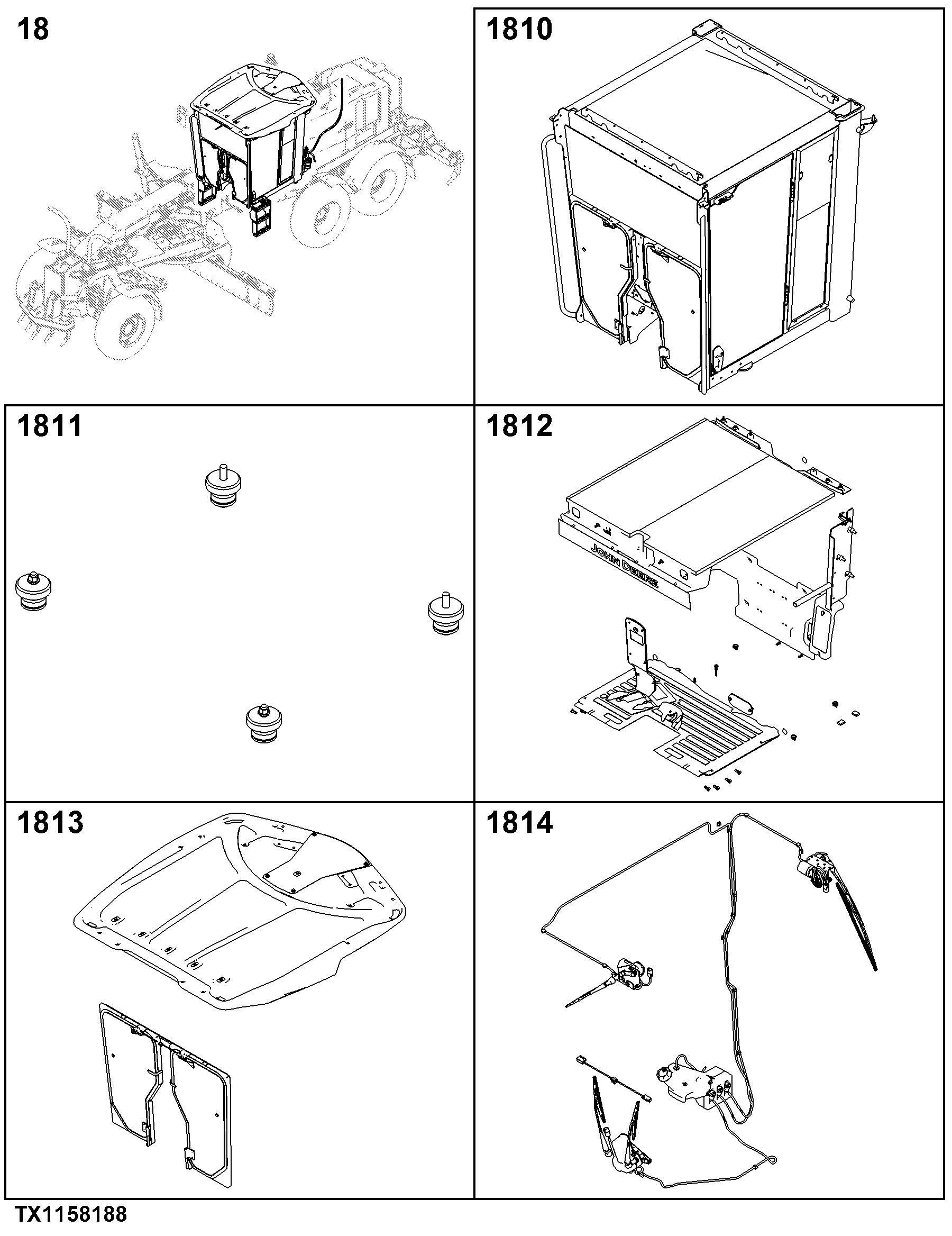

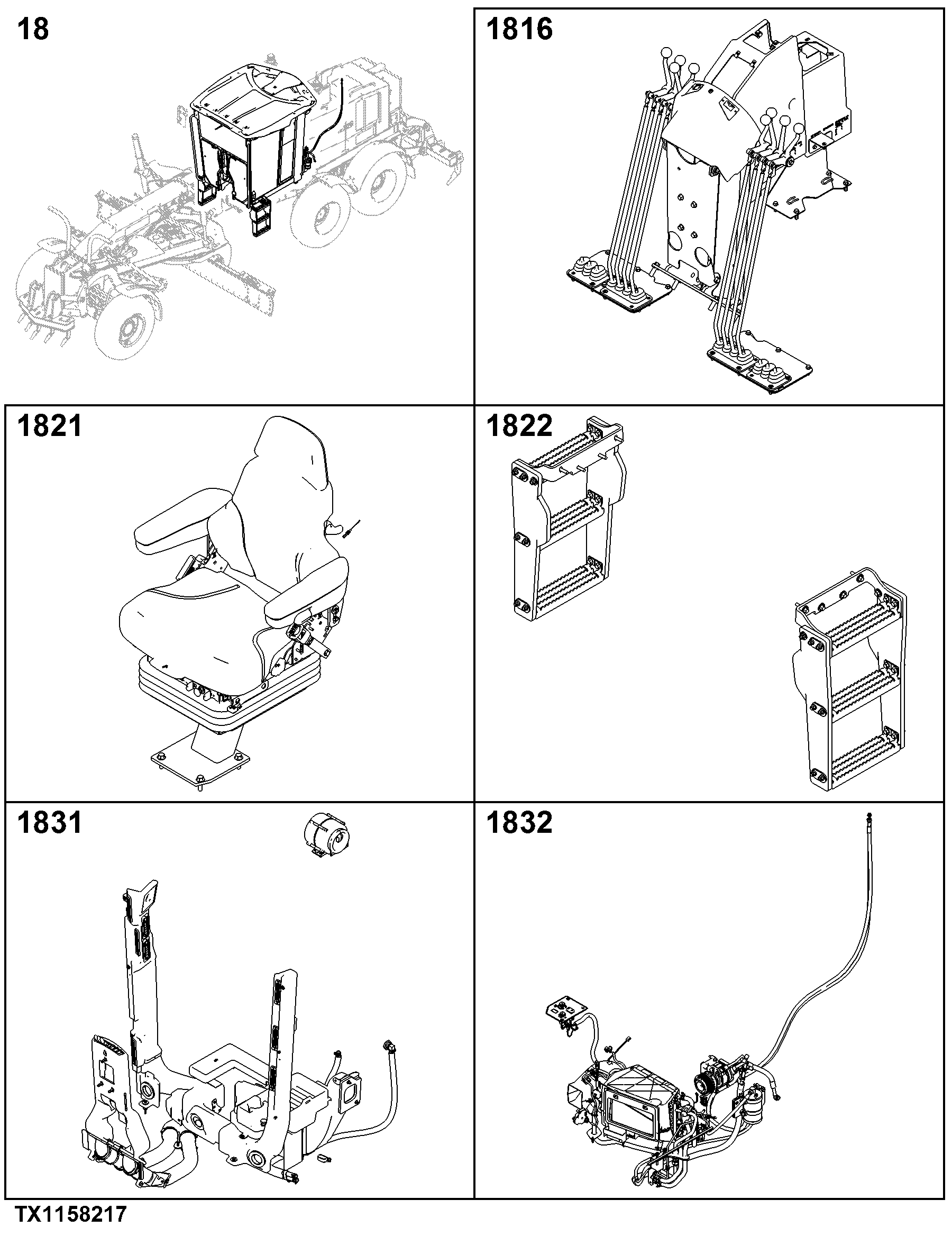

-	-	1	18 Operator's Station	-

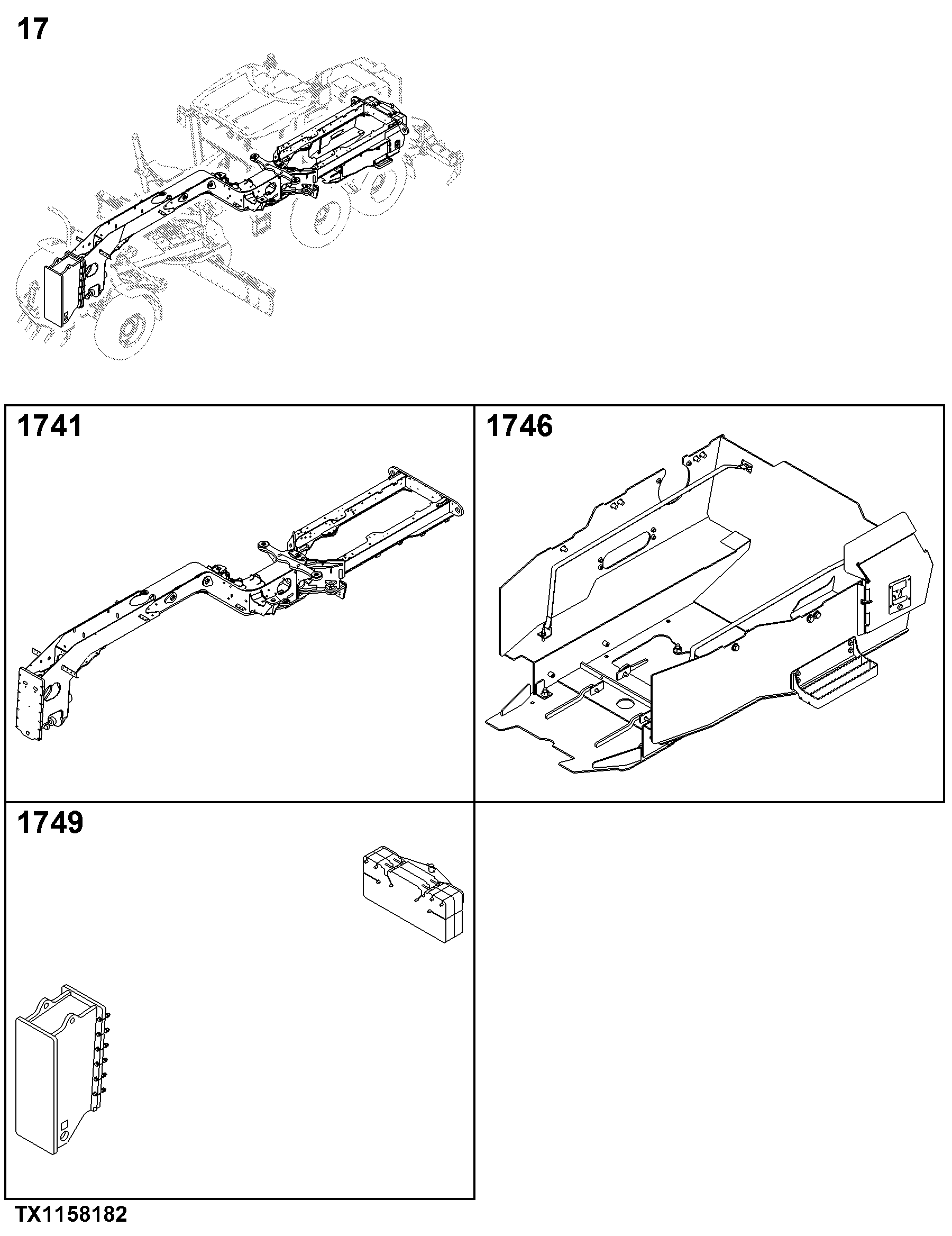

-	-	1	17 Frame Chassis Or Supporting Structure	-

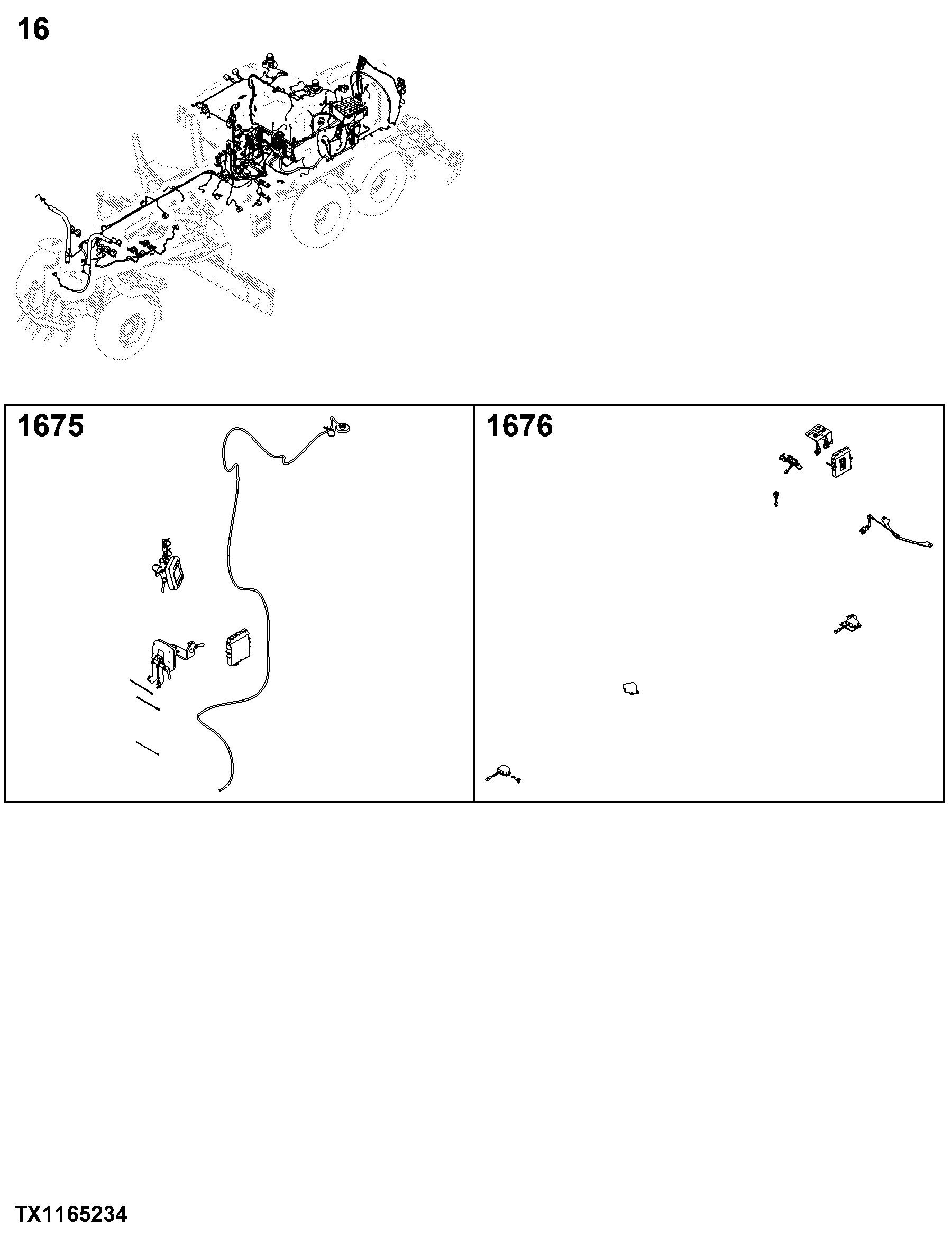

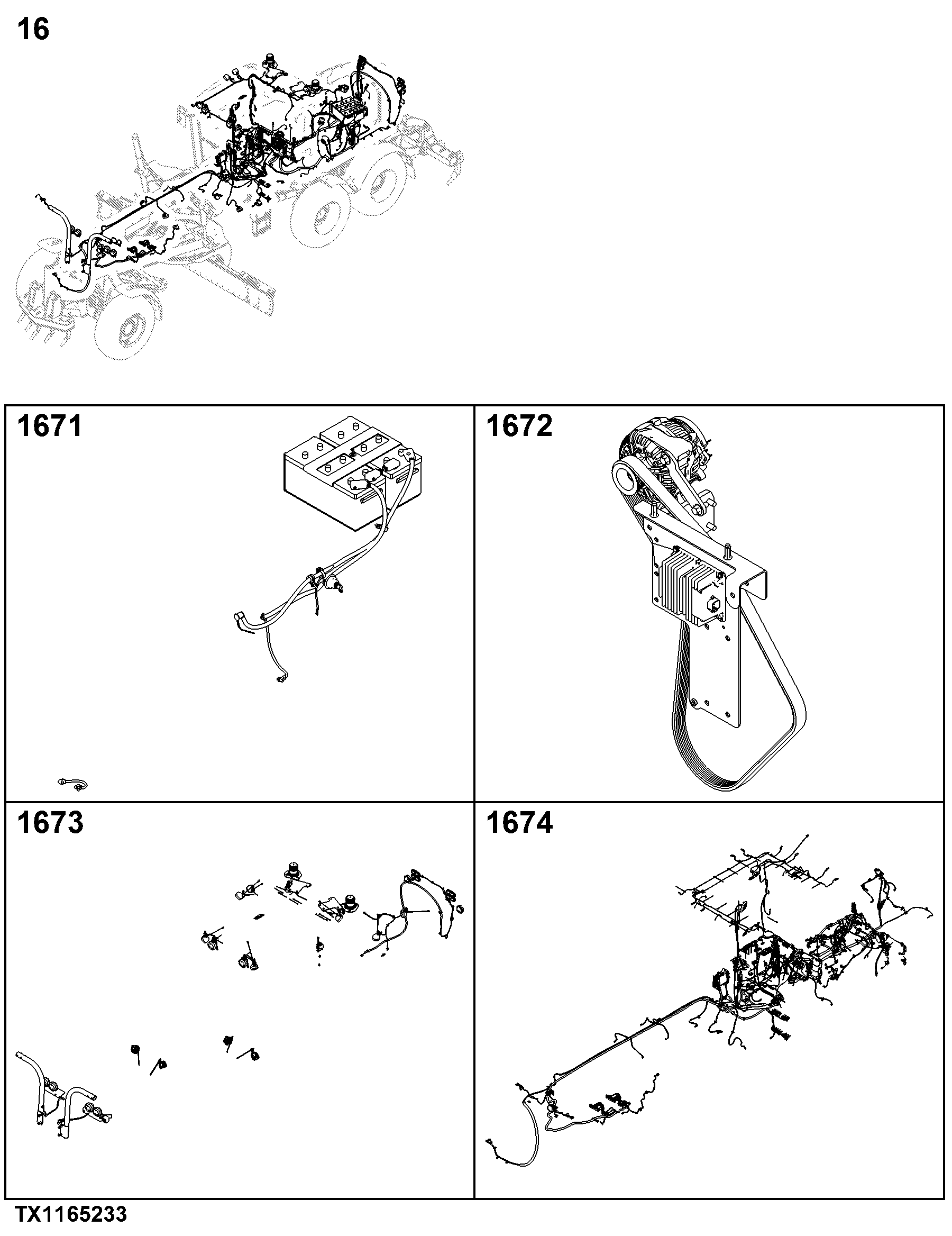

-	-	1	16 Vehicle Electrical Systems	-

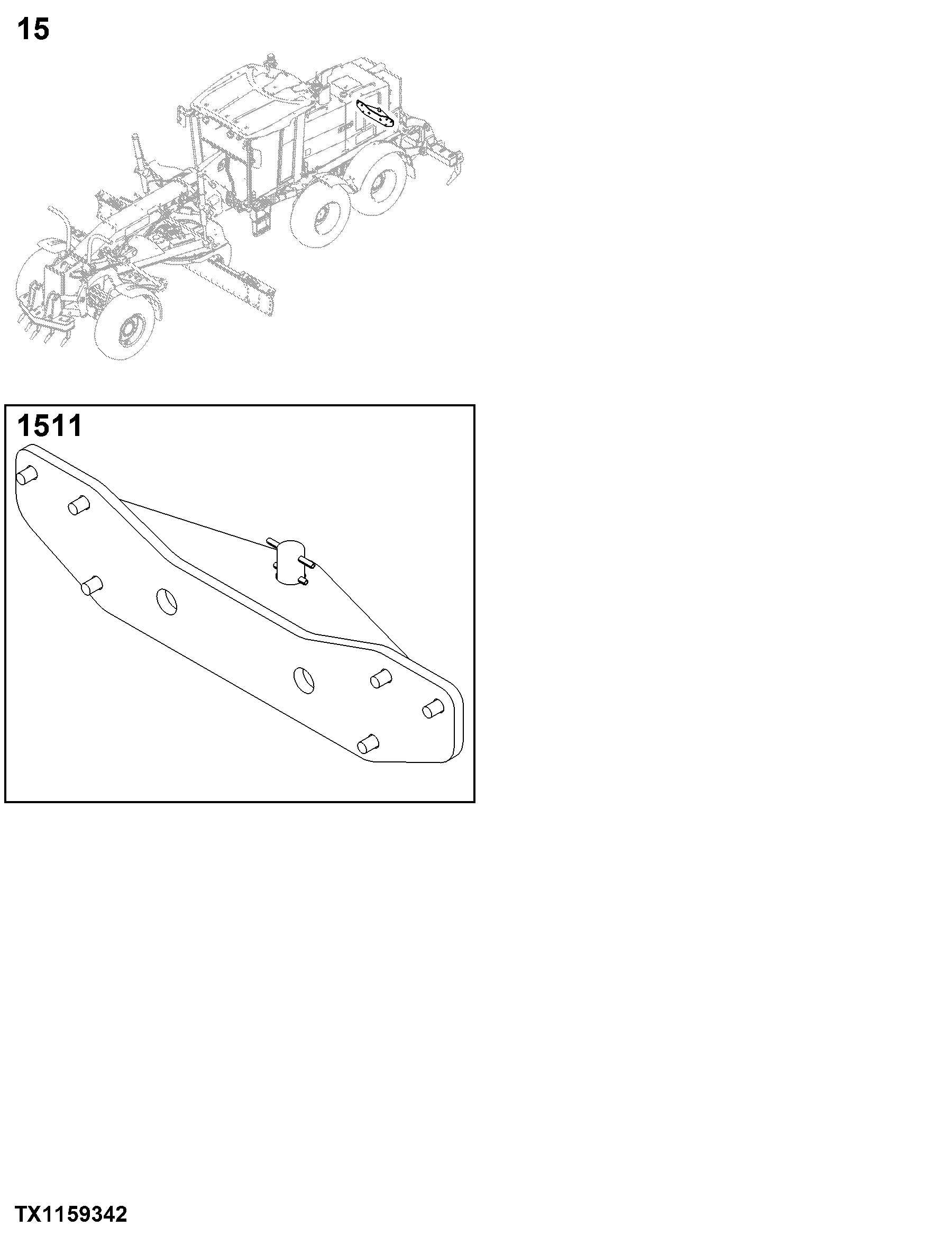

-	-	1	15 Equipment Attaching	-

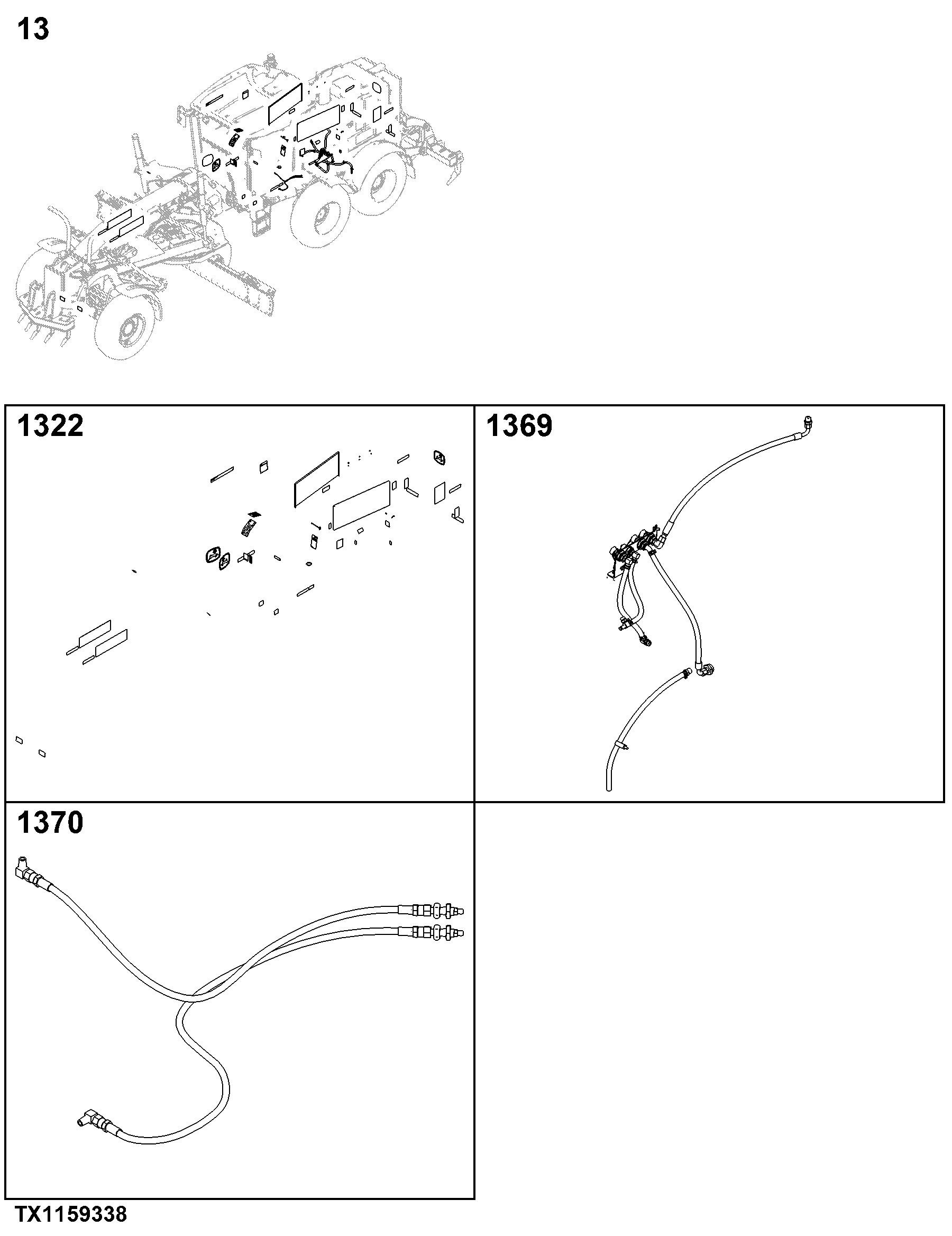

-	-	1	13 Miscellaneous Vehicle	-

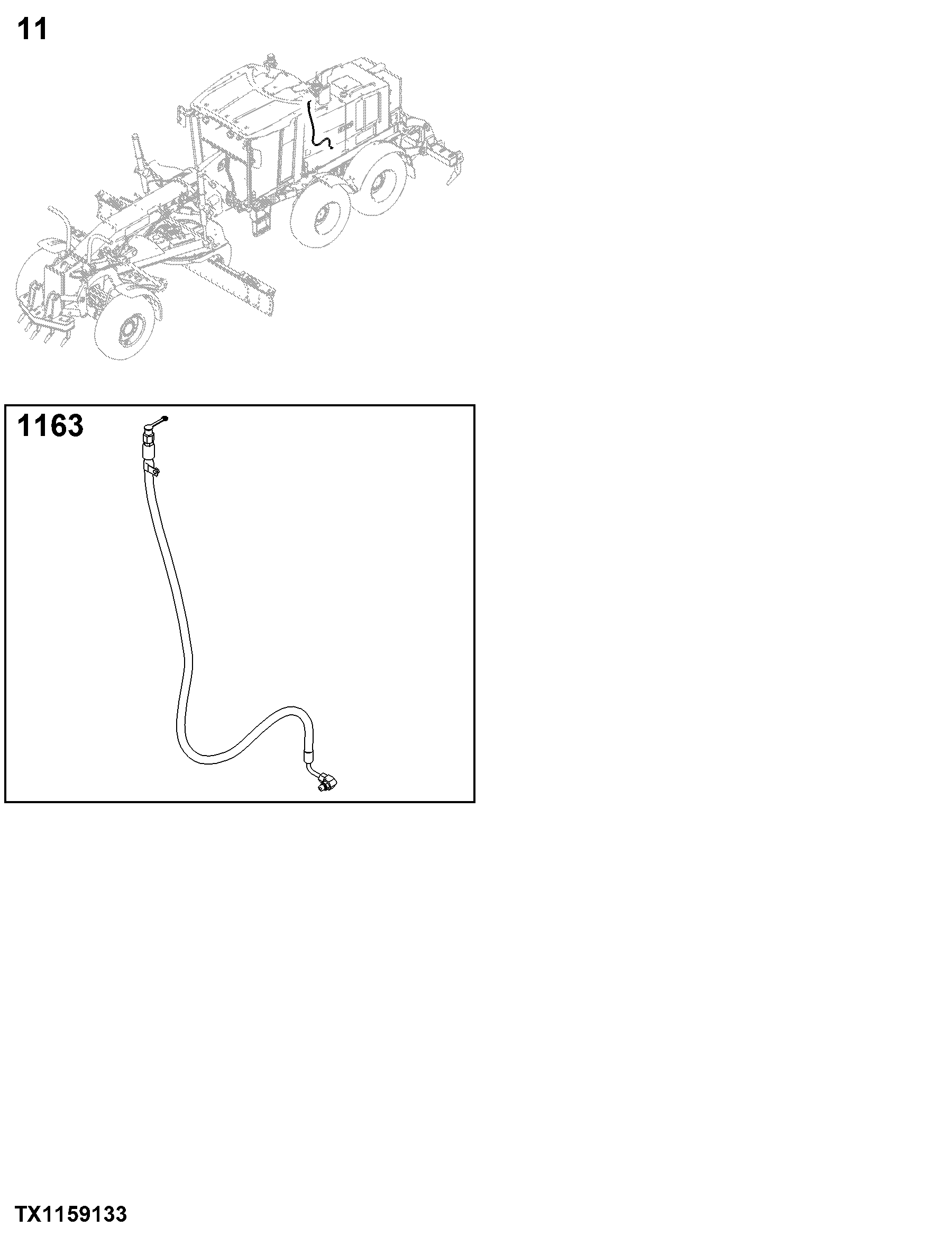

-	-	1	11 Parking Brakes	-

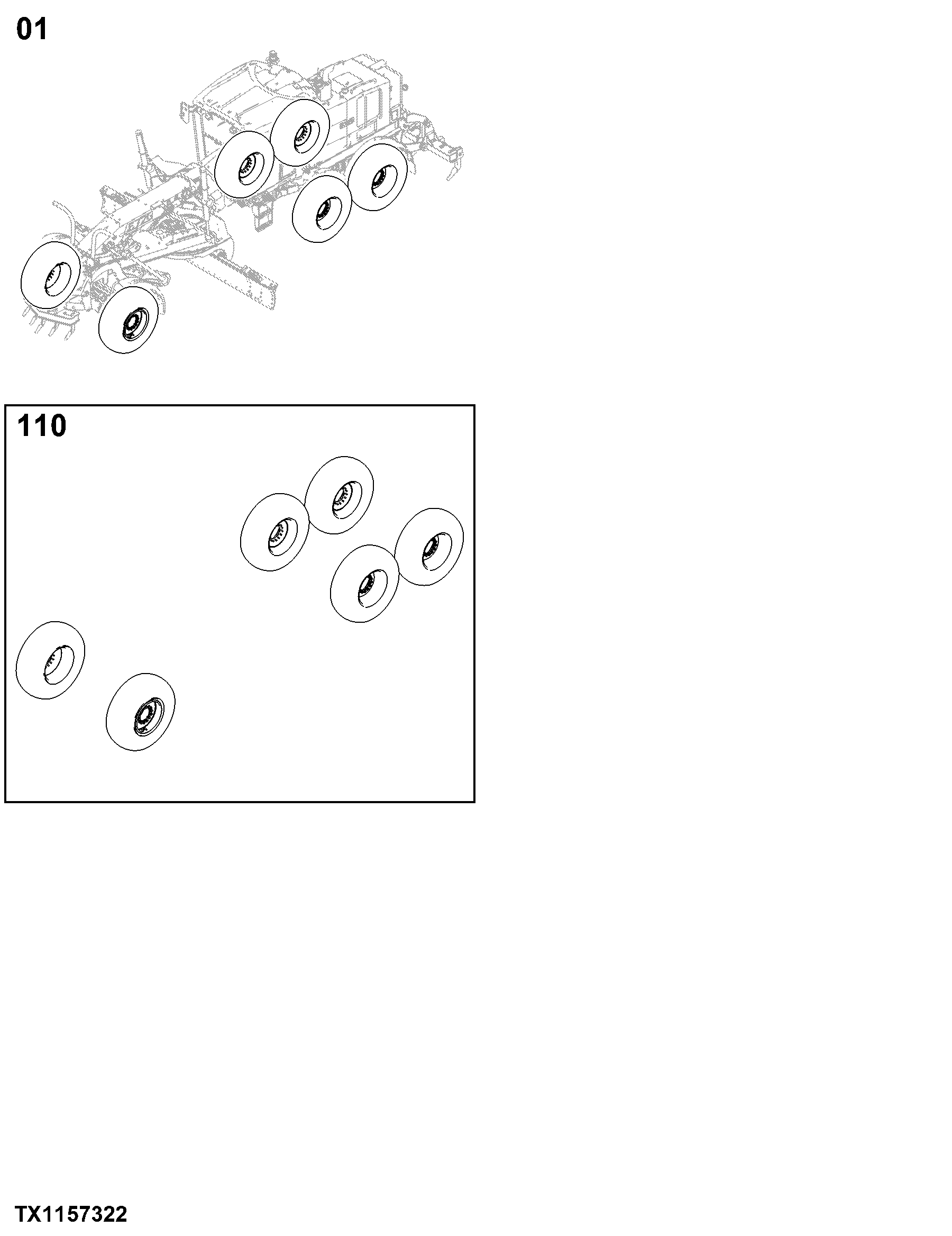

-	-	1	1 Wheels, Tires and Tracks	-

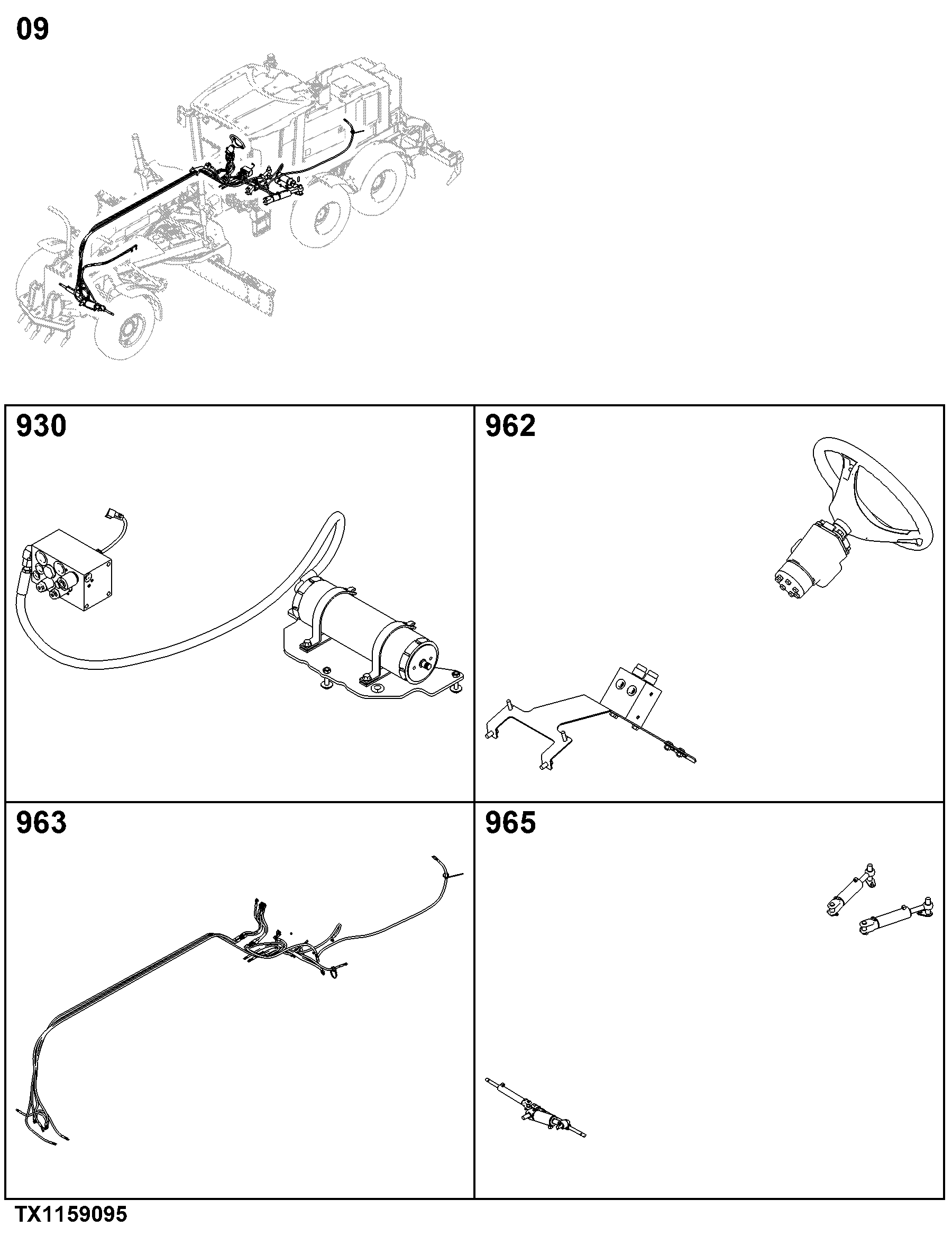

-	-	1	9 Steering System	-

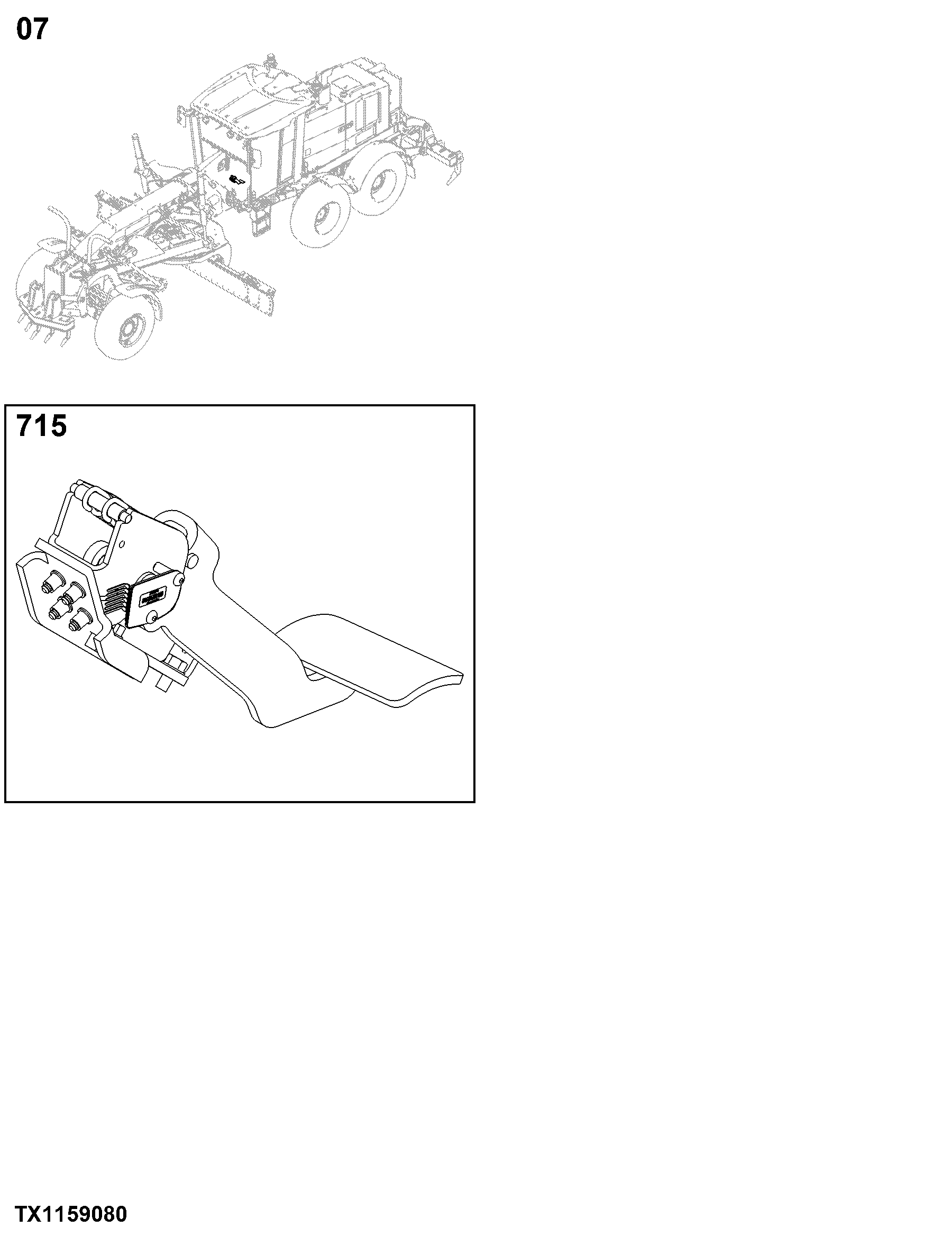

-	-	1	7 Traction (Engine) And Disconnect Clutch	-

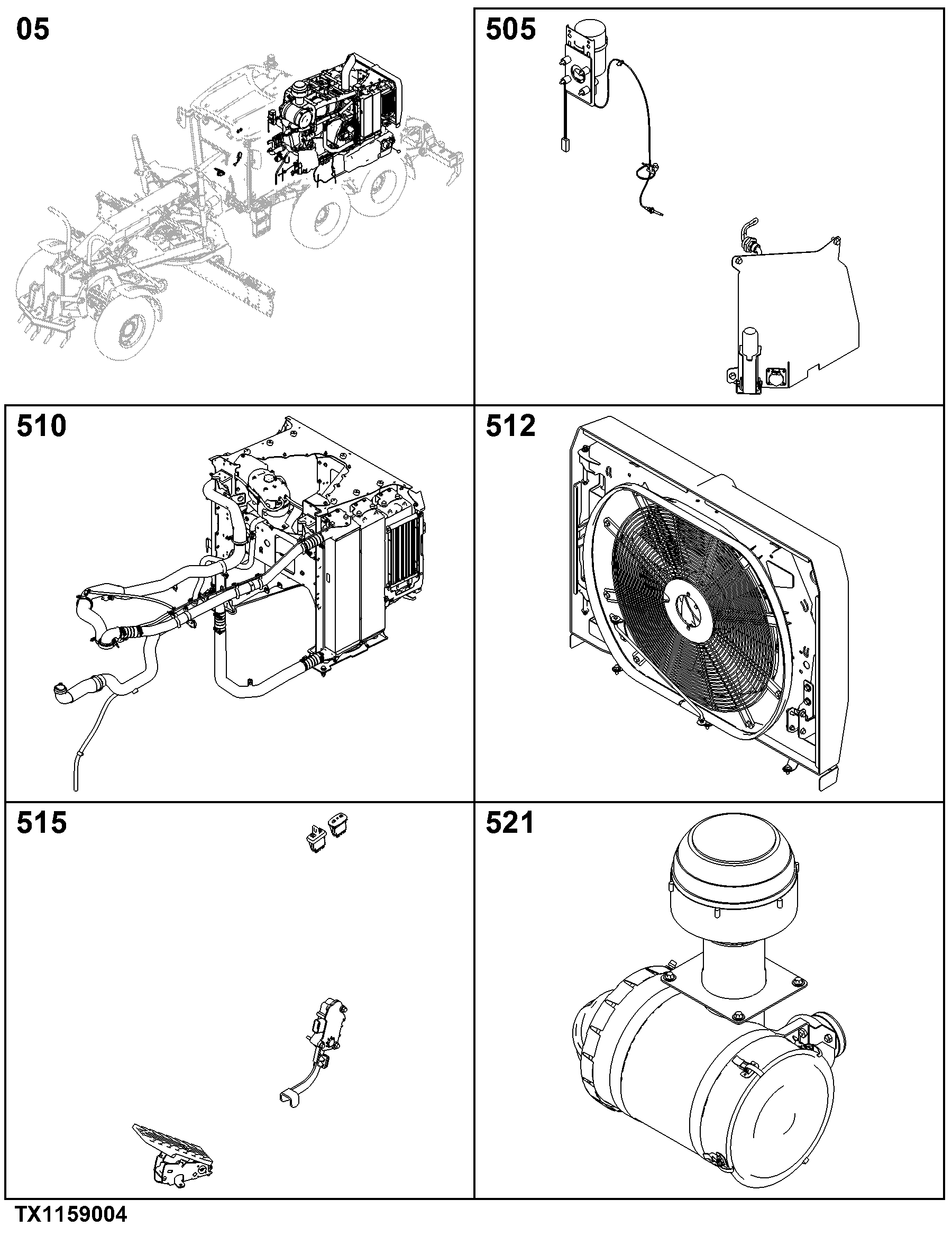

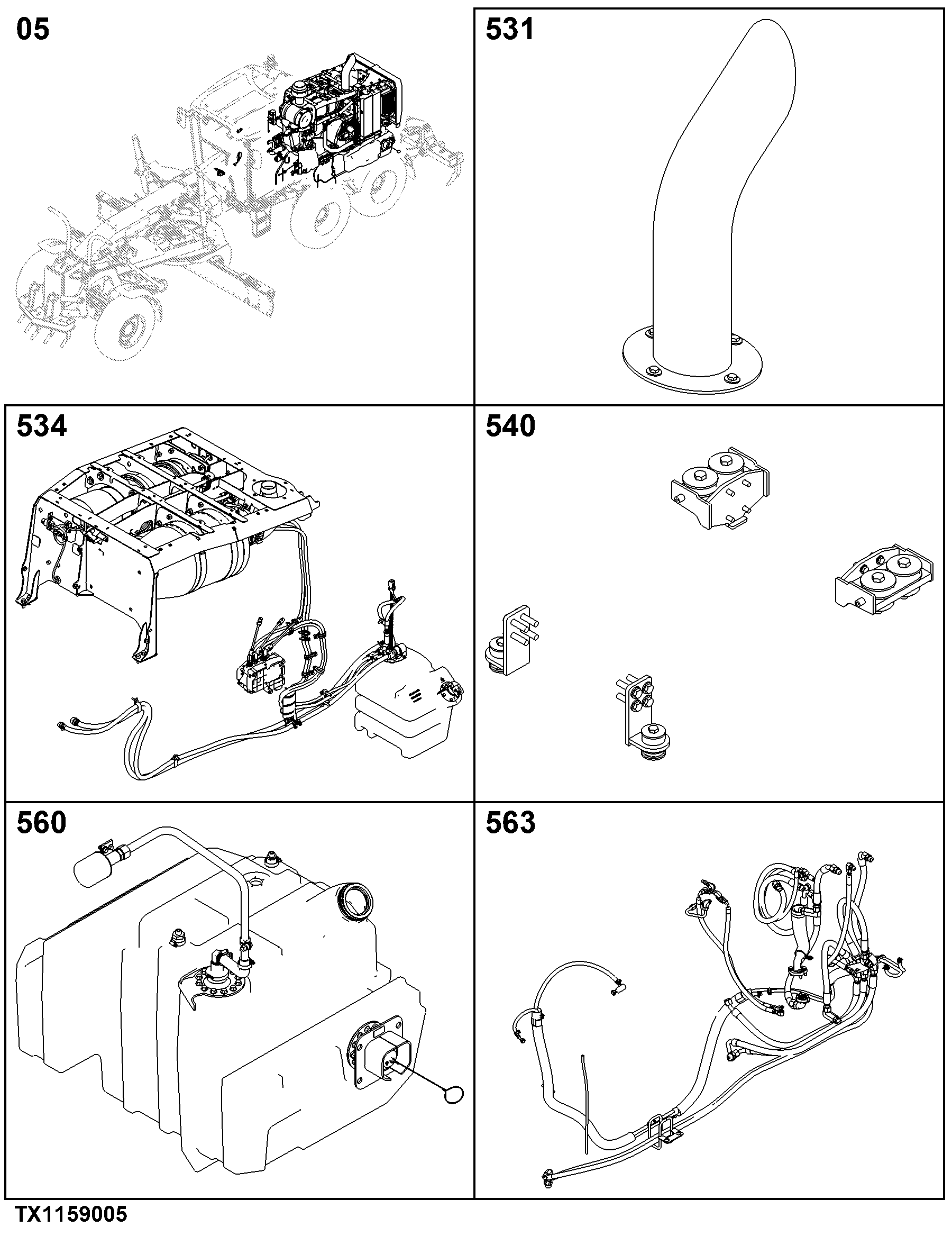

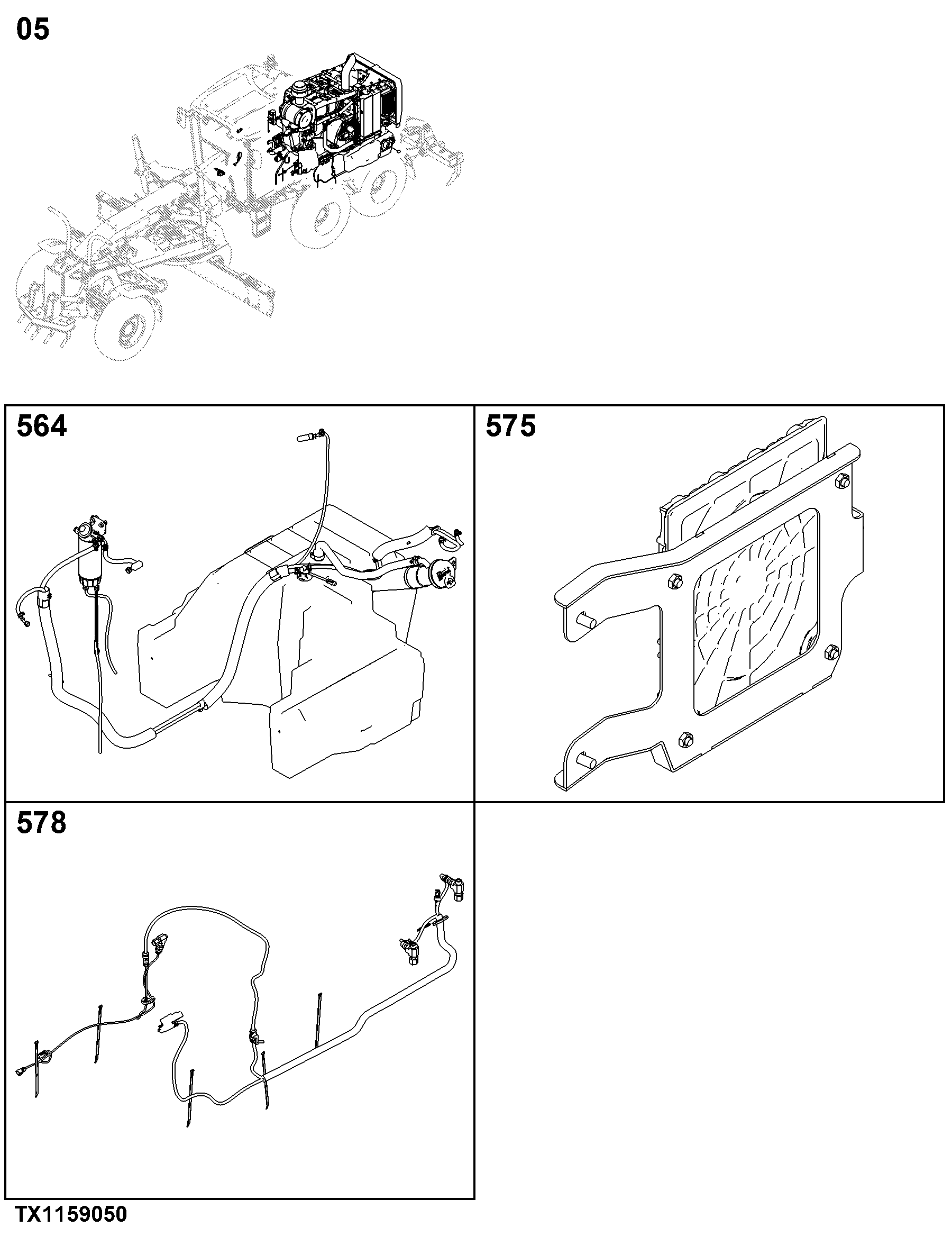

-	-	1	5 Engine Auxiliary System	-

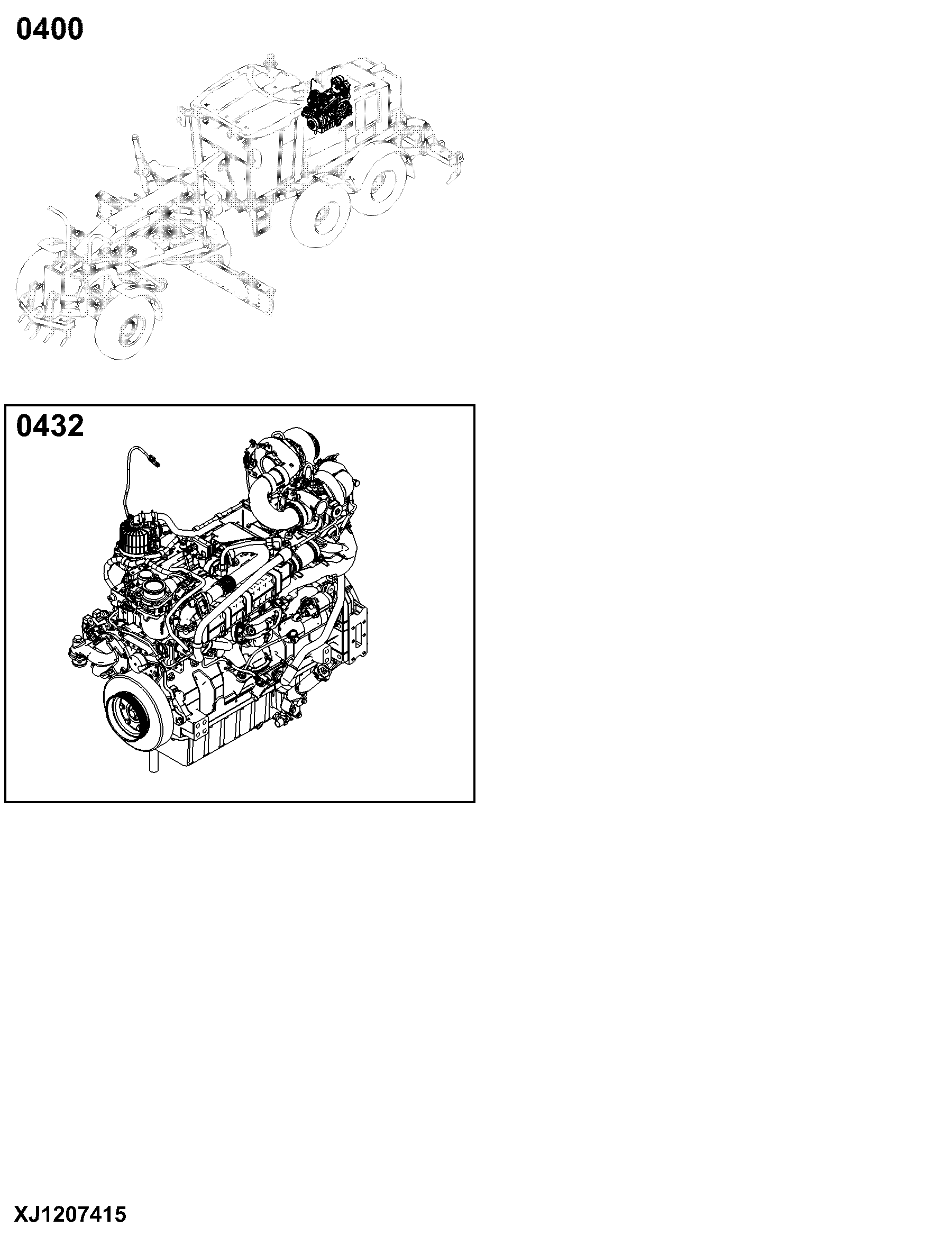

-	-	1	04C Engine – Misc. Engine / Complete Engine	-

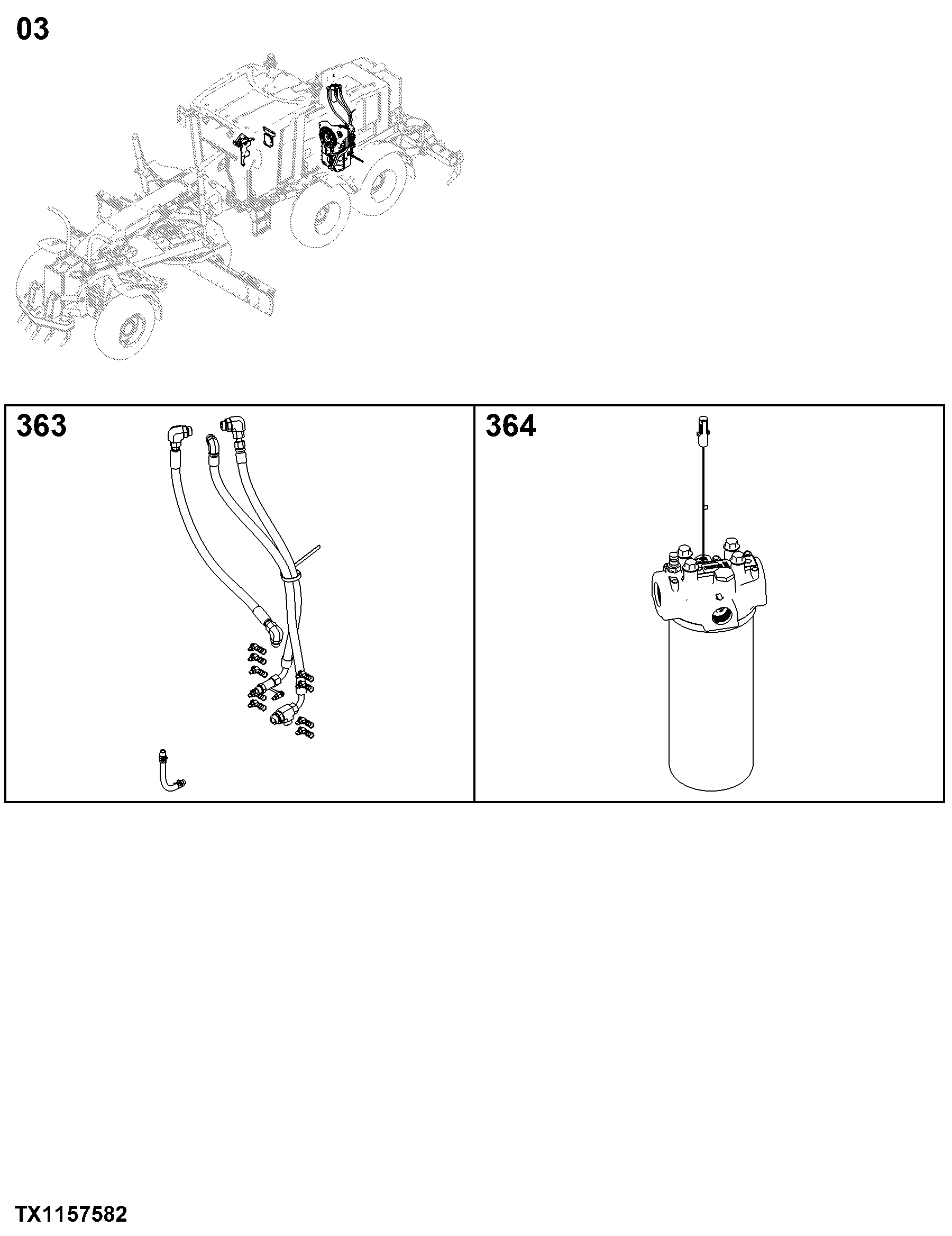

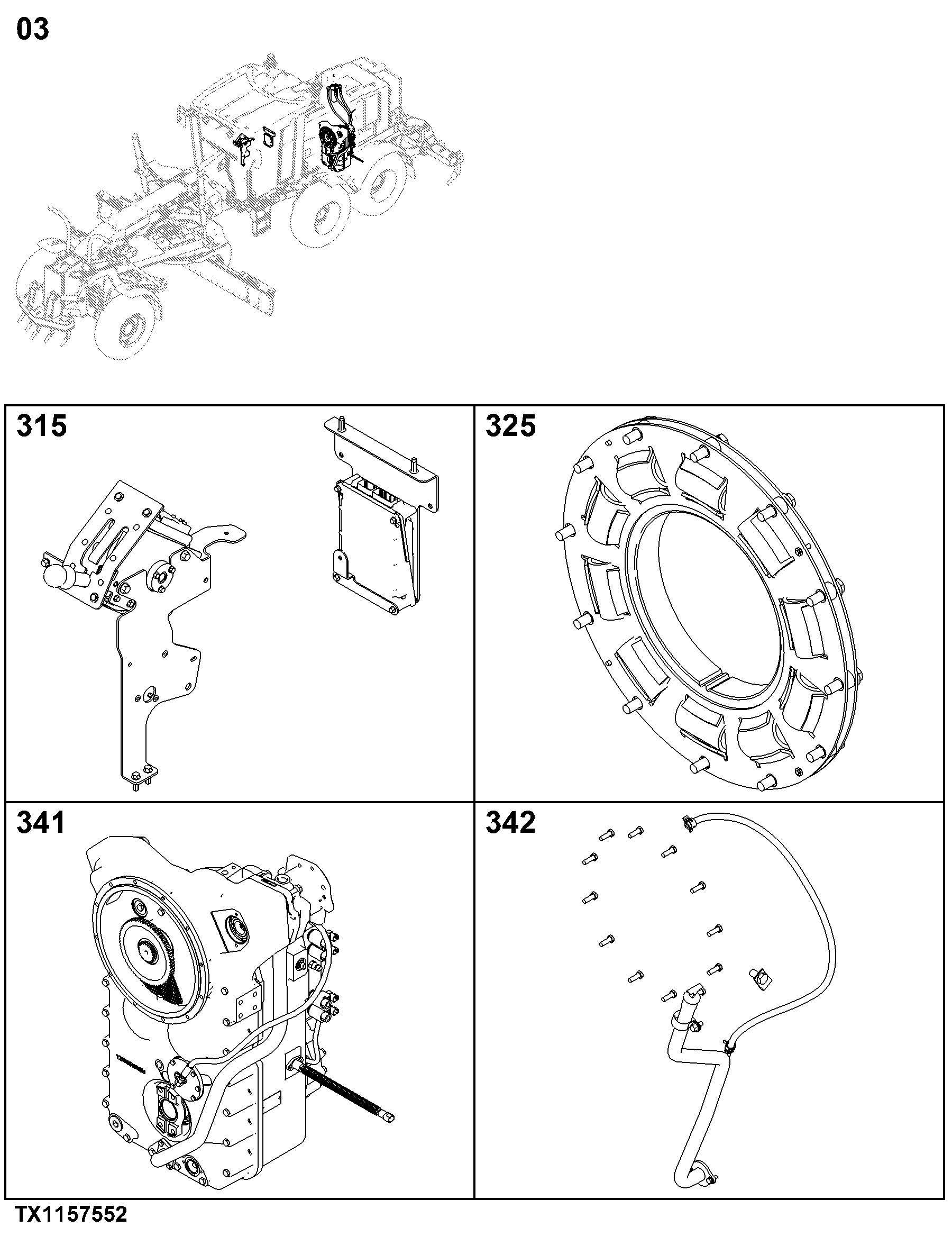

-	-	1	03A Transmission	-

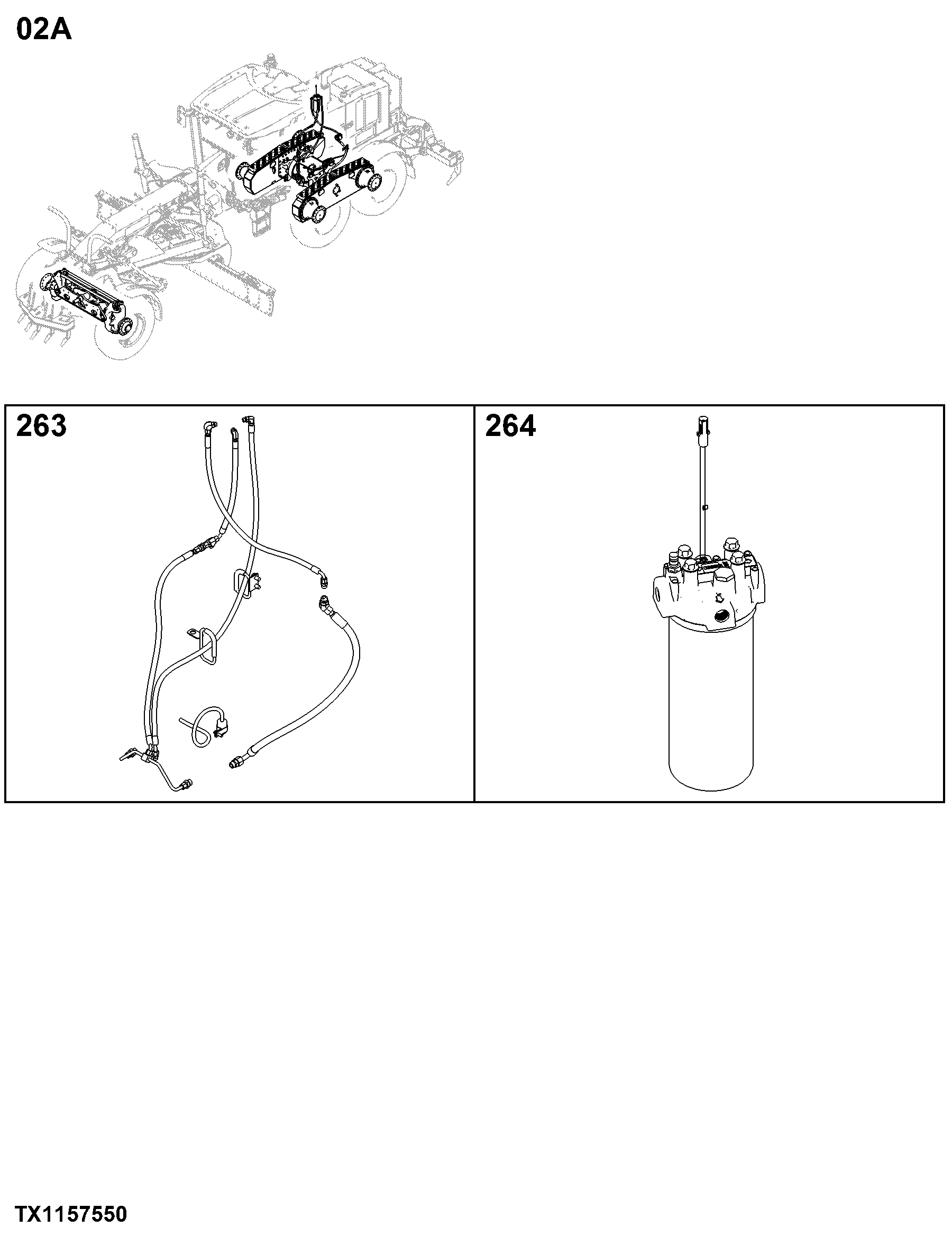

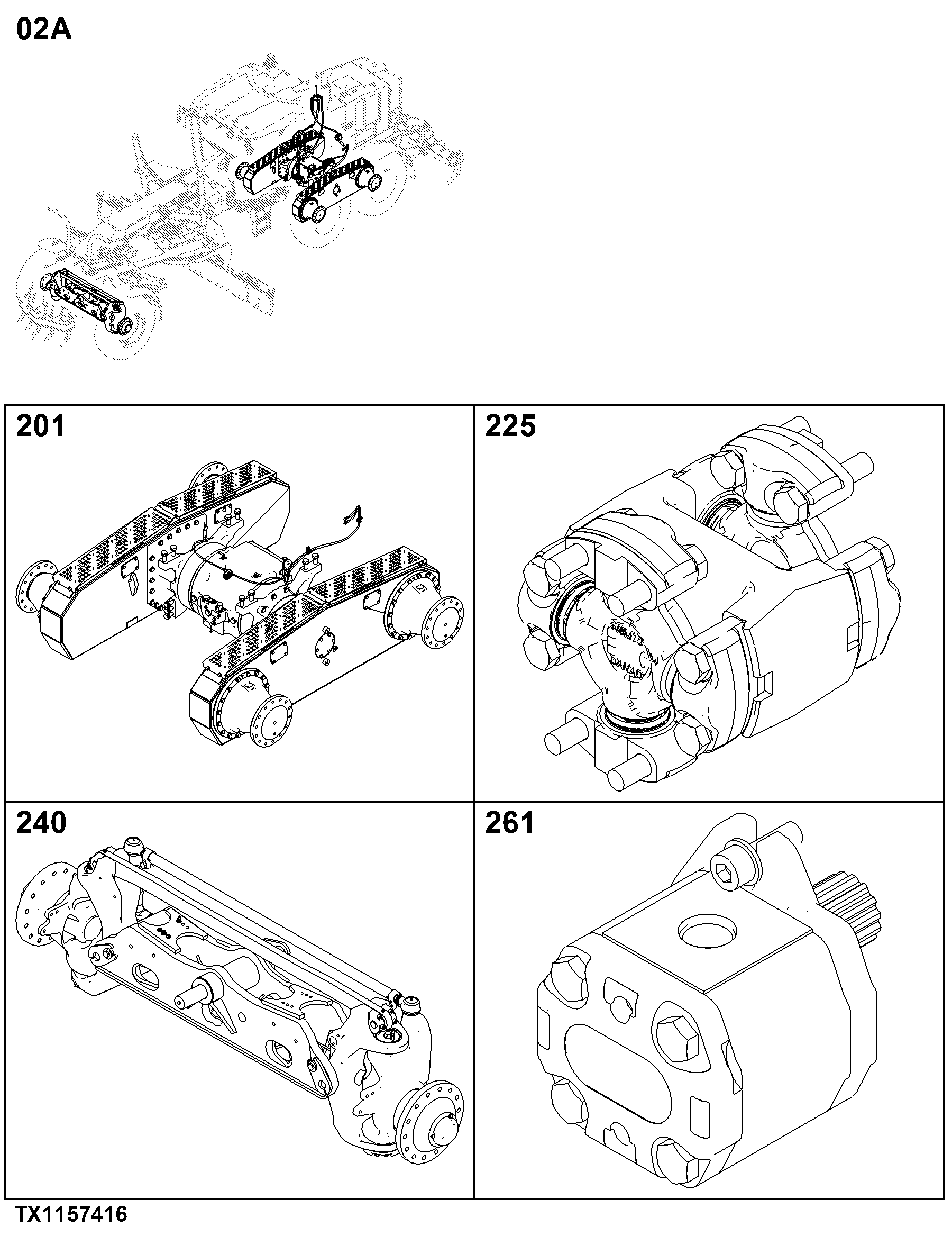

-	-	1	02A Axles, Differentials and Suspension Systems	-
