Открытый узел

Timing Gear Cover, Water Pump, Lower Idle Gear

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE516674	1	Kit	INCL. INSTRUCTIONS
2	-	1	Part 2	NSEP; (MARKED R504725 ) (ORDER RE516674)
3	R136516	1	Gasket	-
4	RE517370	1	Fitting	M20 x 1,5 mm, (SUB FOR RE501938)
5	51M7044	1	O-Ring	17.300 X 2.200 mm
6	RE516340	1	Seal	(SUB FOR RE59810)
7	RE505981	1	Water Pump	(ALSO ORDER R123417 AND R123226)
8	RE46685	1	Fitting Plug	M18 x 1,5 mm
9	51M7043	1	O-Ring	15.300 X 2.200 mm
10	RE70962	1	Engine Kit	INCL. INSTRUCTIONS, (ALSO ORDER R123417 AND R123226)
11	R123226	1	Seal	-
12	A364R	1	Snap Ring	-
13	-	1	Part 13	NSEP; (MARKED R123395 ) (ORDER RE515314)
14	19M7863	5	Screw	M6 X 25
15	19M7796	2	Screw	M6 X 30
16	RE508566	1	Insert	KIT, INCL. INSTRUCTIONS
17	R123417	1	Gasket	-
18	19M8317	6	Screw	M8 X 40
19	R121424	1	O-Ring	-
20	R121411	1	Cover	-
21	19M7775	3	Screw	M6 X 16
22	19M8291	1	Screw	M8 X 35
23	RE67239	1	Screw	M8 X 45, THREADS WITH PRE-APPLIED SEALANT
24	14M7296	6	Flange Nut	M10
25	19M7801	1	Screw	M8 X 60
26	19M7979	2	Screw	M8 X 55
27	RE56369	1	Gear	Z= 43, (MARKED R120636)
28	R114193	1	Bushing	-
29	R131283	1	Thrust Washer	11 X 60 X 3 mm
30	19M8966	1	Screw	M10 X 50, (SUB FOR 19M8292, THIS APPLICATION)
31	RE505501	1	Bleed Valve	-
32	19M7867	1	Screw	M8 X 25
33	R504734	1	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")

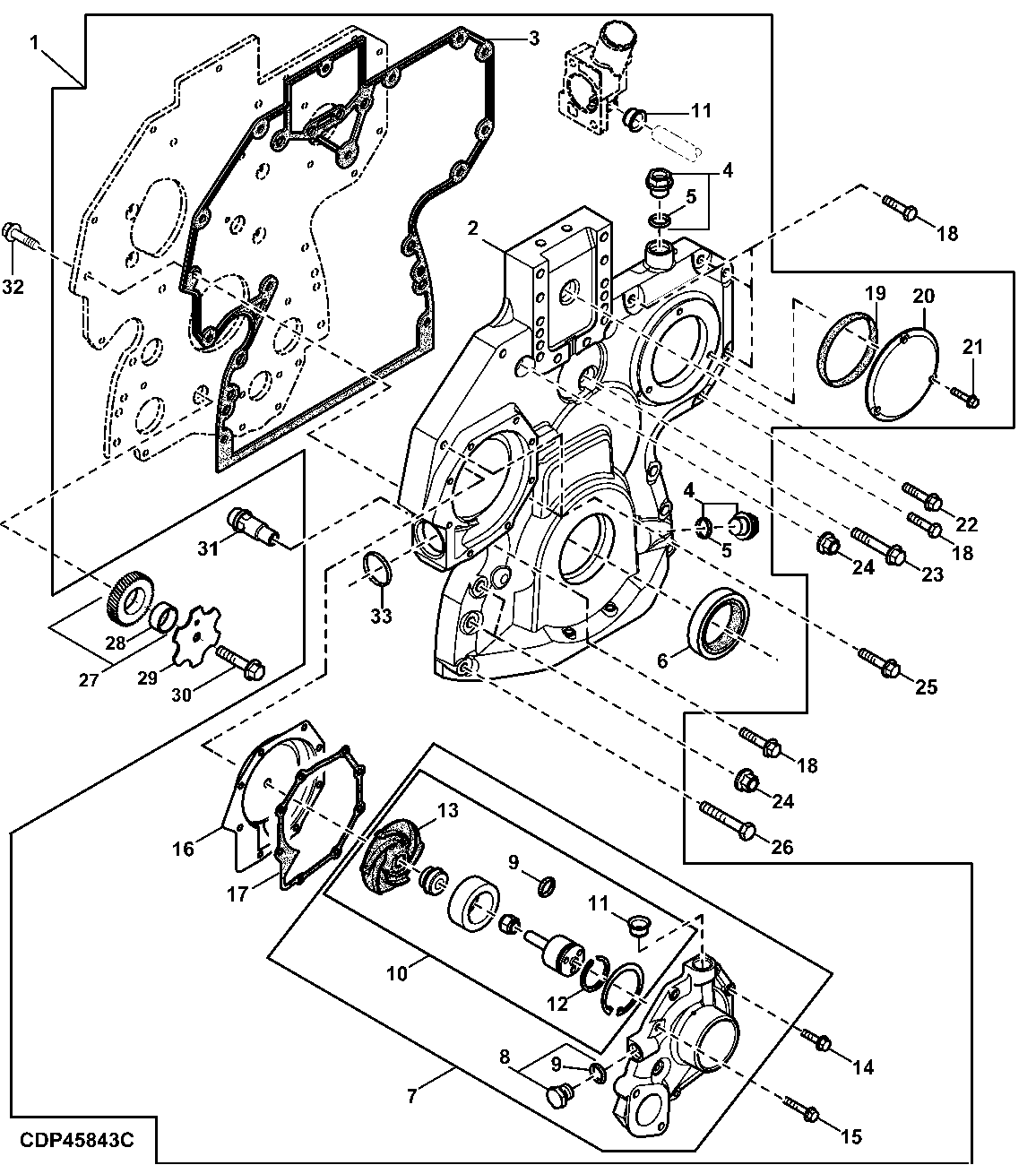

Timing Gear Cover, Water Pump, Lower Idle Gear

Нет текстового описания
