Открытый узел

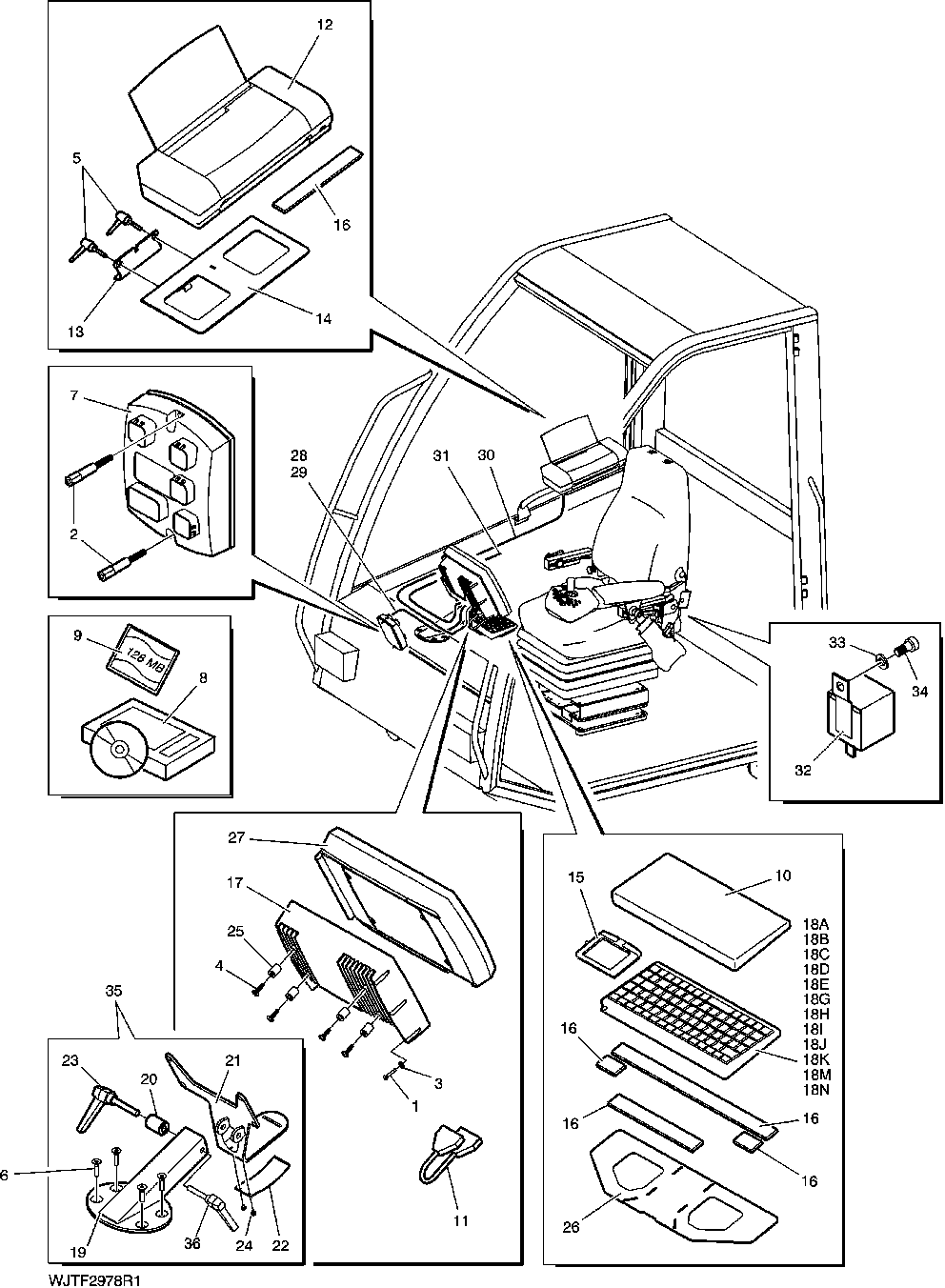

Control Unit and Measuring Device (000150 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9474	6	Screw	M4 X 25
2	21M7547	2	Screw	M5 X 25
3	24M7501	6	Washer	4.300 X 9 X 0.800 mm
4	19M9436	4	Screw	M6 X 25
5	F054607	2	Control Lever	-
6	19M9562	4	Screw	M8 X 30
7	F064578	1	Module	-
8	F064487	1	Software	-
9	F688498	1	Computer Hardware Item	USB Memory Stick, SUB FOR F070756
10	F064685	1	Cover	-
11	F065310	1	WIRING HARNESS	-
12	F073088	1	Computer Hardware Item	Printer, SUB FOR F070434
13	F619056	1	BRACKET	-
14	F619077	1	BRACKET	-
15	F628502	1	Computer Hardware Item	-
16	-	1	Part 16	NLA; CTL x, MF F061192
17	F639597	1	COMPUTER ACCESSORY	HPC07 Replacement Kit, W/ Windows XP, SUB FOR F627578; NLA
19	-	1	Part 30	-
20	F629256	1	BUSHING	-
21	-	1	Part 32	-
22	F622216	1	SPRING	-
23	F065145	1	LEVER	-
24	F024662	2	SCREW	-
25	F630112	4	Bushing	-
26	F630966	1	Holder	-
26	F629665	1	Bracket	-
27	F629770	1	DISPLAY MODULE	-
28	-	1	Part 40	COMPONENTS ON SEPARATE PAGE, CAN XD1-XH1
29	-	1	Part 41	COMPONENTS ON SEPARATE PAGE, CAN XC11-P4
30	-	1	Part 42	Printer Cable, COMPONENTS ON SEPARATE PAGE
31	-	1	Part 43	Power Supply, COMPONENTS ON SEPARATE PAGE
32	F005313	1	Audible Warning Alarm	-
33	F042804	1	LOCK WASHER	-
34	19M9674	1	Cap Screw	M6 X 12
35	F629260	1	STAND	Incl. Keys 19-24
36	F067401	1	Lever	-
18A	F064442	1	Computer Hardware Item	See Solution 118398 Keyboard, Finnish/Swedish, NLA
18B	F064443	1	Computer Accessory	Keyboard, English, Poland
18C	F065290	1	Computer Hardware Item	Keyboard, Russian
18D	F065291	1	Computer Hardware Item	Keyboard, German
18E	F065292	1	Computer Accessory	Keyboard, French
18G	F065294	1	Computer Hardware Item	Keyboard, Norwegian
18H	F065295	1	Computer Accessory	See Solution 118398 Keyboard, English, U.S.A, NLA
18I	F065296	1	Computer Hardware Item	Keyboard, Portugese
18J	F065297	1	Computer Hardware Item	Keyboard, Spanish
18K	F065298	1	Computer Hardware Item	See Solution 118398 Keyboard, Danish, NLA
18M	F066414	1	Computer Accessory	See Solution 118398 Keyboard, Belgium, NLA
18N	F066415	1	Computer Accessory	See Solution 118398 Keyboard, Czech, NLA

Control Unit and Measuring Device (000150 - )

Нет текстового описания
