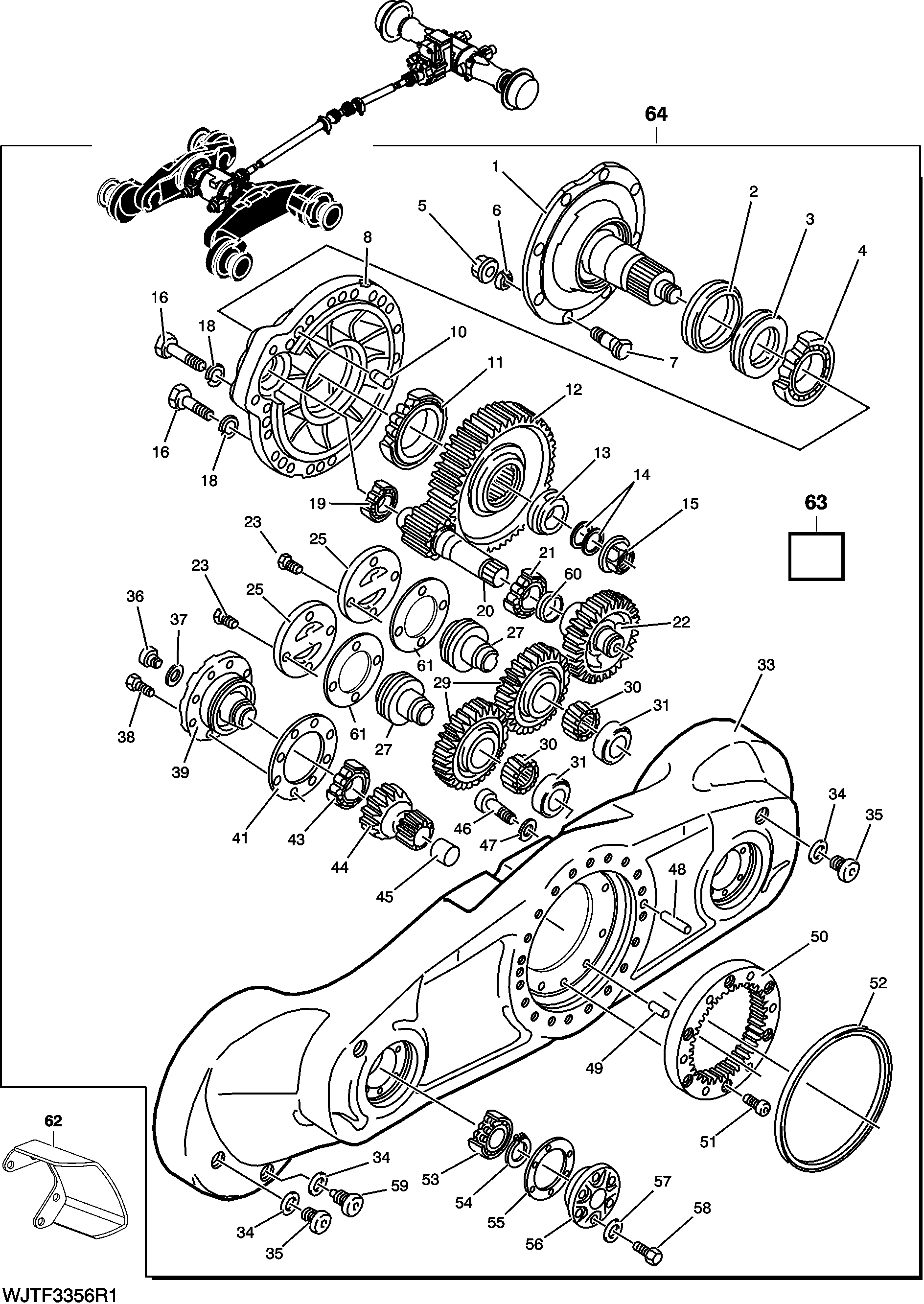

Bogie Assembly, Front Axle (LOK 135)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F066778	4	Hub	-
2	F004721	4	Seal	-
3	F009363	4	Ring	-
4	F009445	4	Bearing	-
5	F004678	32	WHEEL NUT	-
6	F004736	32	Lock Washer	-
7	F025179	32	Wheel Bolt	-
8	F034630	4	Housing	-
10	F025340	28	Pin	-
11	F003810	4	Tapered Roller Bearing	-
12	F064303	4	Gear	-
13	F025342	4	Spacer	-
14	F055115	1	Shim Kit	-
15	F066779	4	Nut	-
16	F025356	16	Self-Locking Screw	-
17	F025357	60	Self-Locking Screw	-
18	F009376	76	WASHER	-
19	F025361	4	Cylindrical Roller Bearing	-
20	F064304	4	Shaft	-
21	F025361	4	Cylindrical Roller Bearing	-
22	F064305	4	Gear	-
23	F064586	32	SCREW	-
25	F025364	8	CAP	(Sealant Loctite® 518)
27	F025366	8	Shaft	(Adhesive Loctite® 639)
29	F025153	8	Gear	-
30	F025155	8	BEARING	-
31	F025156	8	Spacer	-
33	F064716	2	Housing	-
34	F009465	8	Sealing Ring	-
35	F009438	4	Plug	-
36	F009439	2	Plug	-
37	F009463	2	Seal	-
38	F025159	16	Self-Locking Screw	-
39	F070744	2	Cap	-
43	F009451	2	Bearing	-
44	F064308	2	Gear	-
45	F025324	2	Bolt	-
46	F025167	40	SCREW	-
47	F025168	12	Washer	-
48	F035794	4	Dowel Pin	-
49	F025340	8	Pin	-
50	F025169	2	Gear	-
51	F025170	12	Self-Locking Screw	-
52	F045343	2	Seal	-
53	F025175	4	BEARING	-
54	F025176	4	Snap Ring	-
55	F025177	4	Gasket	-
56	F025178	4	Cap	-
57	F004734	24	Retainer	-
58	19M9639	24	Cap Screw	M10 X 25
59	F010163	4	Plug	-
60	F045344	4	Bushing	-
61	F070979	2	Gasket	-
62	F657527	4	Cover	-
63	F074955	1	Bearing Kit	INCLUDES (2) F009451, (4) F025175, (4) F025176, (4) F025177, (4) F045344, (8) F070979, (8) F025361, (8) F025366,(8) F025155
64	F066353	1	Housing	-

Bogie Assembly, Front Axle (LOK 135)
