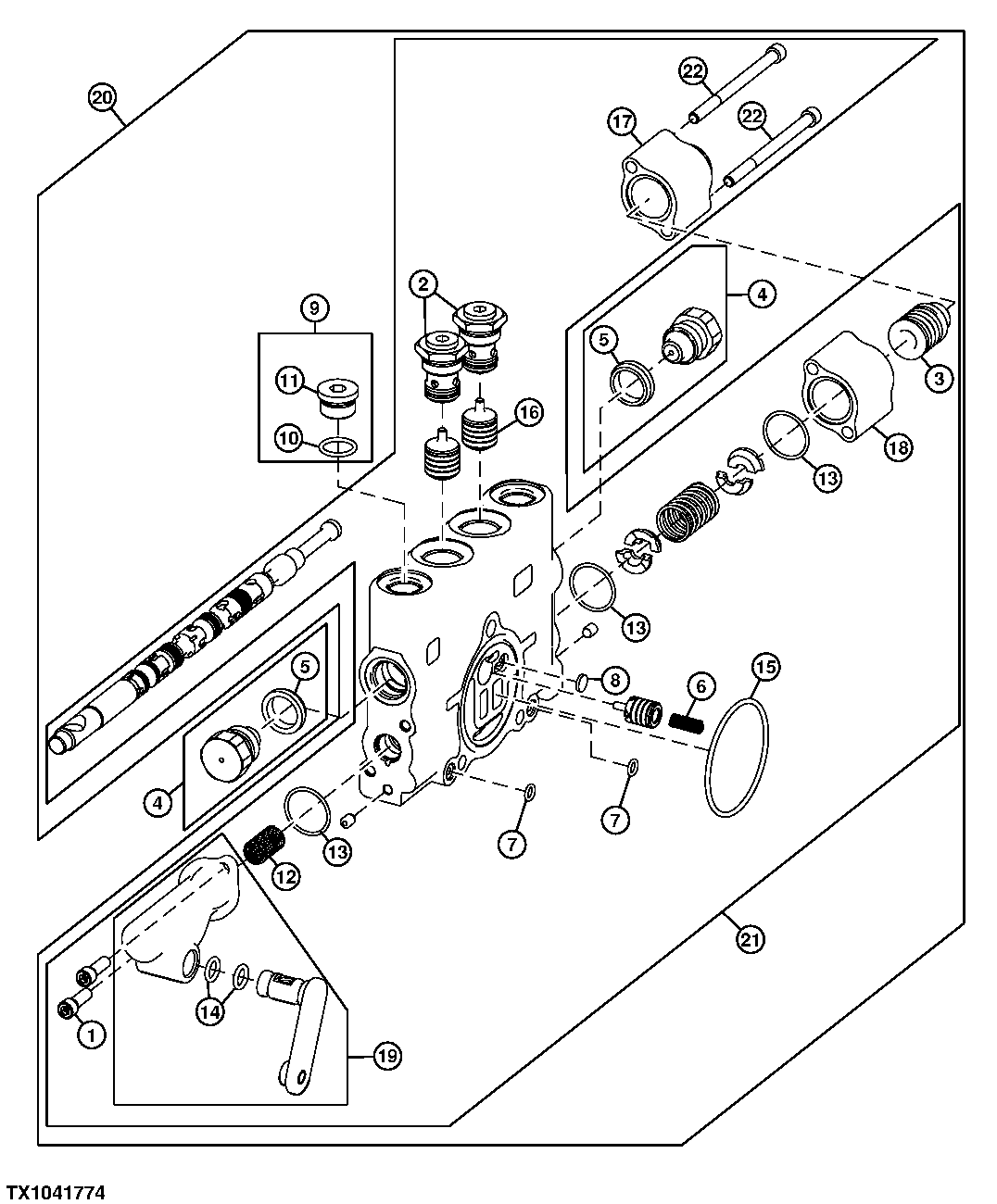

Scarifier and Auxiliary Valve Section W/ Float

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2924	2	Screw	1/4" X 3/4"
2	AT386337	2	Check Valve	SUB FOR AT349056, AT337941 AND AT317328
2	AT196924	1	Seal Kit	Not Illustrated
3	AT317822	1	Detent	-
4	AT78527	2	Fitting Plug	-
4	AT317324	1	Pressure Relief Valve	3100 PSI
5	T183756	1	Seal	-
6	R111238	1	Compression Spring	-
7	R76578	2	O-Ring	-
8	R95493	1	Disk	-
9	RE49624	2	Fitting Plug	-
10	R26375	1	O-Ring	-
11	R39112	1	Fitting	-
12	T190767	1	Spring	-
13	T213022	3	O-Ring	-
14	T213023	2	O-Ring	-
15	T213025	1	O-Ring	-
16	T213034	2	Valve Spool	-
17	T213033	1	Housing	-
18	T213318	1	Housing	-
19	AT348201	1	Actuator	Use With Left Auxiliary Valve Section, SUB FOR AT317304
19	AT348202	1	Actuator	Use With Right Auxiliary Valve Section, SUB FOR AT317305
20	AT317322	1	Control Valve	Left Auxiliary Valve Section With Float
20	AT317319	1	Control Valve	Scarifier Valve Section
20	-	1	Part 25	Mid Mount Scarifier
21	AT319023	1	Control Valve	Right Auxiliary Valve Section With Float
22	T191335	2	Screw	-

Scarifier and Auxiliary Valve Section W/ Float

Нет текстового описания
