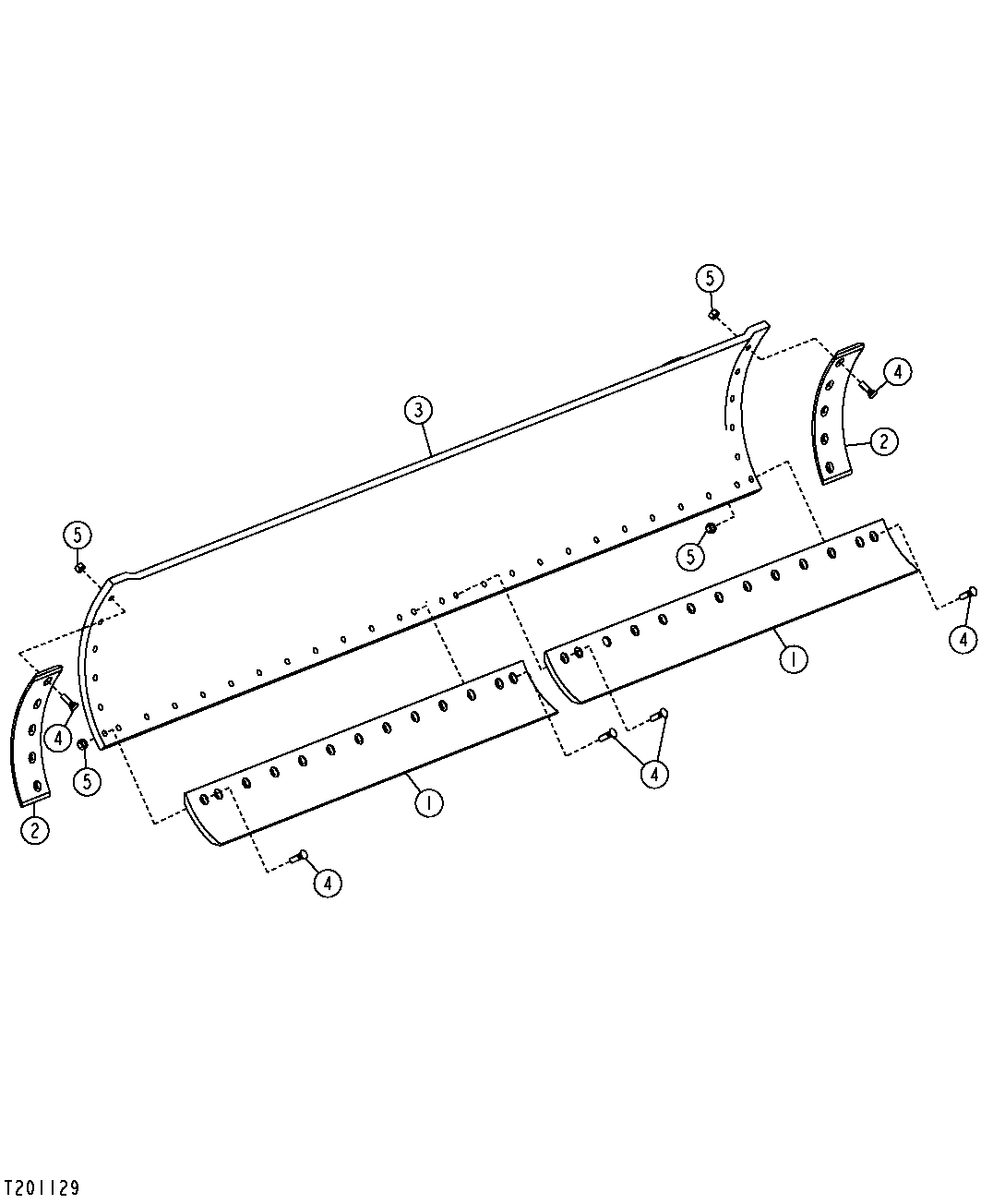

Moldboards and Cutting Edges (Five Hole End Bit)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T66707	1	Dura-Max Cutting Edge	(THROUGH HARDENED DOUBLE BEVEL EDGE) 16 MM X 152 MM X 2 134 MM (5/8" X 6" X 7')
1	T66703	1	Dura-Max Cutting Edge	(THROUGH HARDENED DOUBLE BEVEL EDGE) 19 MM X 203 MM X 1 829 MM (3/4" X 8" X 6')
1	T66704	1	Dura-Max Cutting Edge	(THROUGH HARDENED DOUBLE BEVEL EDGE) 19 MM X 203 MM X 2 134 MM (3/4" X 8" X 7')
1	T74772	1	Dura-Max Cutting Edge	(THROUGH HARDENED DOUBLE BEVEL EDGE) 19 MM X 203 MM X 2 134 MM (3/4" X 8" X 7'), (WITH 3/4 in. HOLES)
1	T147191	1	Dura-Max Cutting Edge	Components Listed on Separate Page
1	T66702	1	Dura-Max Cutting Edge	(THROUGH HARDENED DOUBLE BEVEL EDGE) 16 MM X 152 MM X 1 829 MM (3/4" X 6" X 6')
2	T202876	2	Dura-Max Cutting Edge	-
2	T218922	2	Dura-Max Cutting Edge	(USED ON 14FT MOLDBOARD) (REQUIRES 3/4 in. HARDWARE)
3	AT310278	1	Moldboard	25 MM X 3648 MM (1" X 12' X 27")
3	AT340640	1	Moldboard	(USE 3/4 in. HARDWARE) 25 MM X 4268 MM (1 in. X 14 ft. X 27 in.)
3	AT303301	1	Moldboard	25 MM X 4268 MM (1" X 14' X 27")
3	AT303296	1	Moldboard	25 MM X 3963 MM (1" X 13' X 27")
3	AT303282	1	Moldboard	22 MM X 4268 MM (7/8" X 14' X 24")
3	AT303240	1	Moldboard	22 MM X 3648 MM (7/8" X 12' X 24")
4	09H1759	40	Bolt	5/8" X 2-1/4", (W/ 14 ft. MOLDBOARD)
4	09H1759	38	Bolt	5/8" X 2-1/4", (W/ 13 ft. MOLDBOARD)
4	09H1759	36	Bolt	5/8" X 2-1/4", (W/ 12 ft. MOLDBOARD)
4	T70286	40	Bolt	19.050 X 63.500 mm (3/4" X 2-1/2"), W/14 FT MOLDBOARD
5	14H1095	40	Nut	5/8", (W/ 14 ft. MOLDBOARD), (SUB FOR 14H800)
5	14H1095	38	Nut	5/8", (W/ 13 ft. MOLDBOARD), (SUB FOR 14H800)
5	14H1095	36	Nut	5/8", (W/ 12 ft. MOLDBOARD), (SUB FOR 14H800)
5	14H1092	40	Nut	3/4", (W/ 14 FT MOLDBOARD)

Moldboards and Cutting Edges (Five Hole End Bit)
